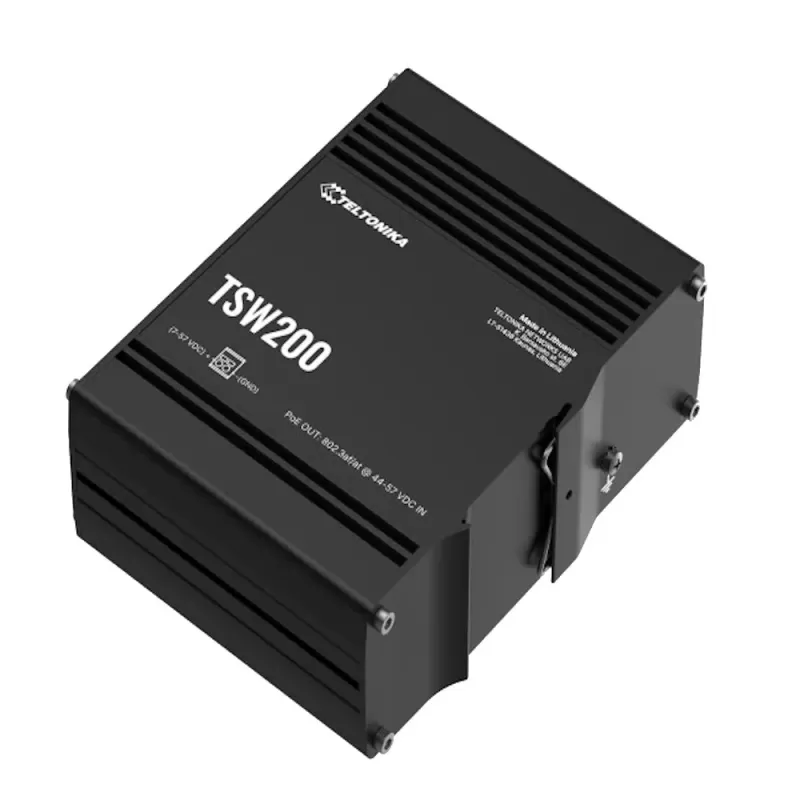

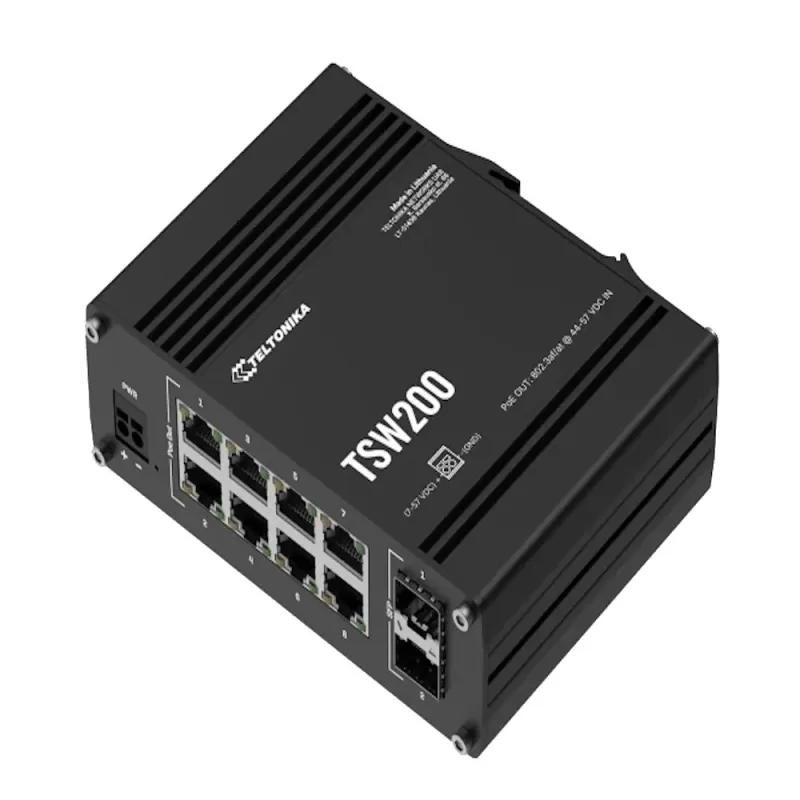

Switch Teltonika POE+ TSW200

The Teltonika TSW200 is an unmanaged industrial switch with eight Gigabit Ethernet ports and two SFP ports for fiber optic connections. It includes eight PoE+ ports (802.3af/at) with a total power budget of 240W, 20Gbps bandwidth, and a rugged aluminum housing. Especially suited for security cameras, IoT, industry, and smart projects.

• 8× Gigabit Ethernet ports (10/100/1000Mbps, Auto MDI/MDIX)
• 2× SFP ports for fiber optic communication
• 8× PoE+ ports (802.3af/at) with up to 30W per port, total budget 240W
• Non: blocking bandwidth – 20Gbps
• Jumbo Frames support up to 9216 bytes
• MAC table – up to 2K entries
• Packet Buffer – 128KB
• Industrial protocol – Profinet Class A (on dedicated models)
• Operating voltage – 7–57V DC, PoE Out range: 44–57V DC
• Power consumption – Idle: 1.81W / Max: 5.5W / Max with PoE: 245.5W
• Indicators – 1 power LED, 16 network activity LEDs, 2 SFP LEDs
• Structure – rugged aluminum housing, IP30 rating
• Installation options – built-in DIN rail, wall, flat surface (additional kit required)
• Operating temperature range – -40°C to +75°C

• Ports – 8× RJ45 Gigabit Ethernet (PoE+), 2× SFP
• PoE – 802.3af/at, up to 30W per port, 240W total budget
• Bandwidth – 20Gbps (Non-blocking)
• Packet Buffer – 128KB
• MAC Table – 2K
• Jumbo Frame – 9216B
• Power Input – 7–57V DC (2-pin industrial connector)
• Power Consumption – Idle: 1.81W / Max: 5.5W / Full PoE: 245.5W
• Dimensions – 132 × 44.2 × 95.1 mm
• Weight – 517g
• Casing – rugged aluminum, IP30 rating
• Operating Temp – -40°C to +75°C
• Humidity – 5%–95% non-condensing
• Warranty: two years

Package includes:

• Teltonika TSW200 switch
• Quick start guide
