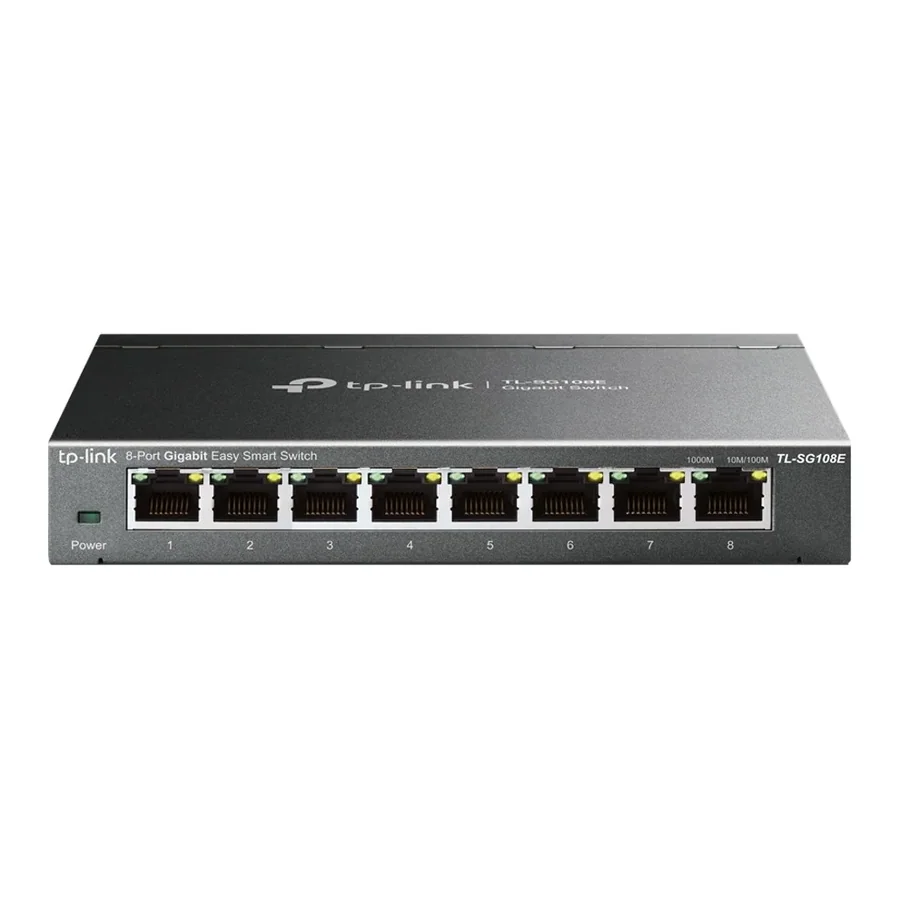

| Revew | TP-Link TL-SG108E 8-Port Gigabit Easy Smart SwitchThe TP-Link TL-SG108E is an 8-port Gigabit Easy Smart switch for small businesses, home offices and networks that need more control than a basic unmanaged switch. It works right out of the box as a Plug and Play device, and it can also be managed through a web interface or a Windows management utility. The switch supports VLANs, QoS traffic prioritization, IGMP Snooping, port mirroring, loop prevention and cable diagnostics. Its fanless design is completely silent, and maximum power consumption is only 3.68W.
Key features- 8 Gigabit ports - 8 x 10/100/1000Mbps RJ45 ports with Auto-Negotiation and Auto MDI/MDIX, 16Gbps switching capacity and 11.9Mpps forwarding rate.
- Easy Smart management - Configuration through a web interface or a PC utility, with instant Plug and Play operation when no setup is needed.
- VLAN and QoS - Up to 32 simultaneous VLANs, port-based, 802.1p or DSCP priority, four priority queues, rate limit and storm control.
- L2 tools for monitoring and diagnostics - IGMP Snooping, port mirroring, static link aggregation, loop prevention and cable diagnostics.
- Silent and efficient - Passive fanless cooling, 3.68W maximum consumption and a compact metal casing for desktop or wall mounting.
Specifications| Manufacturer | TP-Link | | Model | TL-SG108E | | Type | Easy Smart switch | | Ports | 8 x RJ45 10/100/1000Mbps, Auto-Negotiation, Auto MDI/MDIX | | Standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p | | Switching capacity | 16Gbps | | Packet forwarding rate | 11.9Mpps | | MAC address table | 4K | | Packet buffer | 1.5Mb | | Jumbo frame | 16KB | | VLAN | Up to 32 VLANs (out of 4K IDs), MTU/Port/Tag VLAN | | QoS | Port-based / 802.1p / DSCP, 4 priority queues, rate limit, storm control | | L2 features | IGMP Snooping V1/V2/V3, port mirroring, static link aggregation, loop prevention, cable diagnostics | | Transmission method | Store-and-Forward | | Cooling | Fanless | | Power supply | External adapter 5VDC/0.6A | | Max power consumption | 3.68W | | Max heat dissipation | 12.55 BTU/h | | Dimensions | 158 x 101 x 25 mm | | Operating temperature | 0°C to 40°C |
In the box- TL-SG108E switch
- Power adapter
- Installation guide
- Rubber feet
|
