Router Teltonika RUT206 LTE Cat 4 RUT206010000 Color:black

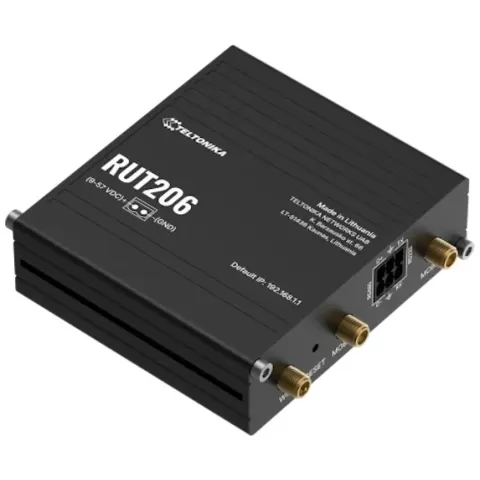

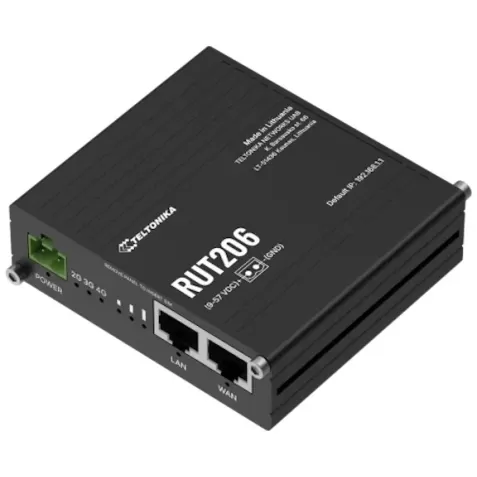

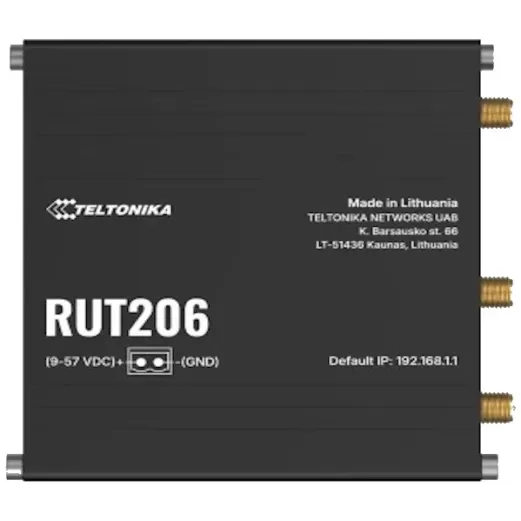

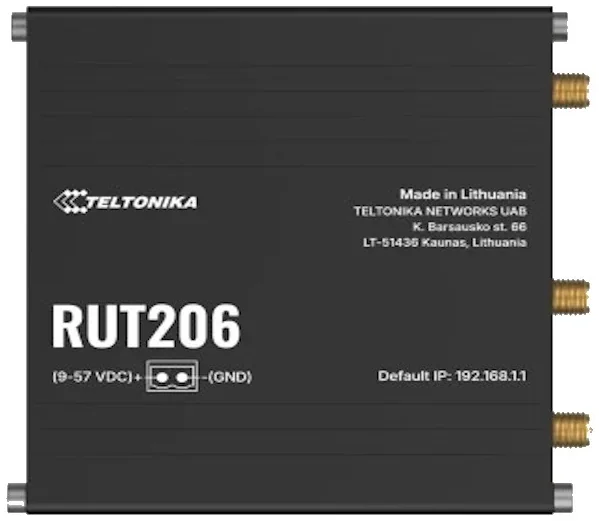

Teltonika RUT206 LTE Cat 4 Industrial Cellular Router

The Teltonika RUT206 is a compact industrial 4G router for IoT and M2M applications that connects controllers, meters and remote systems to the internet over the cellular network. It supports LTE Cat 4 with downloads of up to 150Mbps, two SIM slots with automatic switching, and Wi-Fi 4 for up to 50 users.

The router offers RS232 and RS485 serial interfaces, two Ethernet ports, an internal microSD slot and a wide 9-57V DC input, and it can also be powered by PoE through the LAN port. RutOS and Teltonika RMS provide remote management, VPN and industrial protocols. A power supply and antennas are not included in the package.

Key features

• 4G LTE Cat 4 with two SIM cards - Up to 150Mbps down and 50Mbps up, with automatic switching between the two SIM cards on weak signal, data limit, roaming or connection failure.

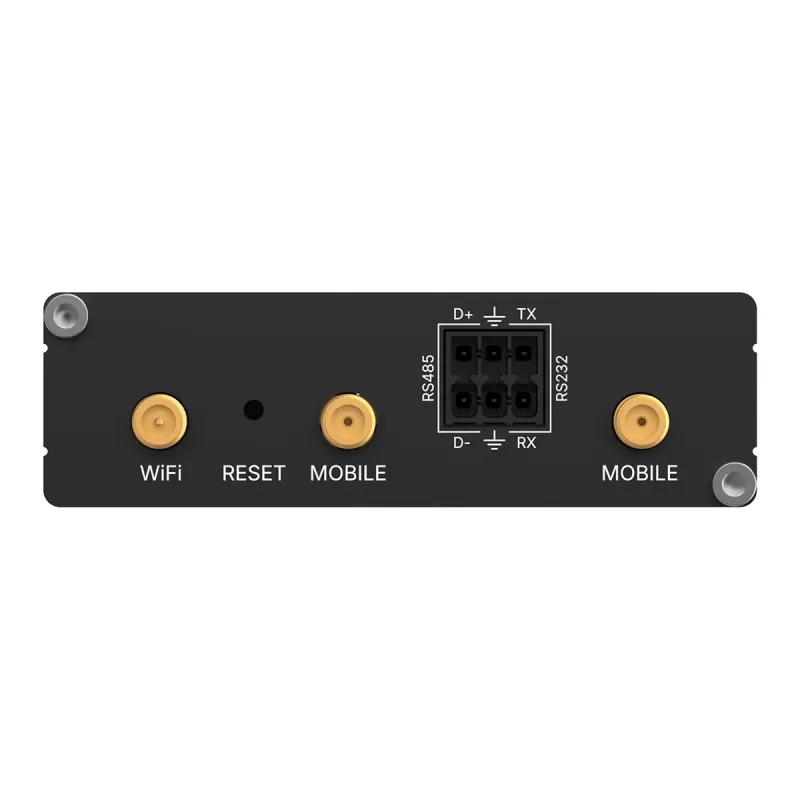

• RS232 and RS485 for industrial equipment - A 6-pin terminal block with RS232 and RS485 interfaces, plus MODBUS RTU/TCP, DNP3, BACnet, OPC UA and DLMS support for controllers and meters.
• Flexible power and PoE - A 9-57V DC input with reverse polarity and surge protection, active PoE 802.3af Class 0 and passive PoE 16-57V on the LAN port. Maximum power consumption is below 3.5W.
• VPN and security - OpenVPN, IPsec, WireGuard, L2TP, PPTP, GRE, DMVPN, SSTP, ZeroTier and Tinc, together with a firewall, VLANs, DDoS prevention and DNS over HTTPS.
• Remote management with RutOS and RMS - Web UI, SSH, SNMP, TR-069, MQTT and JSON-RPC, plus central management of many routers through Teltonika RMS.
• Rugged aluminum housing - An anodized aluminum housing measuring 83 x 25 x 83 mm and weighing 132 g, rated IP30, with an operating range of -40°C to 75°C.

Specifications

In the box

• RUT206 router
• 2-pin terminal block
• 2x3-pin connector
• Hex key
• SIM adapter kit
• Quick start guide
