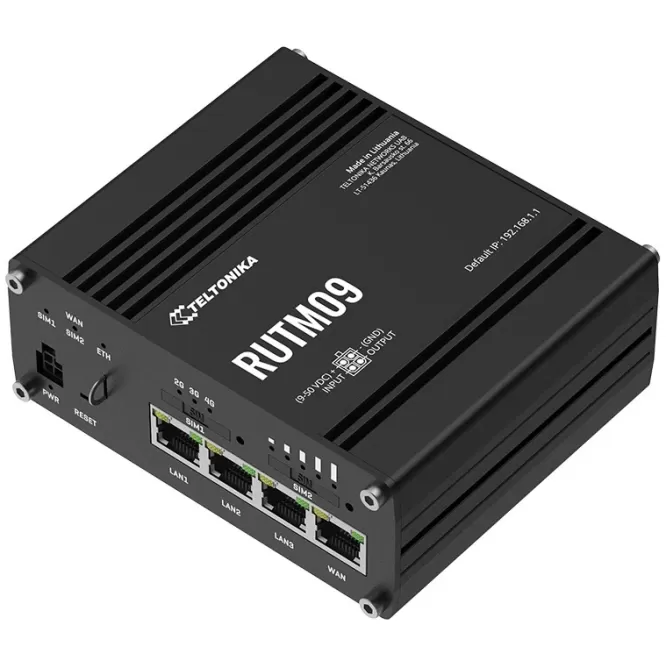

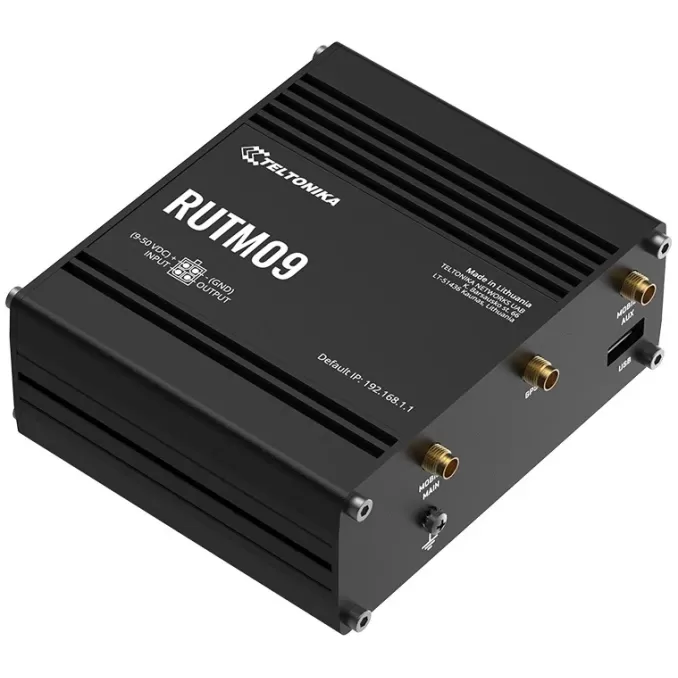

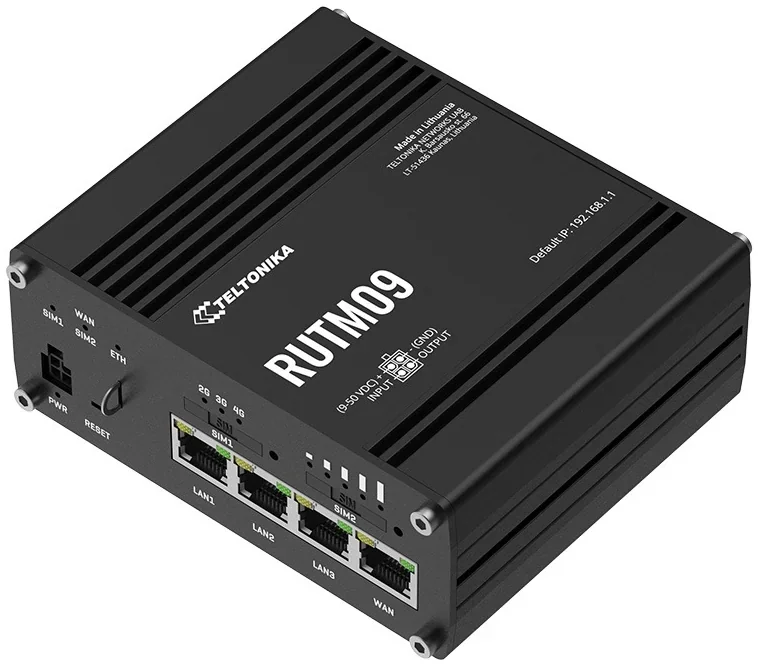

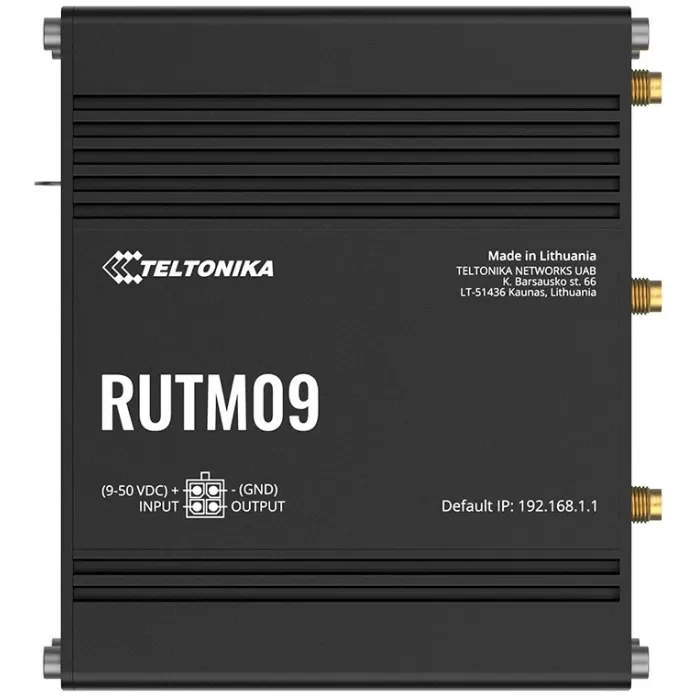

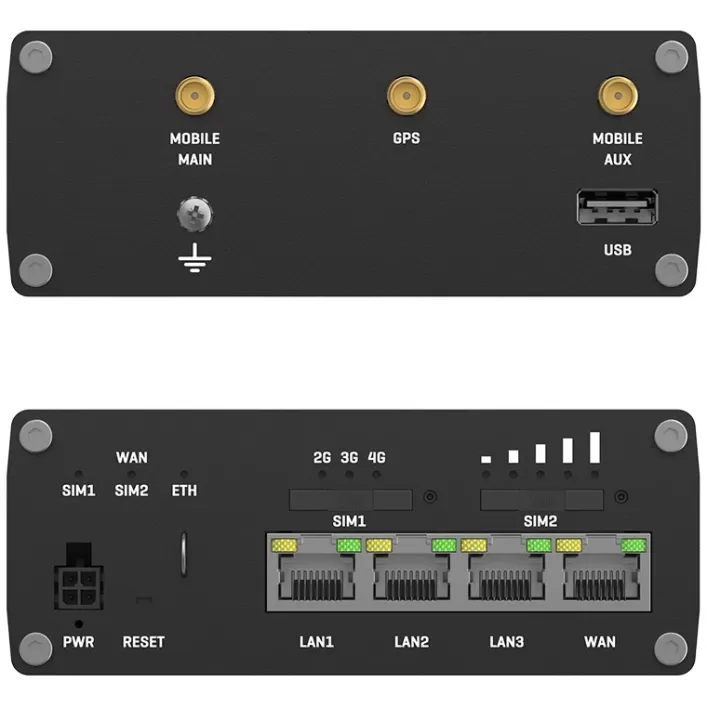

| Revew | Teltonika RUTM09 4G LTE Cat 6 Industrial Cellular RouterThe Teltonika RUTM09 is a rugged industrial cellular router that delivers LTE Cat 6 with carrier aggregation at up to 300Mbps down and 50Mbps up, with 3G fallback. Two SIM slots switch automatically to the other operator on weak signal, data limit, roaming, network loss or connection failure. Alongside cellular it offers four Gigabit Ethernet ports (one WAN and three LAN), a USB port, a digital input and output and a GNSS receiver for location and time synchronisation. RutOS provides VPN, a firewall and IoT protocols such as Modbus, MQTT, OPC UA and DNP3, with remote management through RMS, and the anodised aluminium housing operates from -40°C to 75°C.
Key features- 4G LTE Cat 6 - Up to 300Mbps down and 50Mbps up with carrier aggregation, plus 3G fallback up to 42Mbps.
- Dual SIM with failover - Two Mini SIM slots that switch automatically on signal strength, data limit, roaming or connection failure, with idle protection so the inactive card uses no data.
- Four Gigabit ports - One WAN and three LAN ports at 10/100/1000Mbps, with VLAN support, load balancing and failover between wired and mobile links.
- GNSS and location - GPS, GLONASS, BeiDou, Galileo and QZSS support, NMEA 0183 output and geofencing for tracking and time sync.
- VPN and IoT protocols - OpenVPN, IPsec, WireGuard, GRE, L2TP, DMVPN, SSTP, ZeroTier, Tinc and Tailscale, together with Modbus, MQTT, OPC UA, DNP3, DLMS and data to server.
- Industrial build and remote management - IP30 aluminium housing, 9-50V DC or passive PoE power, and management via RMS, Web UI, SNMP, TR-069 and JSON-RPC.
Specifications| Manufacturer | Teltonika | | Model | RUTM09 | | Part number | RUTM09000000 (EU PSU) | | Cellular | 4G LTE Cat 6 (up to 300/50Mbps), 3G (up to 42/5.76Mbps) | | LTE bands | FDD: B1, B3, B5, B7, B8, B20, B28, B32; TDD: B38, B40, B41 | | 3G bands | B1, B3, B5, B8 | | SIM | 2 x Mini SIM (2FF), automatic switching | | Ethernet | 1 x WAN + 3 x LAN, 10/100/1000Mbps | | Wi-Fi | No | | USB | 1 x USB-A 2.0 | | I/O | Digital input (0-6V low, 8-50V high), open collector output up to 50V/300mA | | GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS; NMEA 0183 | | CPU and memory | MediaTek dual-core 880MHz, 256MB DDR3, 16MB NOR + 256MB NAND | | Operating system | RutOS (OpenWrt based) | | Antennas | 2 x SMA for mobile, 1 x SMA for GNSS | | Power | 9-50V DC via 4-pin socket, passive PoE on LAN1 (not 802.3af/at/bt compatible) | | Power consumption | 2.65W idle, 9.82W max | | Housing and mounting | Anodised aluminium, IP30; DIN rail, wall or flat surface (additional kit) | | Operating environment | -40°C to 75°C, 10%-90% humidity non-condensing | | Dimensions and weight | 115 x 44.2 x 95.1 mm, 457 g |
In the box- RUTM09 router
- 18W power supply
- 2 swivel mobile antennas (SMA)
- Adhesive GNSS antenna (SMA, 3 m cable)
- Ethernet cable (1.5 m)
- SIM adapter kit
- Quick start guide
|
