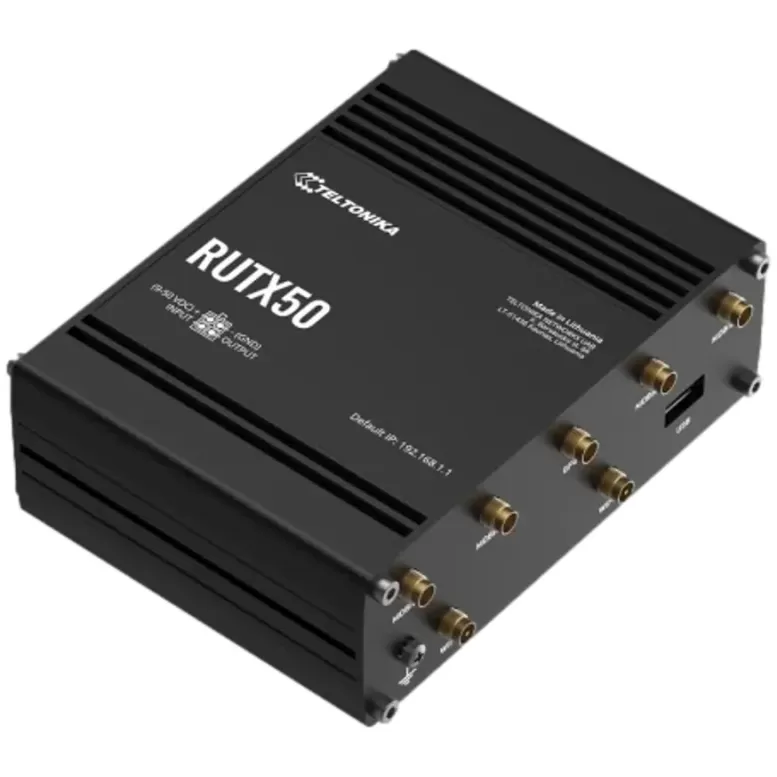

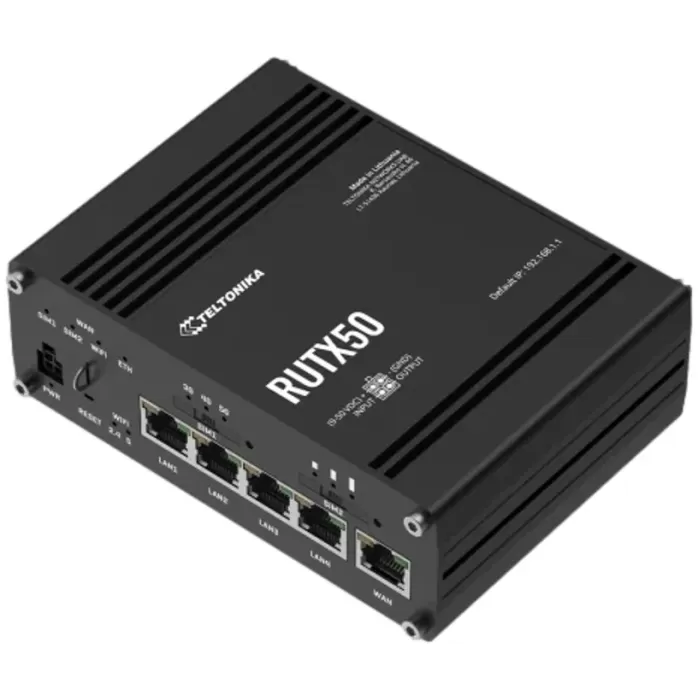

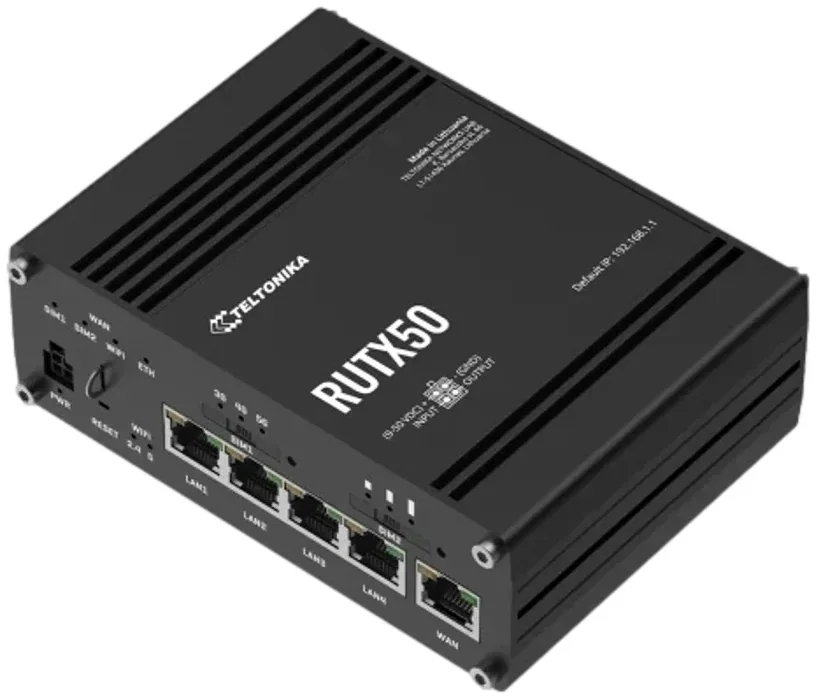

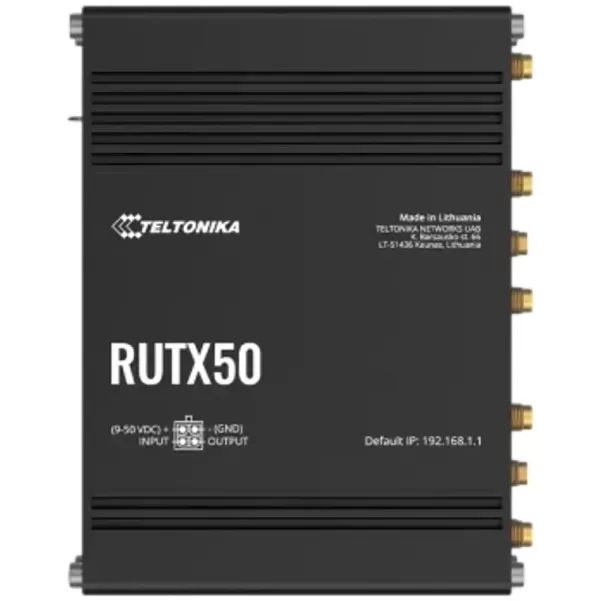

| Revew | Teltonika RUTX50 5G Industrial Cellular RouterThe Teltonika RUTX50 is an industrial cellular router with a 5G modem, designed for remote sites, industry, transport, business internet backup and IoT networks. The modem supports 5G Sub-6GHz in SA and NSA modes with download speeds of up to 3.3Gbps, and 4G LTE Cat 20 of up to 2Gbps where 5G is not available. Alongside cellular, the router offers two SIM slots with automatic switching, dual-band Wi-Fi 5 with MU-MIMO, one WAN and four LAN Gigabit ports, a GNSS receiver and a USB port. RutOS provides advanced VPN, a firewall, industrial protocols and remote management through RMS.
Key features- Fast 5G with LTE fallback - 5G Sub-6GHz SA/NSA with up to 3.3Gbps download (4x4 MIMO) and up to 900Mbps upload, plus LTE Cat 20 up to 2Gbps where there is no 5G coverage.
- Dual SIM - Two Mini SIM slots with automatic switching on weak signal, data limit, roaming, no network or connection failure.

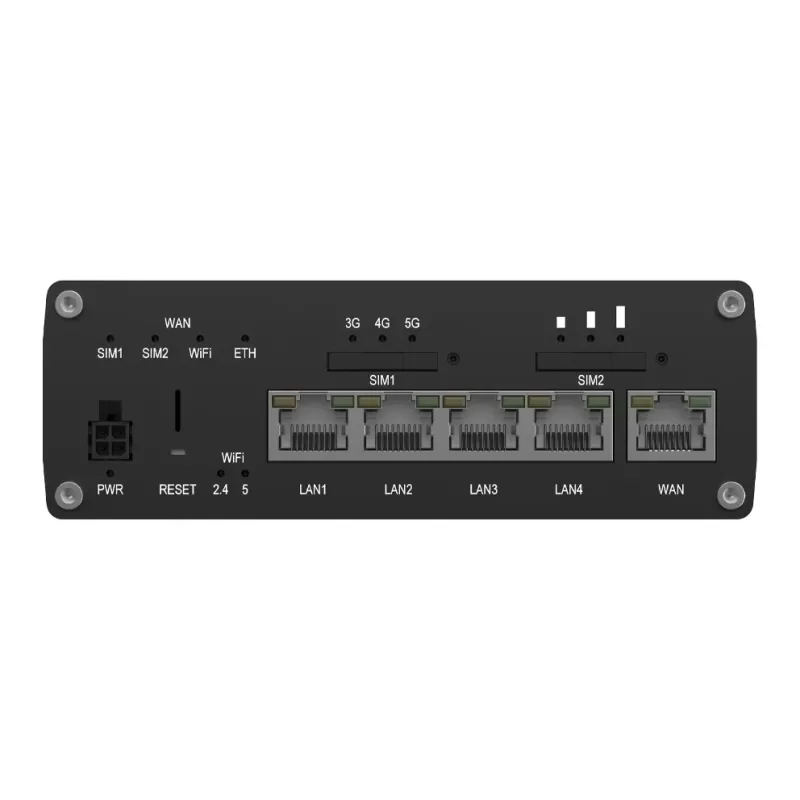

- Wi-Fi 5 and 5 Gigabit ports - Dual-band 802.11ac Wave 2 with MU-MIMO, up to 867Mbps and 150 simultaneous connections, plus one WAN and four LAN 10/100/1000Mbps ports.
- GNSS and USB - A GPS, GLONASS, BeiDou, Galileo and QZSS receiver with geofencing, and a USB 2.0 port for external storage, a printer or a serial adapter.
- Security and VPN - Firewall, DDoS prevention, VLAN, web filter and WPA3, with OpenVPN, IPsec, WireGuard, GRE, DMVPN, ZeroTier and Tailscale support.
- Built for industrial use - Aluminium IP30 housing, operation from -40°C to 75°C, wide 9-50VDC input or passive PoE, and protocols such as Modbus, MQTT, OPC UA and DNP3.
Specifications| Manufacturer | Teltonika | | Model | RUTX50 | | Cellular | 5G Sub-6GHz SA/NSA up to 3.3Gbps DL / 900Mbps UL; 4G LTE Cat 20 up to 2Gbps / 200Mbps; 3G up to 42Mbps | | SIM | 2 x Mini SIM (2FF) | | Ethernet | 1 x WAN + 4 x LAN, 10/100/1000Mbps | | Wi-Fi | 802.11ac Wave 2, dual band, MU-MIMO, up to 867Mbps, up to 150 users | | GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS | | USB | 1 x USB 2.0 | | I/O | 1 digital input, 1 digital output (max 30V, 300mA) | | CPU and memory | Quad-core ARM Cortex A7 717MHz, 256MB RAM, 256MB flash | | Operating system | RutOS | | VPN | OpenVPN, IPsec, WireGuard, GRE, PPTP, L2TP, DMVPN, SSTP, ZeroTier, Tinc, Tailscale | | Management | Web UI, RMS, SSH, SNMP, TR-069, MQTT, JSON-RPC | | Antenna connectors | 4 x SMA mobile, 2 x RP-SMA Wi-Fi, 1 x SMA GNSS | | Power | 9-50VDC, 4-pin industrial connector, passive PoE on LAN1 | | Power consumption | Idle under 4W, max under 16.5W | | Operating temperature | -40°C to 75°C | | Housing | Aluminium, IP30 | | Dimensions and weight | 132 x 44.2 x 95.1 mm, 533 g |
In the box- Teltonika RUTX50 router
- 18W power supply
- 4 x mobile antennas (SMA)
- 2 x magnetic Wi-Fi antennas (RP-SMA, 1.5 m cable)
- 1 x adhesive GNSS antenna (SMA, 3 m cable)
- Ethernet cable 1.5 m
- SIM adapter kit
- Quick start guide
|
