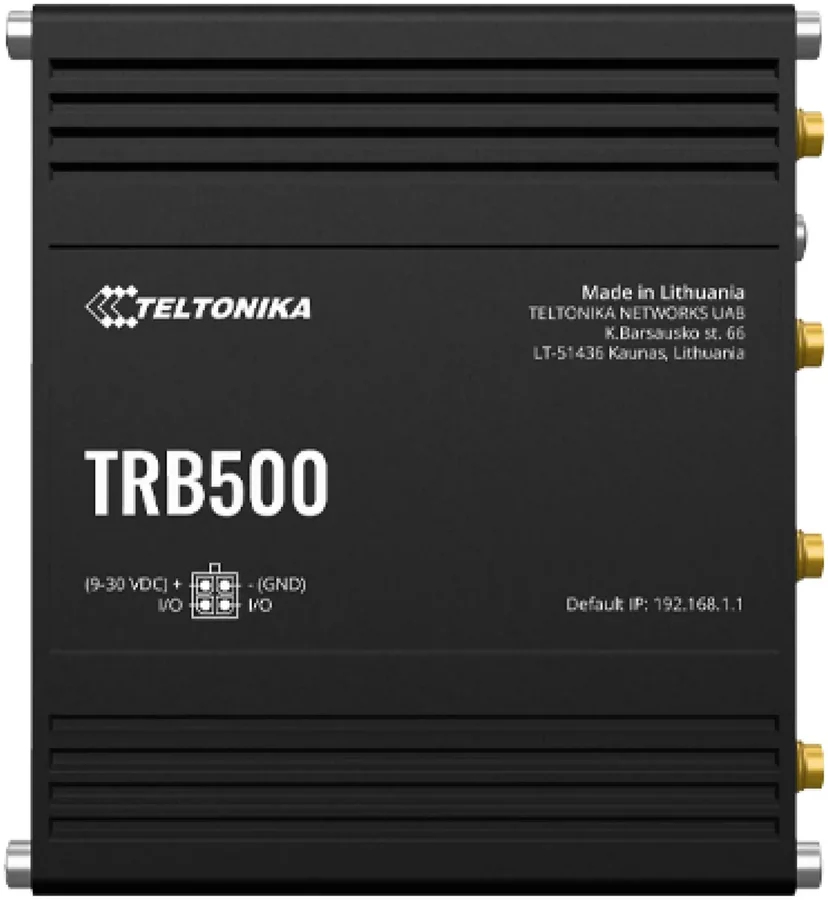

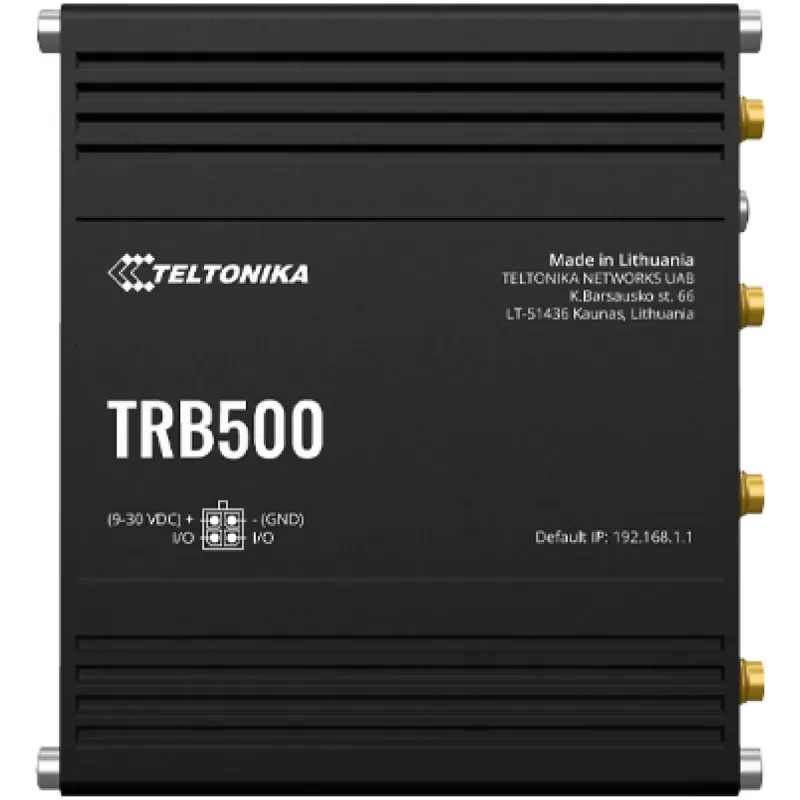

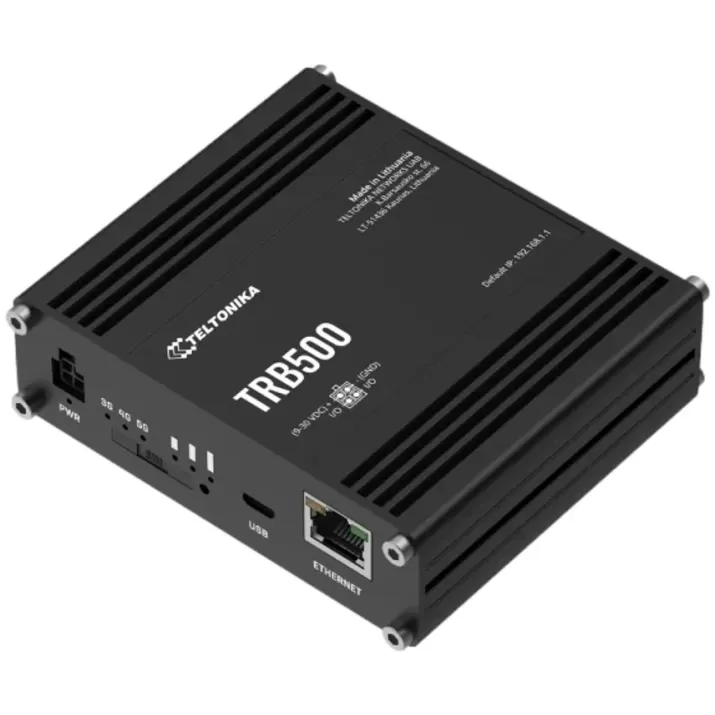

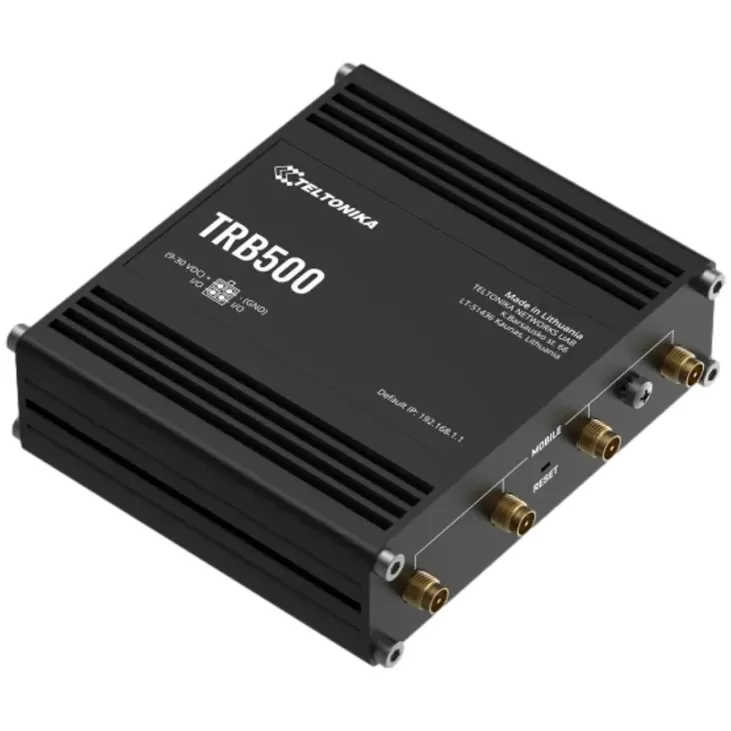

| Revew | Industrial Cellular Gateway Teltonika TRB500 5GThe Teltonika TRB500 is an industrial cellular gateway with a Sub-6GHz 5G modem that supports SA and NSA networks and download speeds of up to 3.3Gbps. A single Gigabit Ethernet port connects a computer, router or industrial equipment, and the gateway falls back to 4G LTE Cat 20 or 3G when needed. It runs RutOS, based on OpenWrt, with a firewall, many VPN types and industrial protocols such as Modbus, MQTT, OPC UA and DNP3. The aluminium housing works from -40°C to 75°C, and the device can be managed remotely through Teltonika RMS.
Key features- Fast 5G - Sub-6GHz 5G modem with 4x4 MIMO, up to 3.3Gbps download and 900Mbps upload, with SA and NSA support.
- 4G fallback - LTE Cat 20 up to 2.0Gbps download and 3G as backup, with four SMA antenna connectors.
- Gigabit Ethernet - An RJ45 10/100/1000Mbps port, including a passthrough mode that hands the mobile IP address to the connected device.
- Inputs and outputs - Up to two digital inputs and two digital outputs on the power connector for events and device control.
- Industrial and efficient - IP30 aluminium housing, 9-30VDC input and under 6W of power, for operation from -40°C to 75°C.
- Management and security - RutOS with firewall, OpenVPN, IPsec, WireGuard, Web UI, SNMP and the Teltonika RMS remote management platform.
Specifications| Manufacturer | Teltonika | | Model | TRB500 | | Mobile | 5G Sub-6GHz SA/NSA up to 3.3Gbps DL / 900Mbps UL, 4G LTE Cat 20 up to 2.0Gbps, 3G up to 42Mbps | | 5G bands (Europe and Middle East version) | n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 | | LTE bands | FDD B1/B3/B5/B7/B8/B20/B28/B32, TDD B38/B40/B41/B42/B43 | | Ethernet | 1 x RJ45 10/100/1000Mbps | | I/O | Up to 2 digital inputs and 2 digital outputs | | SIM | 1 x Mini SIM (2FF) | | Antennas | 4 x SMA | | USB | Micro USB (virtual network interface) | | CPU and memory | ARM Cortex-A7 1.5GHz, 256MB RAM, 512MB Flash | | Operating system | RutOS (OpenWrt based) | | Industrial protocols | Modbus, MQTT, OPC UA, DNP3 | | Power input | 9-30VDC, 4-pin connector | | Power consumption | Under 3W idle, up to 6W | | Housing | Aluminium, IP30 | | Dimensions | 100 x 30 x 93.4 mm | | Weight | 241 g | | Operating temperature | -40°C to 75°C | | Mounting | DIN rail, wall or flat surface (separate kit) |
In the box- Teltonika TRB500 gateway
- 9W power supply
- 4 swivel mobile SMA antennas
- Micro-USB cable, 0.8 m
- Ethernet cable
- SIM adapter kit
- Quick Start Guide
|
