Luggar HI-6U-300 black HI-6U-300-B

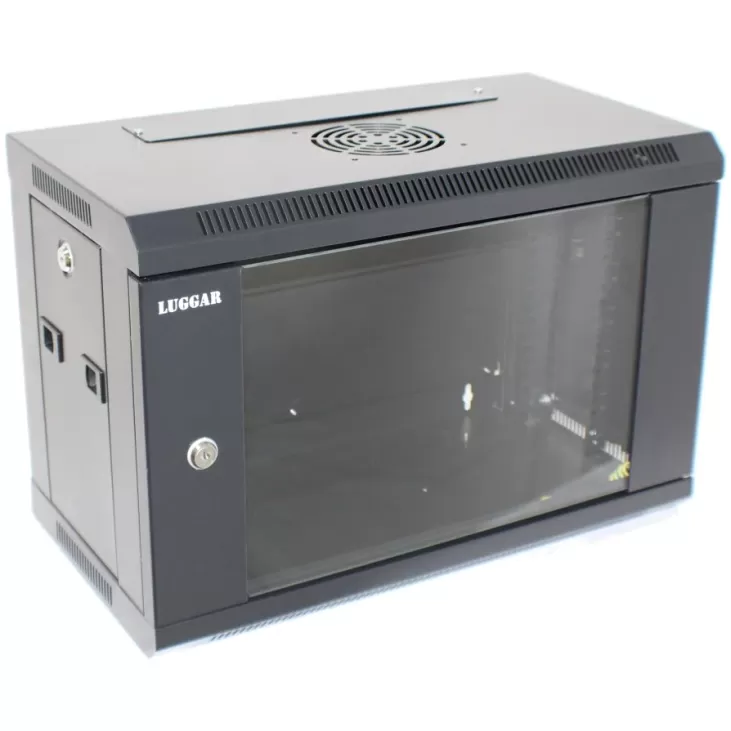

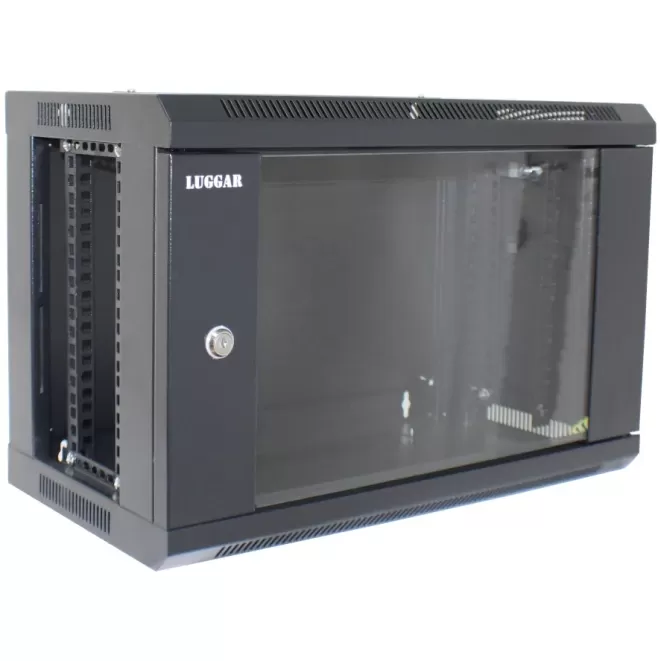

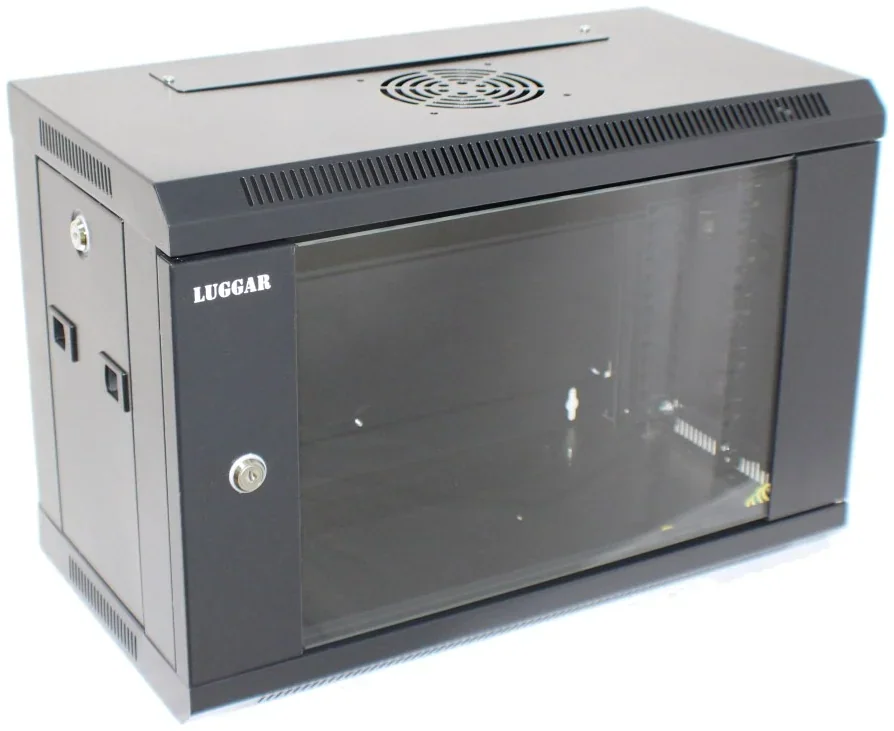

Luggar HI-6U-300 Black Wall Mount Network Cabinet

The Luggar HI-6U-300 is a 19-inch 6U wall mount network cabinet for network equipment, a small server or security systems in an office, a shop or a small comms room. The cabinet measures 550mm wide, 310mm deep and 370mm high.

It is made of SPCC cold-rolled steel, with 2.0mm mounting profiles and other parts 1.2 to 1.5mm thick. The front has a 5mm transparent glass door with a lock and a 130 degree opening angle, and the rear section has a lock and a cable path. The side panels are easily removable, and a 120mm fan can be installed to cool the equipment.

Key features

• 19-inch, 6U - A standard 19-inch frame with 6 rack units for a patch panel, switch, router or recorder in one place.
• Glass door with lock - A 5mm transparent glass door with a lock and reinforced hinges that open up to 130 degrees, so equipment LEDs are visible without opening the cabinet.
• Strong steel - Quality SPCC steel, 2.0mm mounting profiles and other parts 1.2 to 1.5mm thick.
• Easy access to equipment - Removable side panels with plastic fasteners, a rear section with lock and cable path and a heavy duty rear hinge for safe wall mounting.
• Cooling option - One 120 x 120 x 25 mm fan can be installed to remove heat from the equipment inside.
