Panel optical Excel Enbeam 24 Way SC Simplex/LC Duplex 200-952 Color:black

Excel Enbeam 24 Way SC Simplex/LC Duplex Unloaded Fibre Optic Panel

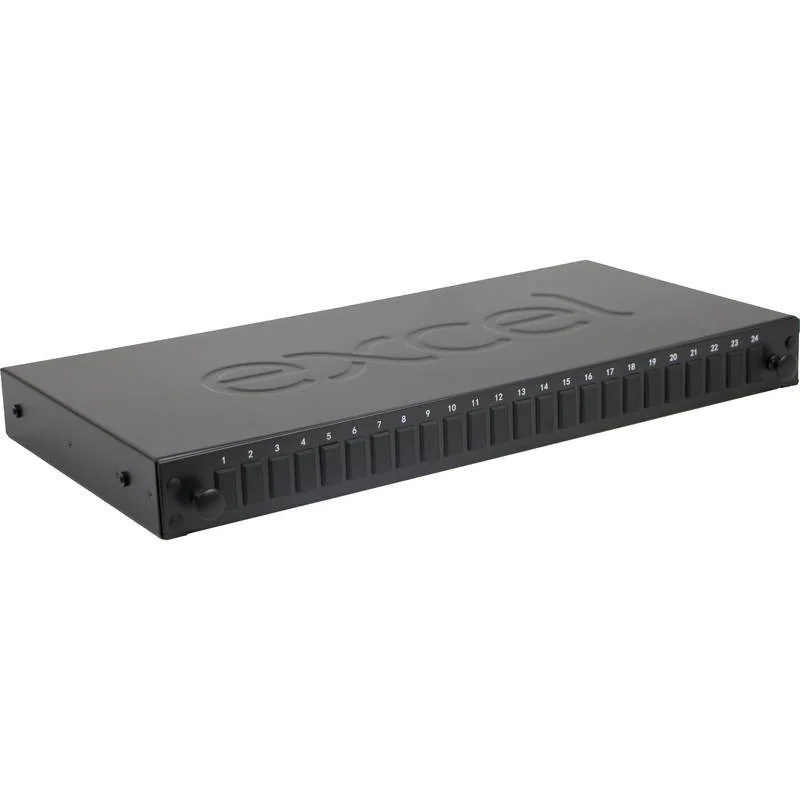

The Excel Enbeam 200-952 is a 1U fibre optic patch panel for 19-inch rack cabinets. It is a sliding drawer, tray style housing suitable for direct termination or splicing, with 24 front cut-outs for SC Simplex or LC Duplex adaptors, so the panel handles up to 48 fibres.

The panel is supplied empty, with no adaptors or pigtails, so you can fit multimode or singlemode adaptors to suit the project. The body is 2mm thick steel with a black powder coat finish, and the pack includes fixing brackets, a cable management kit and two 24-way splice holders.

Key features

• 1U sliding drawer - The tray slides forward on rails, making splicing, fibre routing and maintenance easier without removing the panel from the rack.
• 24 cut-outs, up to 48 fibres - The front takes 24 SC Simplex or LC Duplex adaptors, each LC Duplex adaptor carries two fibres, and port numbering helps identification.
• Unloaded for free choice - The panel comes without adaptors, so you can fit multimode or singlemode adaptors to match the fibre used in the project.
• Thick steel, durable finish - A 2mm cold rolled steel body with a black powder coat finish (RAL 9005) for long-term durability.

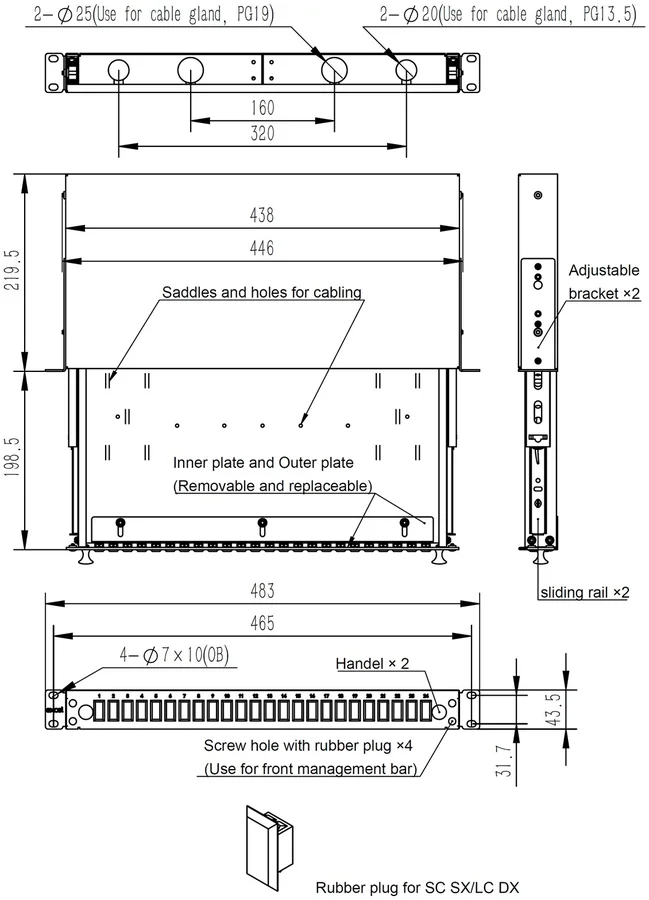

• Rear cable entries - Two 20mm and two 25mm cable entries at the rear, with PG 13.5 and PG 19 cable glands included.
• Complete installation kit - Includes adjustable brackets, cable ties, two 24-position splice holders, label holders and rack cage nuts and screws.

Specifications

In the box

• Excel Enbeam 200-952 panel
• PG 13.5 and PG 19 cable glands
• 7 nylon cable ties and 4 adjustable cable ties
• 2 x 24-position splice holders
• 2 label holders
• 4 mounting twist ties
• Cage nuts and screws pack
