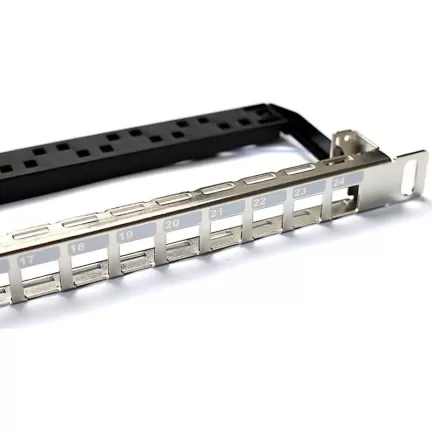

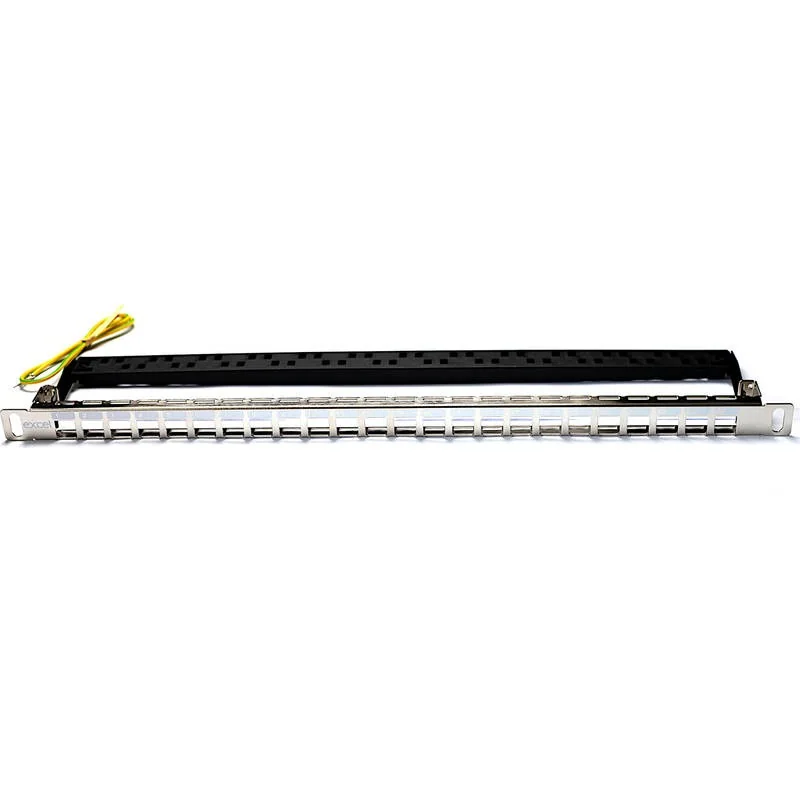

Panel Excel 24 Port 0.5U 100-041 Color:silver

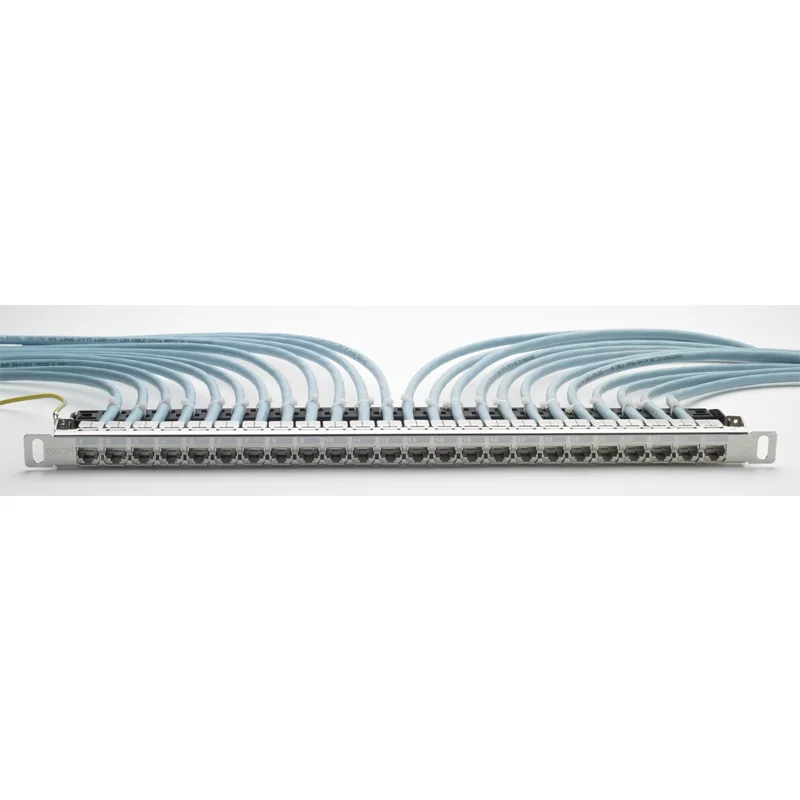

Excel 24 Port 0.5U Unloaded Keystone Patch Panel

The Excel 100-041 is an unloaded keystone patch panel frame for 24 jacks in a single row, only half a rack unit (0.5U) high, for 19-inch cabinets. It takes Excel low profile screened and unscreened toolless keystone jacks and can be partly or fully loaded.

Two panels stacked together give 48 jacks in 1U with all jacks the right way up, without the upside-down bottom row of most 48-port 1U panels. A rear management tray with dedicated cable tie points snaps into place, and an earthing kit and M6 cage nuts are supplied.

Key features

• 24 ports in half a unit - High density in just 0.5U, leaving more rack space for other equipment.
• 48 ports in 1U, no upside-down row - Two panels stacked together give 48 jacks in one unit, all mounted the same way up.
• Single row, easy access - All jacks sit in one row, and any jack can be removed individually without disturbing its neighbours.
• Snap-in cable management tray - A rear tray with purpose-designed cable tie positions locks into place with no tools or fixings.
• Earthing kit included - Suitable for screened and unscreened jacks, with an earthing kit and M6 cage nuts supplied with the frame.

Specifications

In the box

• Excel 100-041 panel frame
• Rear cable management tray
• Earthing kit
• M6 cage nuts set
