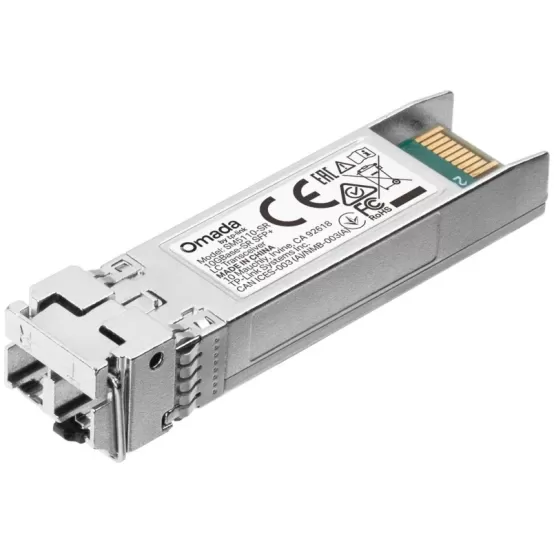

Module SFP+ Omada SM5110-SR 10GBase-SR 850nm (8 ) SM5110-SR(8-pack) Color:silver

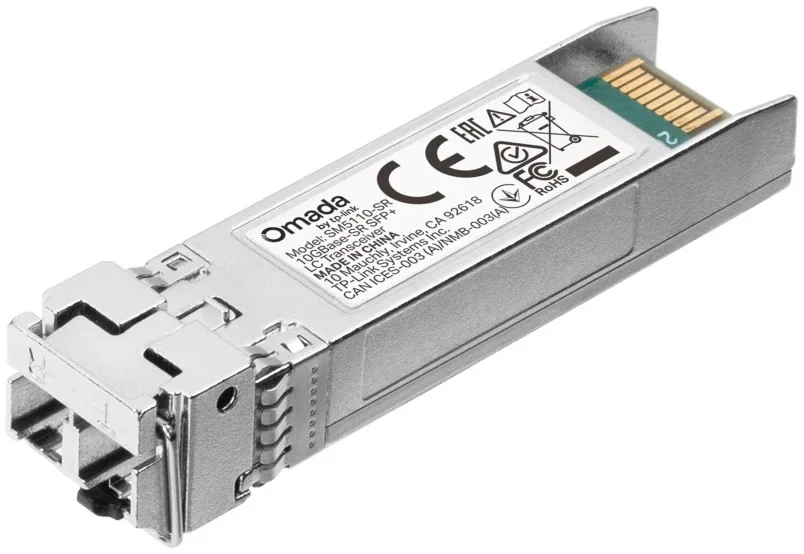

Omada SM5110-SR 10GBase-SR 850nm SFP+ Module (8-Pack)

The Omada SM5110-SR is a 10GBASE-SR SFP+ optical module for short 10Gbps links over multi-mode fiber, between switches in a network cabinet, a server room or across floors of a building. This pack contains 8 identical modules, handy for deploying several links at once or filling a switch with many SFP+ ports.

At 850nm the reach is up to 300 m over 50/125µm (OM3) fiber and up to 33 m over 62.5/125µm fiber. The modules support DDM monitoring and hot swap, comply with SFP+ MSA and suit switches with 10G SFP+ ports such as the SG3428X and SG3428XMP.

Key features

• 8 modules in one pack - Eight identical modules for deploying several 10G links at once.
• 10Gbps over multi-mode fiber - 10GBASE-SR at 850nm, supporting 50/125µm and 62.5/125µm fiber.
• Reach up to 300 m - Up to 300 m over OM3 fiber and up to 33 m over 62.5/125µm fiber, suited to links within a building.
• DDM monitoring - Digital Diagnostic Monitoring per SFF-8472 shows module status data in real time.
• Hot swappable - Insert or remove a module while the switch is running, without network downtime.
• Works with 10G switches - SFP+ MSA compliant and suited to switches with 10G SFP+ ports, such as the SG3428X and SG3428XMP.

Specifications

In the box

• 8 x SM5110-SR SFP+ modules
• Installation guide
