Module SFP28 Omada SM6110-LR 25GBASE-LR 10km SM6110-LR Color:silver

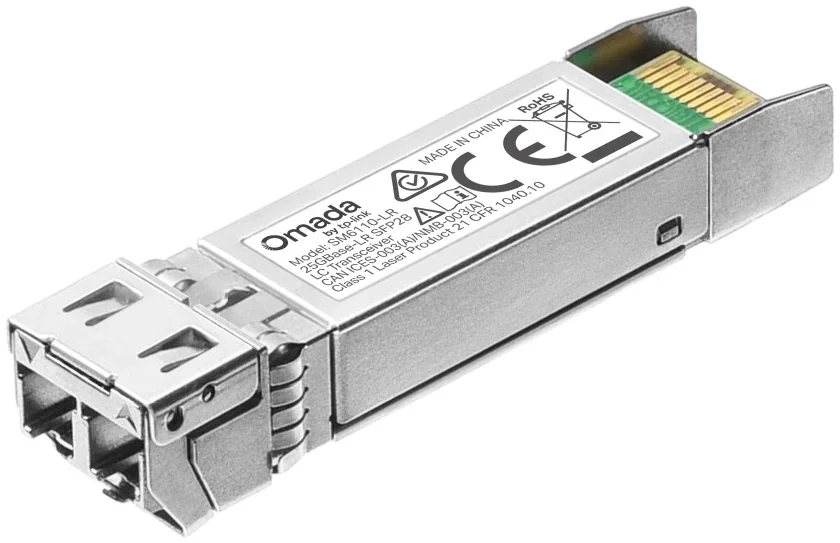

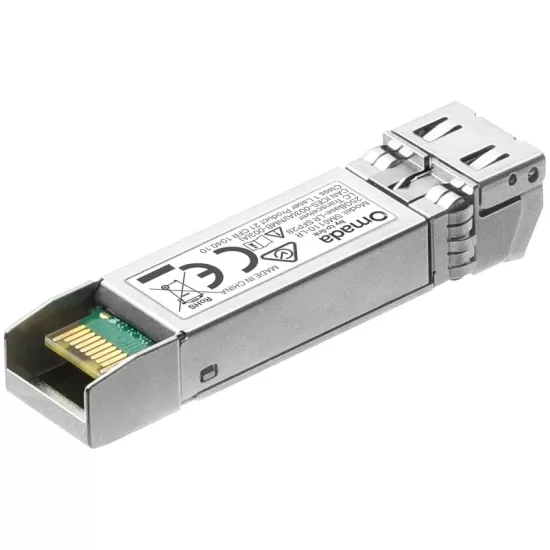

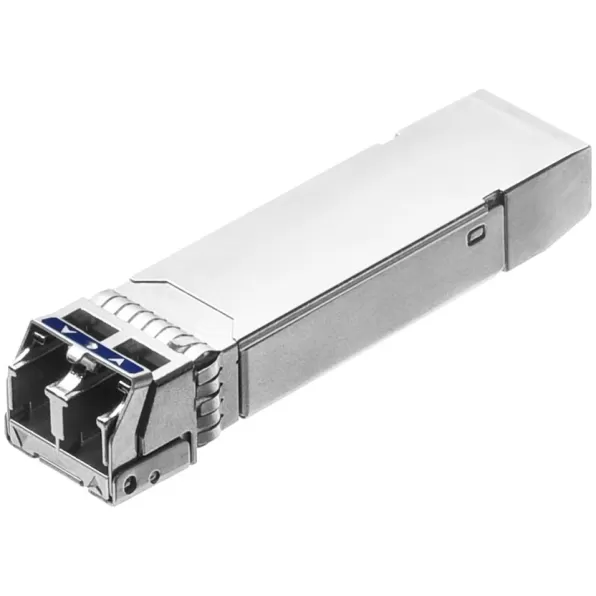

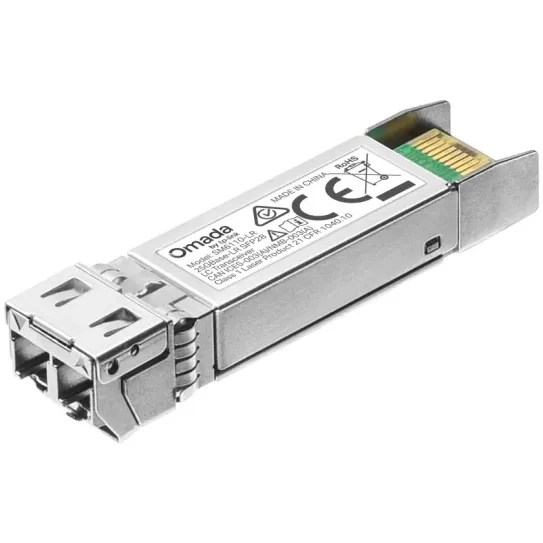

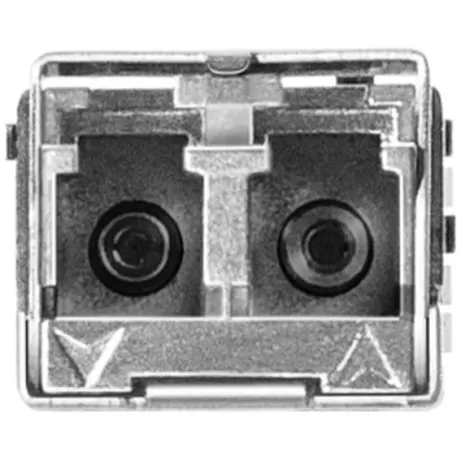

Omada SM6110-LR 25GBASE-LR 10km SFP28 Module

The Omada SM6110-LR is a 25GBASE-LR SFP28 optical module for single-mode fiber links between switches, routers and servers. It runs at two rates, 25.78Gbps and 10.31Gbps, so the same module works on both 25G and 10G links.

With a 1310nm wavelength over 9/125µm fiber, the reach is up to 10 km, enough to link buildings on a campus or nearby sites. The module supports DDM monitoring, is hot swappable and is SFP-MSA compliant, so it fits easily into Omada switches with 10G/25G ports.

Key features

• Dual rate 10G/25G - Supports 25.78Gbps and 10.31Gbps, so one module serves both 25G and 10G links.
• Up to 10 km reach - A 1310nm wavelength over 9/125µm single-mode fiber allows links of up to 10 km.
• DDM monitoring - Digital Diagnostic Monitoring shows temperature, voltage and transmit power in real time.
• Hot swappable - Insert or remove the module while the equipment is running, without powering off the switch.
• Low power consumption - 3.3V supply and a maximum power draw of only 1.2W.
• Standards compliance - Complies with IEEE 802.3ae and 802.3cc, SFF-8402, SFF-8431, SFF-8432 and SFF-8472, and also supports eCPRI and CPRI.

Specifications

In the box

• SM6110-LR module
• Installation guide
