IP Camera Fanvil i10V Color:black

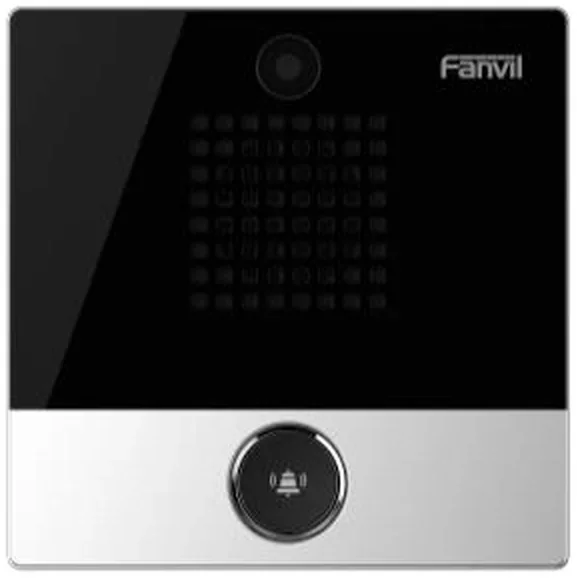

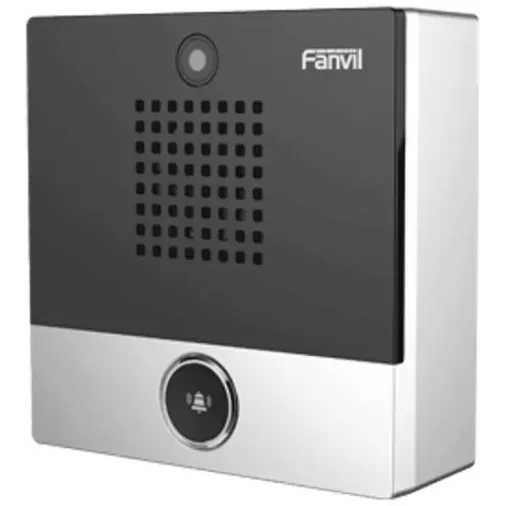

Fanvil i10V SIP Mini Video Intercom

The Fanvil i10V is a mini SIP intercom with a built-in camera, designed for office entrances, meeting rooms, storerooms and internal doors. It connects to the network with a single cable, registers to an IP PBX like any extension and lets you talk to and see the visitor.

A built-in relay lets you open the door from the office phone, and the 88 x 88 mm housing is IP54 rated against dust and water. Setup and management are done through a web interface, and the device works with major SIP platforms.

Key features

• Built-in HD camera - A 1/4-inch 1MP color CMOS sensor records 720P video in H.264, with backlight compensation and an 84.1-degree diagonal viewing angle.
• 2 SIP lines and auto answer - The device registers two SIP accounts, supports auto answer and intercom mode, and works with platforms such as Asterisk, 3CX, Broadsoft, Elastix and Avaya.
• Door opening from the phone - A built-in NC/NO relay (up to DC30V/1A) drives an electric lock, so the door can be opened straight from the extension. There is also one dry-contact input.
• Clear two-way audio - A built-in 1W speaker and acoustic echo cancellation (AEC) deliver clean duplex calls, with G.722 and Opus wideband codecs.
• PoE and simple installation - Powered over the network cable via PoE or from a 12V/1A adapter, wall mounted, with one illuminated speed dial button.
• Durable and remotely managed - IP54 ABS housing that works from -20°C to 50°C, web-based management, firmware upgrades and auto-provisioning.
