SIP Fanvil i10D Color:black silver

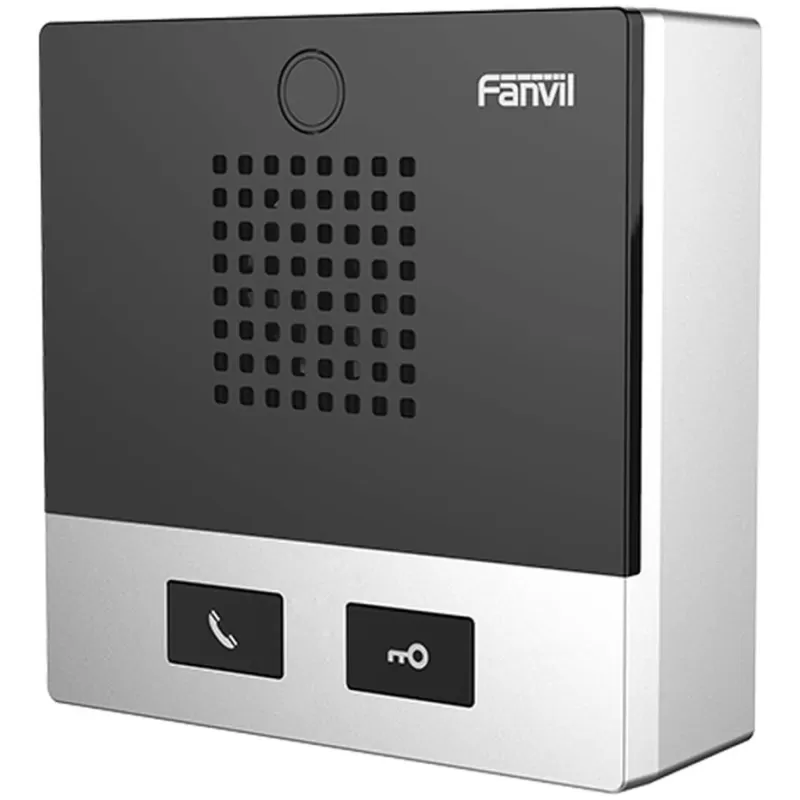

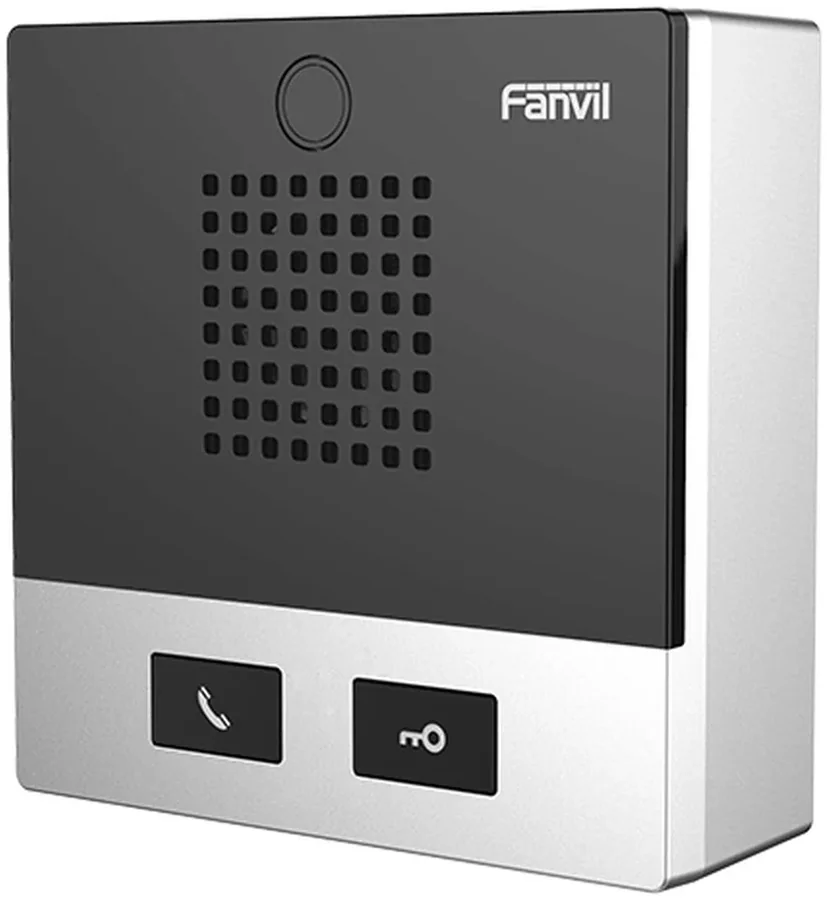

Fanvil i10D SIP Intercom

The Fanvil i10D is a small, elegant SIP intercom with two buttons that combines audio intercom, access control and broadcasting. It connects to the network and the IP PBX like a regular extension and suits office and building entrances, schools, nursing homes and hotels.

The device supports 2 SIP lines, auto answer and two configurable DSS speed-dial buttons. It is powered by PoE or 12 VDC, includes a relay to drive an electric lock, is designed for indoor wall mounting and is rated IP54 against dust and water.

Key features

• Two speed-dial buttons - Two DSS buttons that can be programmed to call two extensions or different destinations.
• 2 SIP lines and auto answer - Registration to two SIP accounts, auto answer and an intercom function. Compatible with platforms such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix and Avaya.
• Clear audio - A built-in 1W speaker, full-duplex intercom with acoustic echo cancellation (AEC) and support for G.722 and Opus wideband codecs.
• Door opening - A built-in relay (NC/NO, up to DC 30V/1A or AC 125V/0.5A) drives an electric lock, plus one short-circuit input.
• Easy installation - PoE or DC 12V/1A power, wall mounting, an IP54 ABS housing and an operating range of -20°C to 50°C.
• Remote management - Web management portal, auto-provisioning via FTP/TFTP/HTTP/HTTPS, DHCP Option 66, SIP PnP or TR-069, firmware upgrade and configuration export/import.
