IP camera D-Link DCS-6513

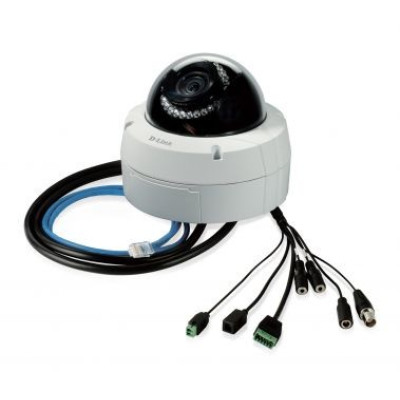

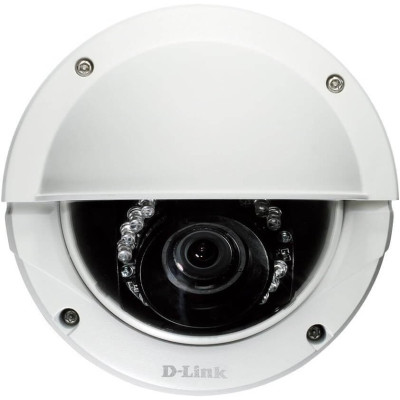

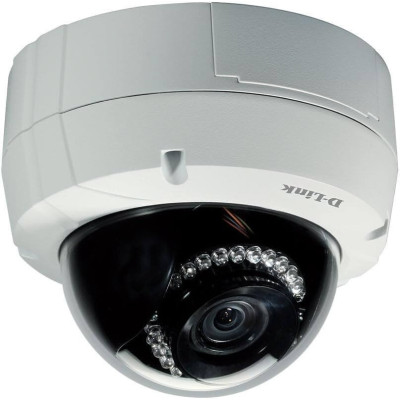

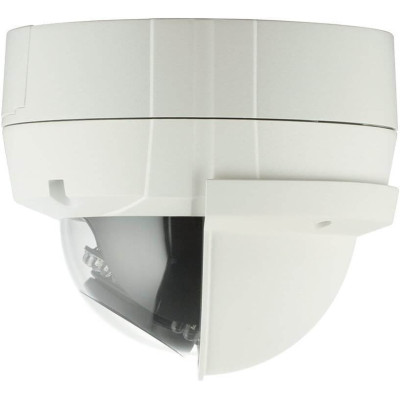

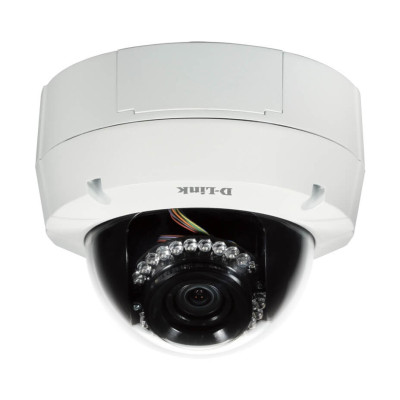

D-Link DCS-6513 Outdoor Dome IP Camera

The D-Link DCS-6513 is an outdoor dome network camera for business surveillance and security. It combines a 1/2.8-inch 3 megapixel Sony Exmor CMOS sensor with a 3 to 9 mm motorized lens and a P-Iris whose stepping motor keeps the opening at the optimal level. The camera records Full HD 1080p video and supports resolutions of up to 2048x1536.

Built-in IR LEDs with a 20 m range and a removable ICR filter keep watch even in complete darkness, and WDR preserves detail in backlit scenes. The housing is rated IP67 against water and IK-10 against vandalism, with built-in heating and cooling, and PoE delivers power and network over one cable.

Key features

• Motorized P-Iris lens - A 3 to 9 mm lens with 3x optical zoom and an F1.2 aperture. Zoom and focus are adjusted remotely from a computer, without going to the camera.
• Full HD and 3MP - Video at 1920x1080 at 30fps and up to 2048x1536 at 15fps, with H.264, MPEG-4 and MJPEG compression and three simultaneous streaming profiles.
• Night vision up to 20 m - Built-in IR LEDs with a 20 m range and a removable ICR filter, with 0 lux minimum illumination when the IR is on.
• Built for outdoor use - An IP67 and IK-10 rated housing with an included weather shield, plus built-in heating and cooling for operation from -40 °C to 50 °C.
• PoE and external devices - 802.3af PoE, digital input and output (DI/DO) for sensors and relays, audio in and out for two-way audio, and a BNC video output.
• Recording and management - A microSD/SDHC slot for local recording, saving to a NAS, motion detection with e-mail or FTP alerts, and D-ViewCam software for up to 32 cameras.

Specifications
