UPS Battery Luggar 12V 12Ah UPS Battery BT-1212 Color:black

Battery Luggar 12V 12Ah UPS Battery

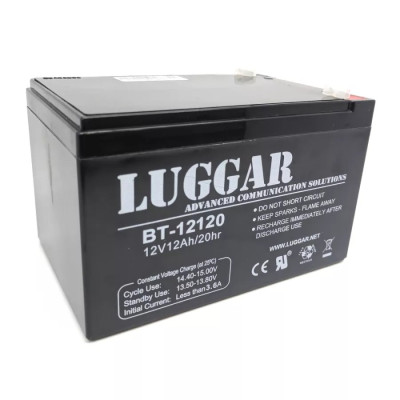

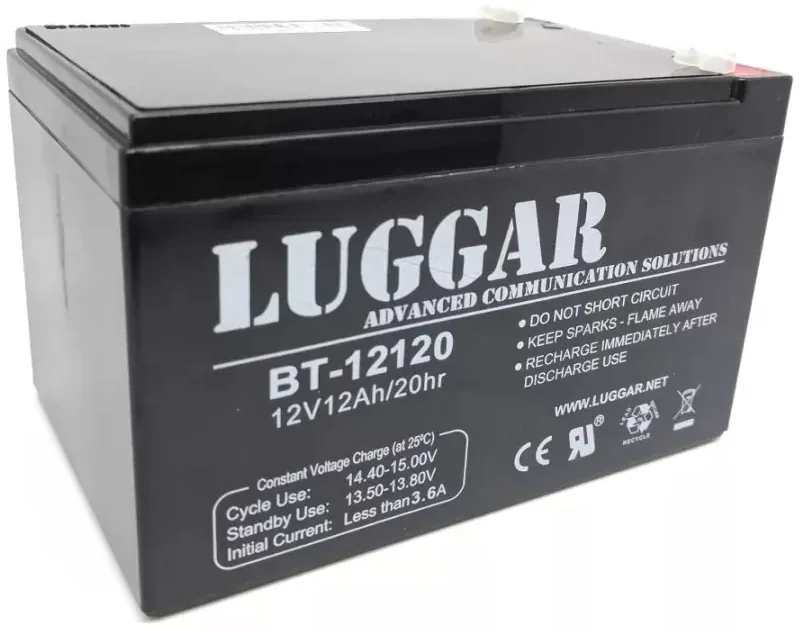

The Luggar 12V 12Ah UPS Battery (part number BT-1212, model BT-12120 printed on the battery) is a sealed rechargeable battery rated 12V and 12Ah at the 20-hour rate. It comes from Luggar, the Israeli brand of NBtech Group, and is used to replace a worn-out battery in a UPS or to build a backup power setup.

Besides UPS units, the battery suits alarm systems, medical equipment, power tools, communication equipment, emergency power systems, control equipment and security systems. It measures 150 x 100 x 90 mm, the common size for 12V 12Ah batteries.

A sealed, non-spillable design with a safety valve allows maintenance-free operation in several mounting positions, and low self-discharge keeps the charge during storage. Before replacing, check that the size and terminal position match the battery bay of your device.

Key features

• Sealed and maintenance-free - The battery is sealed and needs no water top-ups or routine care, and the non-spillable design lets you install it safely inside the UPS enclosure.
• Safety valve - A built-in safety valve protects against pressure build-up inside the battery.
• Deep discharge recovery - The manufacturer states exceptional recovery after deep discharge, an advantage in backup systems that may drain completely during a long power cut.
• Low self-discharge - The battery holds its charge for a long time when not in use, so it is ready to work even after storage.
• Several mounting positions - The design allows the battery to be installed in several positions, depending on the space in the device.
• Charging per manufacturer data - Cycle use charging voltage is 14.40-15.00V, standby use 13.50-13.80V, and initial charging current is less than 3.6A. Recharge immediately after discharge, do not short-circuit the terminals and keep away from sparks and flames.

Specifications
