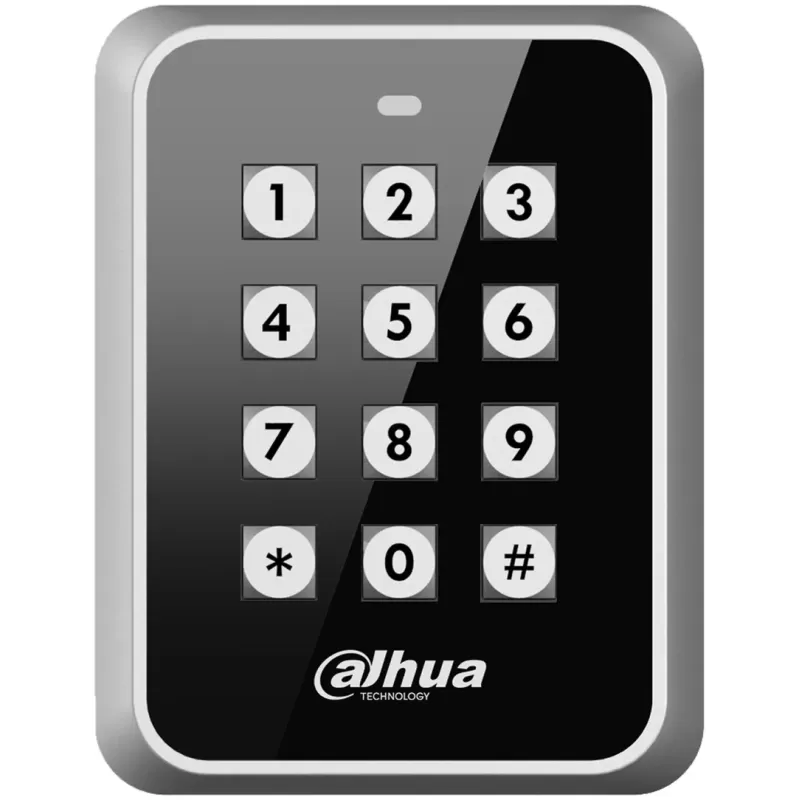

Keyboard DAHUA ASR1101M DHI-ASR1101M Color:black

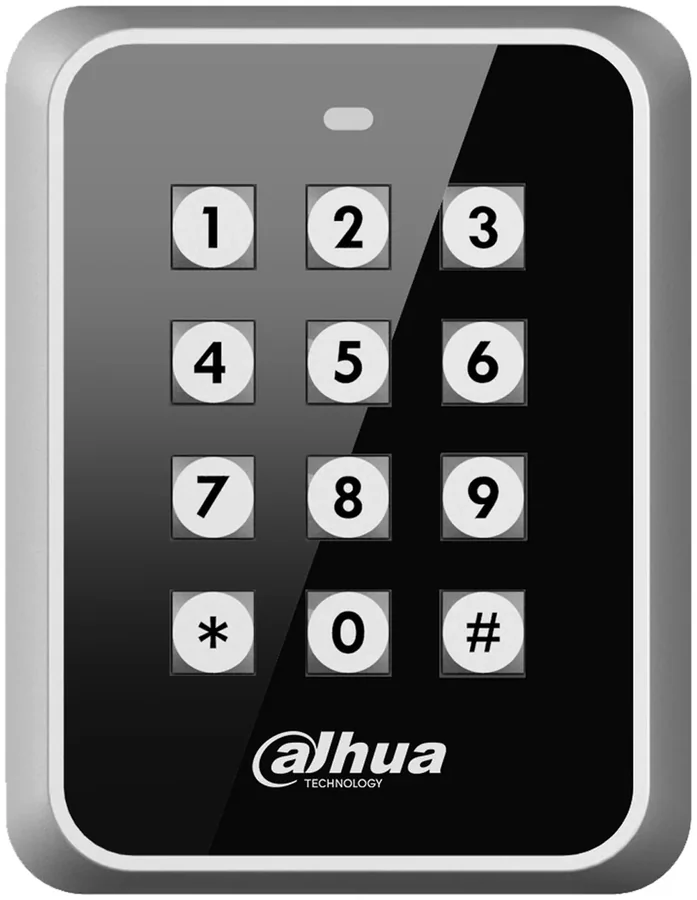

DAHUA ASR1101M Vandal-proof RFID Reader with Keypad

The Dahua ASR1101M is a vandal-proof RFID card reader with a 12-key metal keypad for access control. It reads Mifare cards at 13.56 MHz and sends the data to the access controller via RS-485 or Wiegand.

The keys have a blue backlight, and key 5 carries a braille mark. The reader has red and green indicator LEDs, a buzzer and a tamper alarm, is designed for indoor surface mounting and runs on 9V to 15V DC.

Key features

• Durable metal keypad - 12 metal keys (0-9, *, #) with blue backlight and a braille mark on key 5, with IK08 impact resistance.
• Mifare card reading - Reads Mifare cards at 13.56 MHz at 1 to 3 cm in less than 0.1 s.
• Controller connection - RS-485 and Wiegand 34 (Wiegand 26 optional) for connecting to access controllers.
• Clear indication - Red and green LEDs and a buzzer confirm every action to the user.
• Stable operation - A watchdog function prevents the device from halting, and a tamper alarm warns of attempts to remove the reader.
