Keyboard DAHUA ASR2101A-ME DHI-ASR2101A-ME Color:black

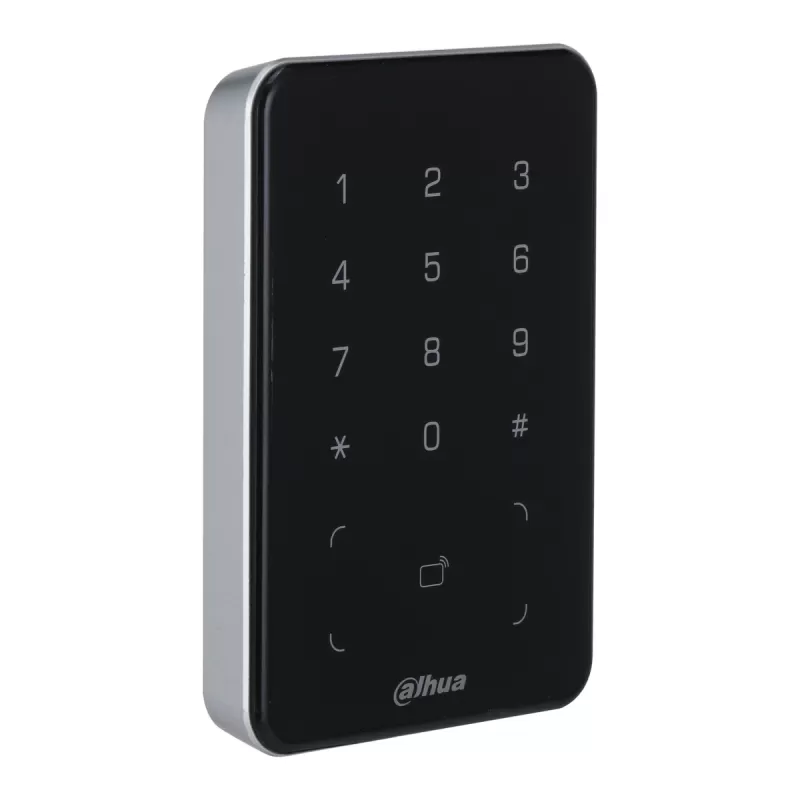

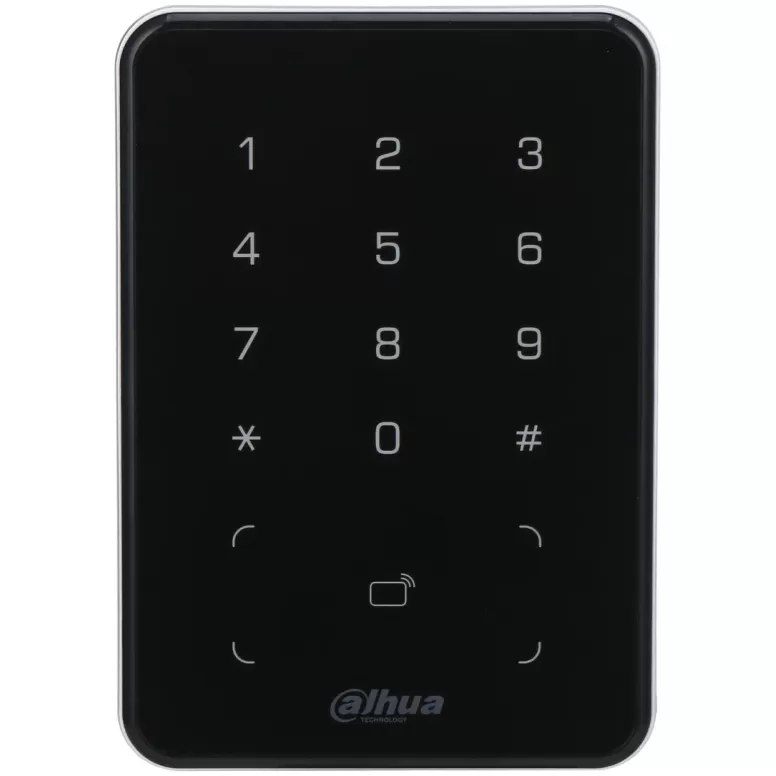

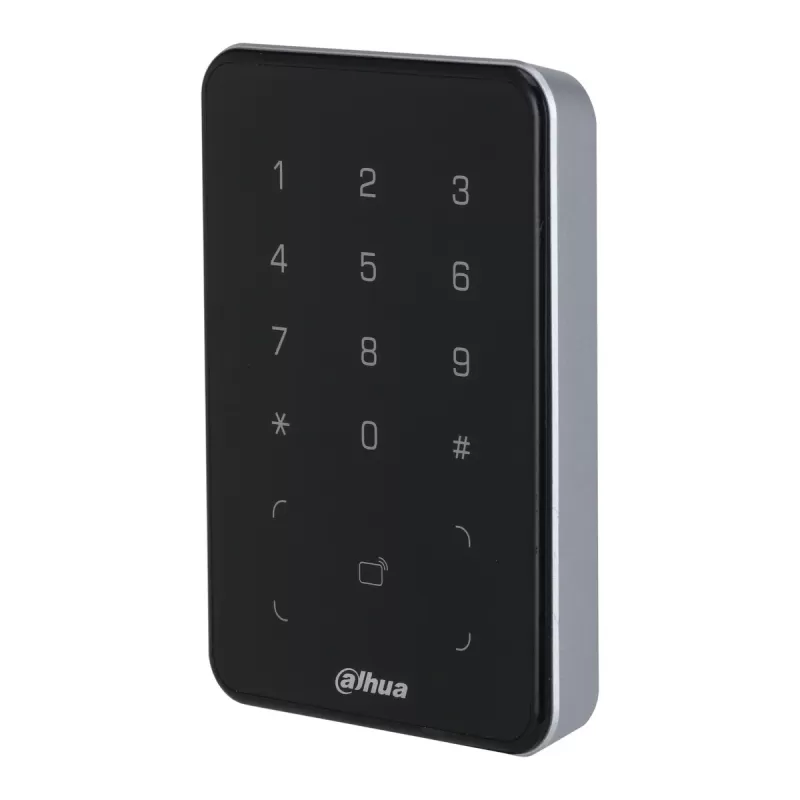

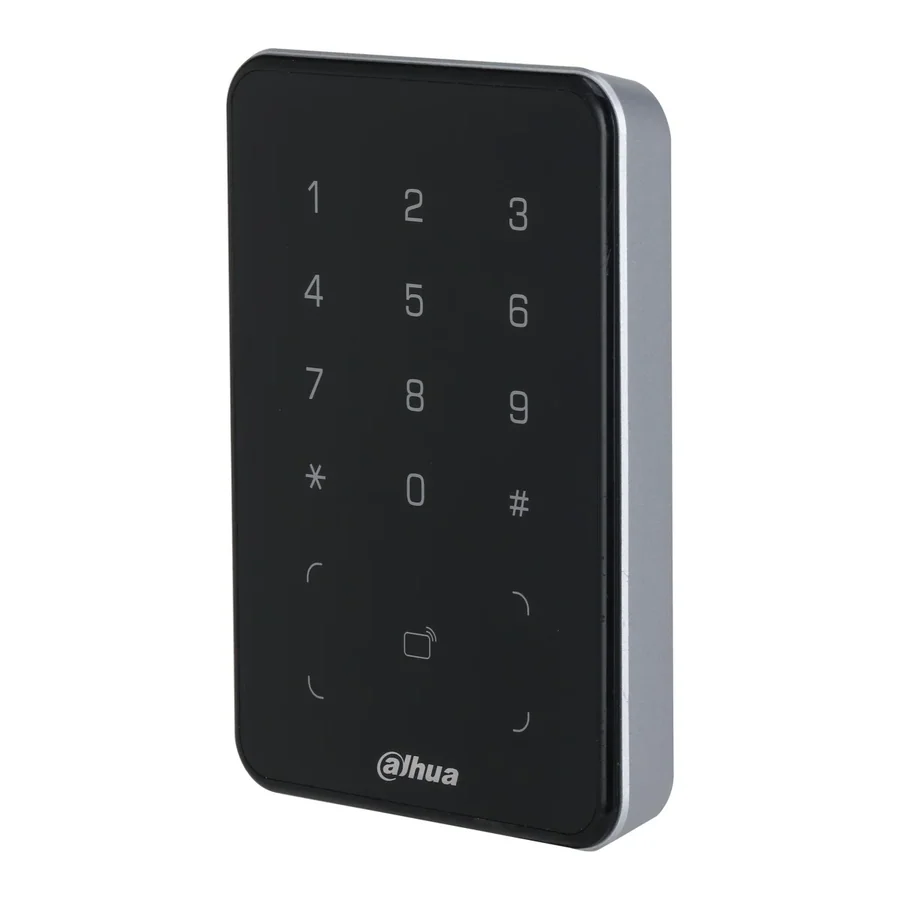

DAHUA ASR2101A-ME Waterproof Card and Password Reader

The Dahua ASR2101A-ME is an access control card and password reader that reads the card or PIN and sends the information to the access controller for verification. It supports two frequencies: Mifare Classic 1K cards at 13.56 MHz and ID cards at 125 kHz.

The reader has a slim design with a PC casing and an acrylic panel, a touch keypad, a buzzer and an indicator light. IP66 protection (with silicone sealant as described in the manual) allows outdoor installation, and it connects to the controller via RS-485 or Wiegand.

Key features

• Card or code - Unlock by swiping a card or entering a password on the touch keypad, with multiple unlock modes depending on the controller settings.
• Dual frequency in one reader - Reads Mifare Classic 1K cards at 13.56 MHz and ID cards at 125 kHz, at up to 5 cm with a 0.1 s response time.
• Controller connection - One RS-485 port and one Wiegand output (W26/W34) for connecting to access controllers.
• Indoor and outdoor - IP66 protection and an operating range of -30°C to +70°C for surface mounting at indoor and outdoor entrances.
• Protection and reliability - Tamper alarm, a watchdog that detects abnormal states and recovers operation, and overcurrent and overvoltage protection on all ports.

Specifications
