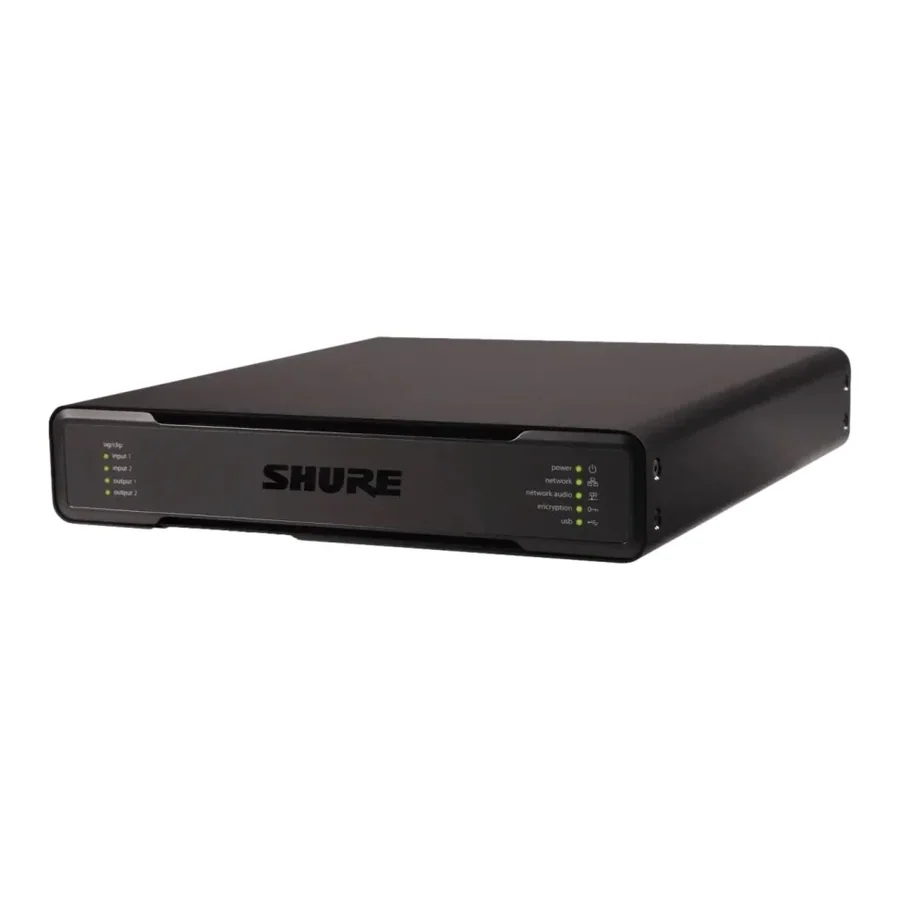

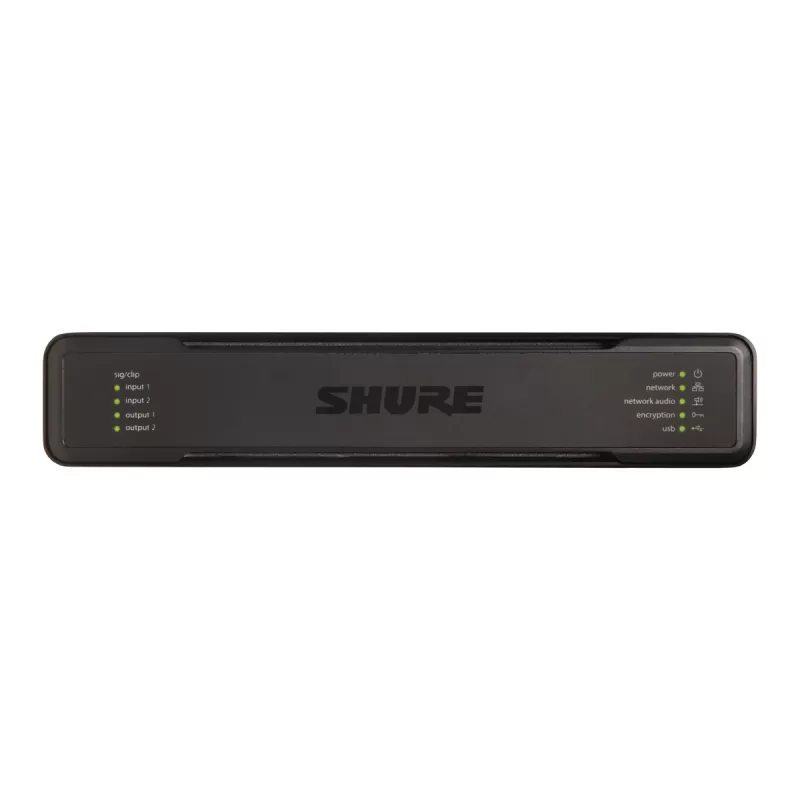

Shure IntelliMix P300-IMX Audio Conferencing Processor

The Shure IntelliMix P300 (P300-IMX) is an audio conferencing DSP that connects meeting room microphones to an AV conferencing system or a PC-based conferencing application. It processes up to 8 microphone channels with acoustic echo cancellation (AEC), noise reduction and automatic gain control, and adds IntelliMix automatic mixing, matrix mixing, delay, compressor and parametric EQ.

The processor takes 10 Dante network channels, two analog inputs and two analog outputs, a USB connection to the room PC or a laptop and a 3.5mm TRRS jack for a mobile phone. It is powered by PoE+, so no separate power supply is needed, and its compact chassis mounts behind a display or under a table without an equipment rack.

Key features

• Clean conference audio - 8 channels of microphone processing with AEC, noise reduction and AGC prevent echo, background noise and distortion.
• IntelliMix automatic mixing - Automatic mixing, matrix mixing, delay, compressor and parametric EQ, with a predefined matrix and presets that shorten setup time.
• Flexible connectivity - 10 Dante inputs, two analog inputs and outputs on block connectors, USB to a PC running a conferencing app and a 3.5mm TRRS jack to bring in a caller on a phone.
• PoE+ powered - The unit is powered over the network cable (802.3at Type 2, Class 4) and needs no external power supply.
• Discreet installation - A compact 4 x 21 x 22.6 cm chassis mounts behind a display, under a table or in a credenza, with no equipment rack required.
• Management and security - Setup in Shure Designer software, mute LED sync with Zoom Rooms and Microsoft Teams, and support for 802.1x, secure boot and AES encryption of control and audio data.

Specifications

In the box

• Shure IntelliMix P300 audio processor
• User and installation guide
