Panel ATEN VK320 8" VK320 Color:black

ATEN VK320 8" Touch Panel for AV Control

The ATEN VK320 is an 8-inch touch panel with a capacitive IPS screen and a narrow bezel. It comes with the ATEN Control System app preinstalled and controls AV equipment, lighting, projectors and cameras through ATEN controllers, making it a fit for meeting rooms, classrooms, digital podiums and small stations.

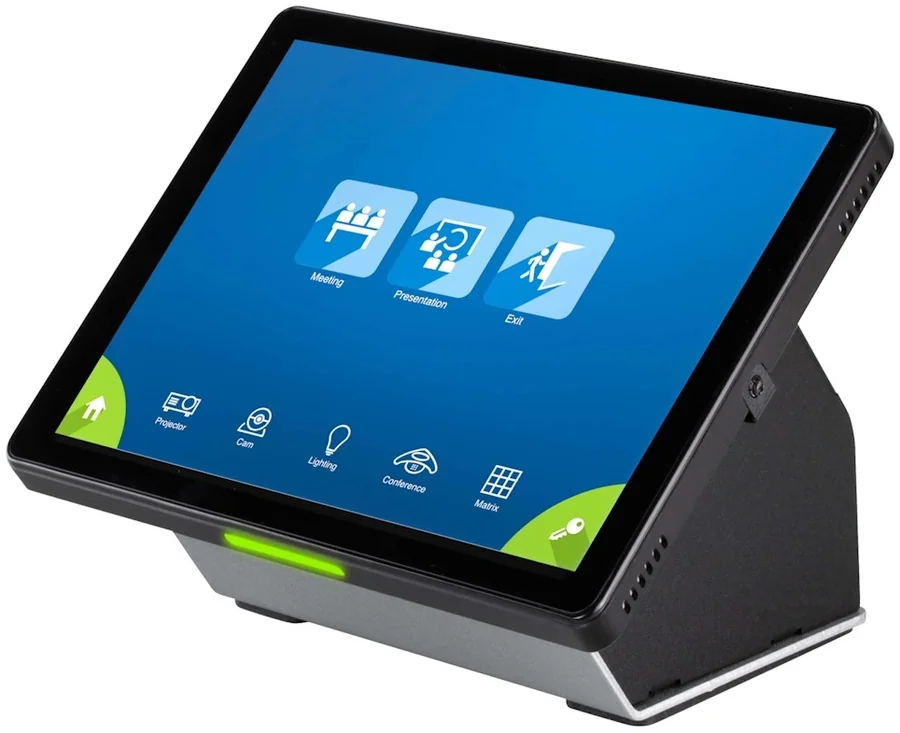

The panel runs on PoE+ over a single network cable, integrates with ATEN Unizon and the Room Booking system to show room status, and mounts in the wall with the included 86-type junction box. For desk mounting or tilted wall mounting, the VK101 or VK102 tabletop kits are available separately.

Key features

• 8-inch touch screen - Capacitive IPS-LCD at 1280x800, 300 cd/m² brightness and an 85° viewing angle in every direction.
• ATEN Control System preinstalled - Ready to work with ATEN controllers, with AppSwitcher for switching apps and password-protected profiles.
• Room management - Integration with ATEN Unizon and Room Booking to show room usage and equipment status, with central control of several rooms.
• Single-cable power - 802.3at PoE+ carries power and data, and a USB Type-C port is also provided.

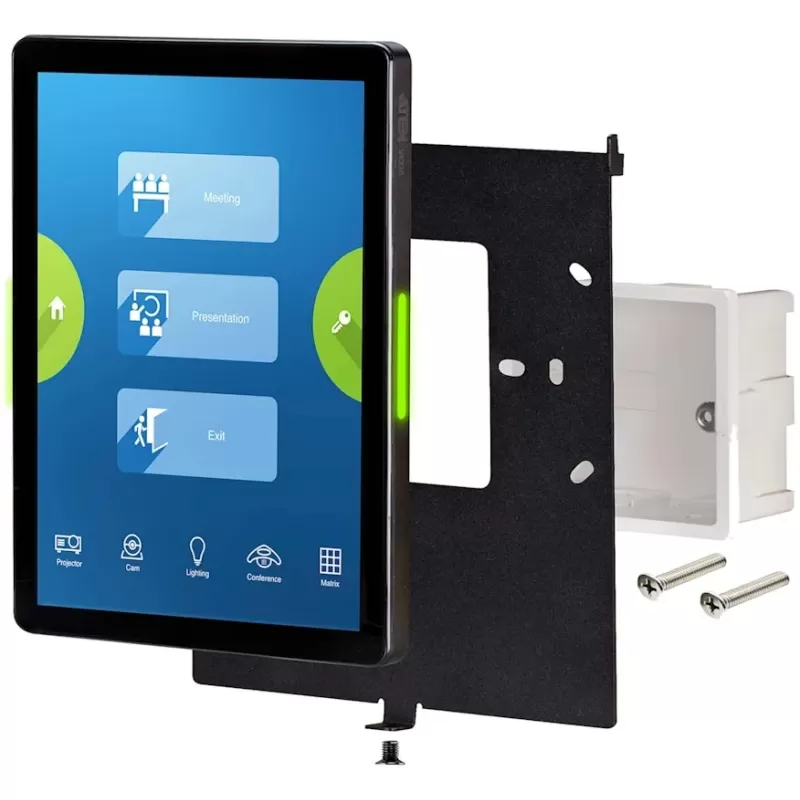

• Flexible installation - In-wall mounting with the included 86-type box, compatible with US, EU and MK 1-gang boxes, in horizontal or vertical orientation.
• Video preview - Preview of RTSP, ONVIF and ATEN VE89 streams when used with VK2200 and VK1200 controllers.

Specifications

In the box

• VK320 touch panel
• 86-type junction box with screws
• 90° RJ-45 cable adapter (60 cm)
• User instructions
