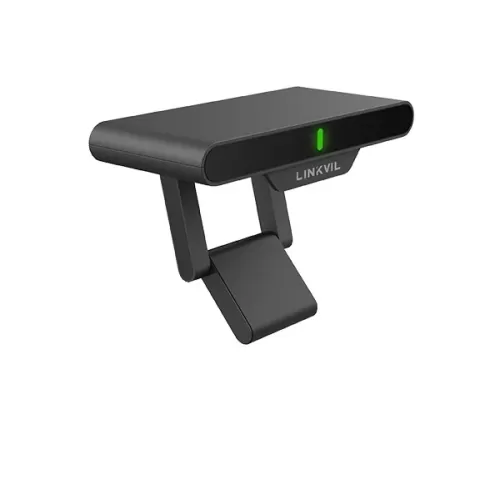

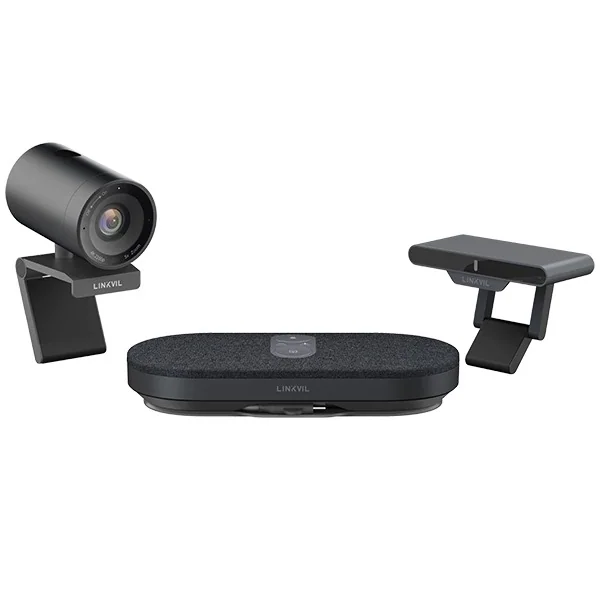

| Revew | Wireless Conference Kit Fanvil CA400The Fanvil CA400 from the LINKVIL range is a wireless video conferencing kit for small and medium meeting rooms up to 32 m². It includes the MS10 speakerphone with a screen-sharing button, the RC10 receiver hub that connects to the display over HDMI, and the CM70 4K camera. Connect a laptop to the MS10 with a single USB-C cable to get 4K/30fps wireless screen sharing, audio and the camera in any conferencing app, with no software or drivers to install. The MS10 has 8 microphones with a 4 m pickup range, and the camera offers an 8MP sensor, a 118.5° field of view and auto-framing.
Key features- One cable from the laptop - A single USB-C connection enables speaker, microphones, screen sharing and camera, plug and play without software.
- 4K wireless screen sharing - 4K/30fps casting to the display through the RC10 hub, in mirror or extended desktop mode.

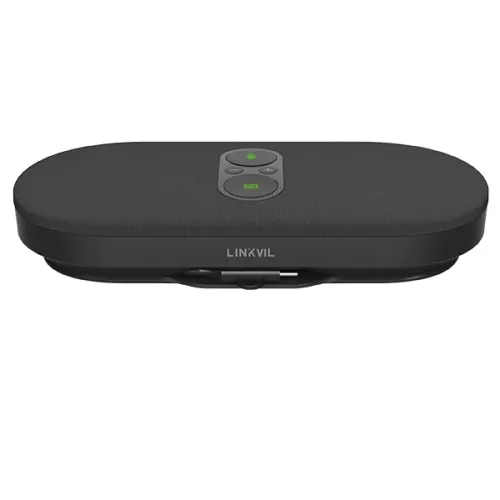

- Clear audio - 8 MEMS microphones with 360° pickup up to 4 m, 3W speaker, AEC, noise suppression and AGC.

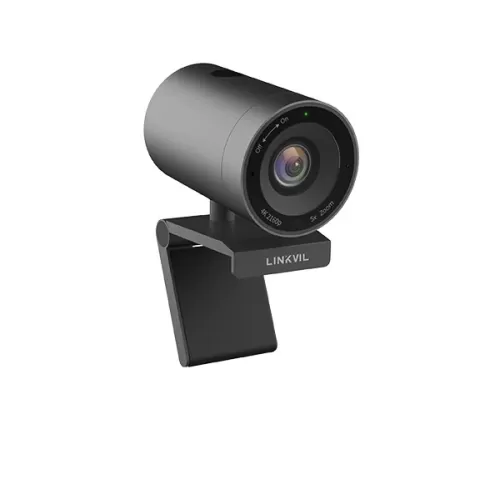

- 4K camera with auto-framing - CM70 with IMX415 sensor, 5x digital zoom, 118.5° field of view and magnetic privacy cover.
- Easy installation - No integration needed: magnetic or stand-mounted hub, clip or tripod-thread camera mount.
- Wide compatibility - Works with any display with HDMI input and with Windows and macOS.
Specifications| Manufacturer | Fanvil (LINKVIL series) | | Model | CA400 | | Components | MS10 speakerphone, RC10 receiver hub, CM70 camera | | Recommended room size | Up to 32 m² | | Microphones | 8 MEMS microphones, 360° pickup | | Pickup range | 4 m | | Speaker | 3W, 4Ω | | Audio processing | Full duplex, beamforming, AEC, ANS, AGC | | Screen sharing | Up to 4K at 30fps, mirror and extend | | Camera sensor | Sony IMX415 1/2.8 inch, 3840x2160 | | Field of view | 118.5° diagonal, 109.9° horizontal | | Zoom | 5x digital | | Streaming video | Up to 1080p at 30fps | | Display connection | HDMI via RC10 | | Wireless | Wi-Fi 5/6 at 5GHz, up to 10 m, WPA3 | | PC connection | Integrated 0.65 m USB-C cable | | Operating systems | Windows 7, Windows 10, macOS 10.8 and later | | Weight | MS10: 385 g, RC10: 85 g, CM70: 210 g | | Package dimensions | 233 x 188 x 110 mm |
In the box- MS10 speakerphone
- RC10 receiver hub
- CM70 4K camera
- H2C adapter (USB-C to HDMI and USB-A/C)
- 1.5 m HDMI cable
- 1 m USB-A to USB-C extension cable
- 0.5 m USB-A extension cable
- Remote control
- 5V/2A power adapter
- Quick installation guide
|
