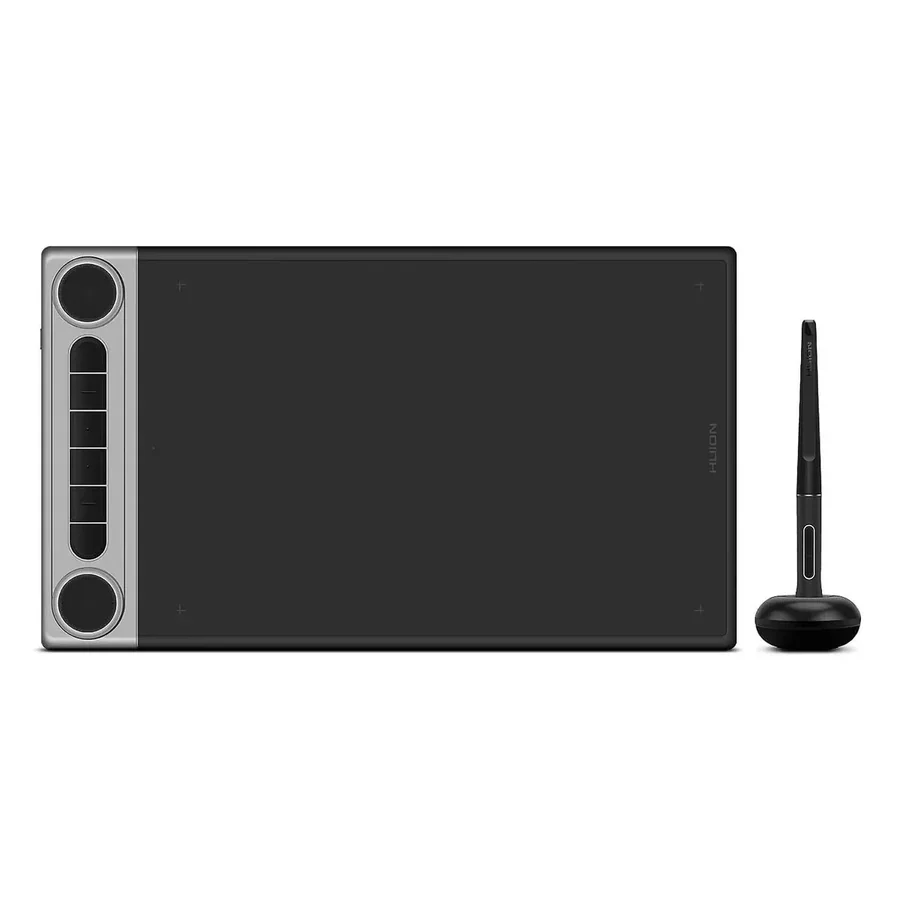

| Revew | HUION Inspiroy Dial 2 Pen TabletThe HUION Inspiroy Dial 2 is a medium pen tablet with two dial controllers, six programmable press keys and two function-switch buttons that give quick access to tools and frequent actions in drawing and design software. It connects via Bluetooth 5.0 or a USB-C cable, and the 1300mAh battery lasts about 18 hours in wireless use. The battery-free PW517 pen with PenTech 3.0 comes with 5 standard nibs and 5 felt nibs.
Key features- Two dials for faster work - Both dials support the Windows Radial Menu and can be set to zoom, brush size, undo, page scrolling and volume control.
- Six silent keys - Programmable, near-silent keys with small bumps that help you find each key by touch without looking.
- Paper-like surface - A new panel treated for a rough, paper-like feel, with 20% more friction between the nib and the surface.
- Bluetooth 5.0 and all-day battery - Up to 10 m range, up to 18 hours in Bluetooth mode and a full charge in about 2.5 hours. Wired use over USB-C is also supported.
- PW517 pen with PenTech 3.0 - A battery-free pen with 8192 pressure levels, ±60° tilt, a report rate above 300 PPS and a 40% shorter nib retraction distance.
- Slim and symmetrical - 8 mm thin with rounded corners. The keys and dials are arranged symmetrically on one side, so the tablet suits both left- and right-handed users.
Specifications| Manufacturer | HUION | | Model | Inspiroy Dial 2 | | Part number | Q630M | | Working area | 266.7 x 166.7 mm (10.5 x 6.56 inch) | | Pen | PW517 battery-free (EMR), PenTech 3.0 | | Pressure sensitivity | 8192 levels | | Tilt | ±60° | | Pen resolution | 5080 LPI | | Report rate | Above 300 PPS | | Accuracy | ±0.3 mm | | Sensing height | Above 10 mm | | Keys | 6 programmable keys, 2 dials, 2 function-switch buttons | | Connection | USB-C, Bluetooth 5.0 (5 to 10 m range) | | Battery | 1300mAh, about 18 hours | | Charge time | About 2.5 hours (5V 1A), about 4.5 hours (5V 0.5A) | | Auto sleep | After 15 minutes | | Compatibility | Windows 7 or later, macOS 10.12 or later, Android 6.0 or later, Linux, Chrome OS (wired only) | | Dimensions and weight | 356.6 x 207 x 8 mm, 710 g | | Color | Black |
In the box- Inspiroy Dial 2 pen tablet
- PW517 pen
- Pen holder
- 5 standard nibs and 5 felt nibs
- USB-C cable
- Quick start guide
|
