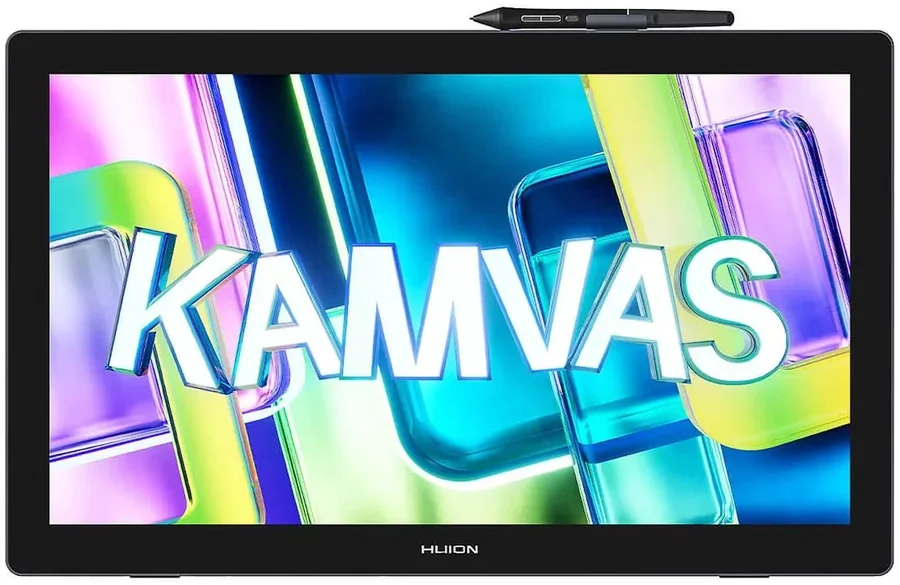

| Revew | HUION Kamvas 22 Gen 3 Pen DisplayThe HUION Kamvas 22 (Gen 3) is a 21.5 inch pen display with 2.5K QHD resolution (2560 x 1440), a 90Hz refresh rate and 250 nit brightness. Compared with the previous Kamvas 22 and Kamvas 22 Plus, it shows more content at a higher pixel density. The display offers five color modes, including sRGB, Rec.709, Adobe RGB and Display P3, and is factory calibrated to ΔE<1.2. The PW600L pen with PenTech 4.0 needs no battery, and the display comes with a pre-installed adjustable VESA-compatible stand, rear ambient lighting and a slot that hides the cables.
Key features- 2.5K and 90Hz - 2560 x 1440 resolution on a 21.5 inch screen and a 90Hz refresh rate. According to the manufacturer, smoothness and line rendering speed improve by up to 50%.
- Five color modes - 99% sRGB, 99% Rec.709, 90% Adobe RGB and 94% Display P3, plus a black and white mode for sketching and manga. Factory calibrated to ΔE<1.2, with a calibration report in the box.
- PW600L pen with PenTech 4.0 - A battery-free pen with three side keys and a silicone grip, 16,384 pressure levels, ±60° tilt and a 2 g initial activation force. Maximum pressure can be set in the driver between 200 and 500 g.
- Canvas Glass 2.0 - Nano-etched matte glass with full lamination that reduces reflections and sparkle and gives a paper-like texture.
- Adjustable VESA stand - A pre-installed VESA-compatible stand that adjusts from 20° to 80°, with a screwdriver in the box for removal or installation.
- A tidy desk - Rear ambient lighting with solid color or breathing mode, a cable slot that hides the wiring and a detachable pen slot on top. Connect to a computer via HDMI or a full-featured USB-C cable.
Specifications| Manufacturer | HUION | | Model | Kamvas 22 (Gen 3) | | Part number | GS2203 | | Display | 21.5 inch IPS, 2560 x 1440 (16:9), 90Hz | | Color coverage | 99% sRGB, 99% Rec.709, 90% Adobe RGB, 94% Display P3 | | Display colors | 16.7 million (8bit) | | Color accuracy | ΔE<1.2 | | Brightness and contrast | 250 nit, 1000:1 | | Response time | 14ms | | Glass | Anti-glare etched Canvas Glass 2.0, full lamination | | Pen | PW600L, PenTech 4.0, battery-free EMR | | Pressure sensitivity and tilt | 16,384 levels, ±60° | | Pen resolution and report rate | 5080 LPI, over 260PPS | | Accuracy | ±0.3 mm center, ±2 mm corner | | Working area | 475.4 x 267.4 mm | | Ports | HDMI, USB-C | | Stand | Adjustable 20° to 80°, VESA compatible | | Power consumption | Up to 32W | | Dimensions and weight | 527.7 x 324.7 x 16-36.7 mm, 3.6 kg with stand | | Operating systems | Windows 10 and above, macOS 10.12 and above, Android (USB 3.1 and DP 1.2) |
In the box- Kamvas 22 (Gen 3) pen display
- PW600L pen
- Adjustable stand
- Detachable pen storage slot
- Pen holder
- HDMI cable
- USB-C to USB-C cable
- USB-A to USB-C cable
- Power adapter
- 10 standard nibs
- Screwdriver
- Drawing glove
- Cleaning cloth
- Quick start guide
|
