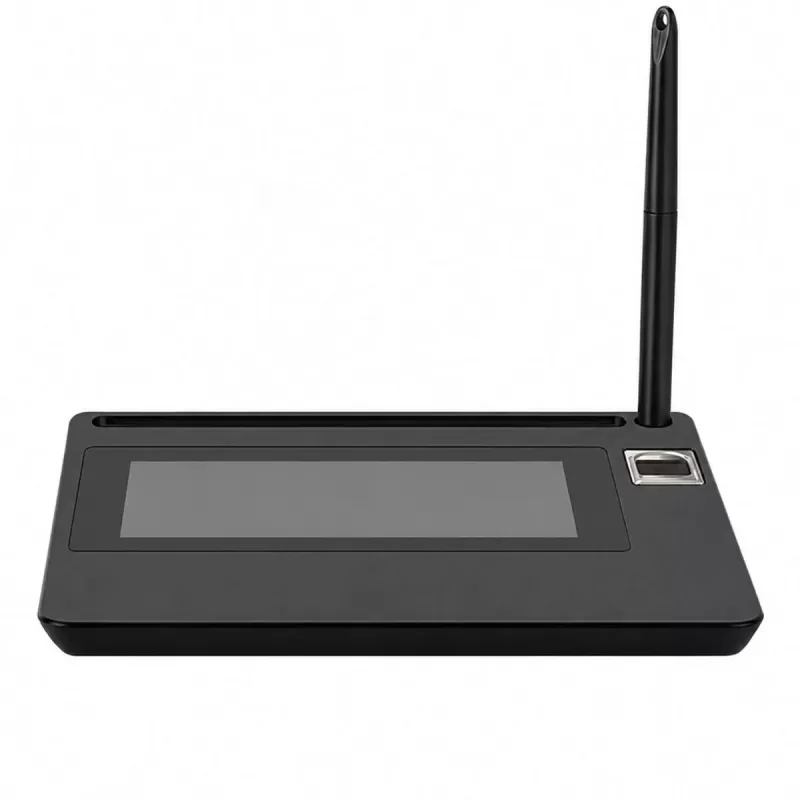

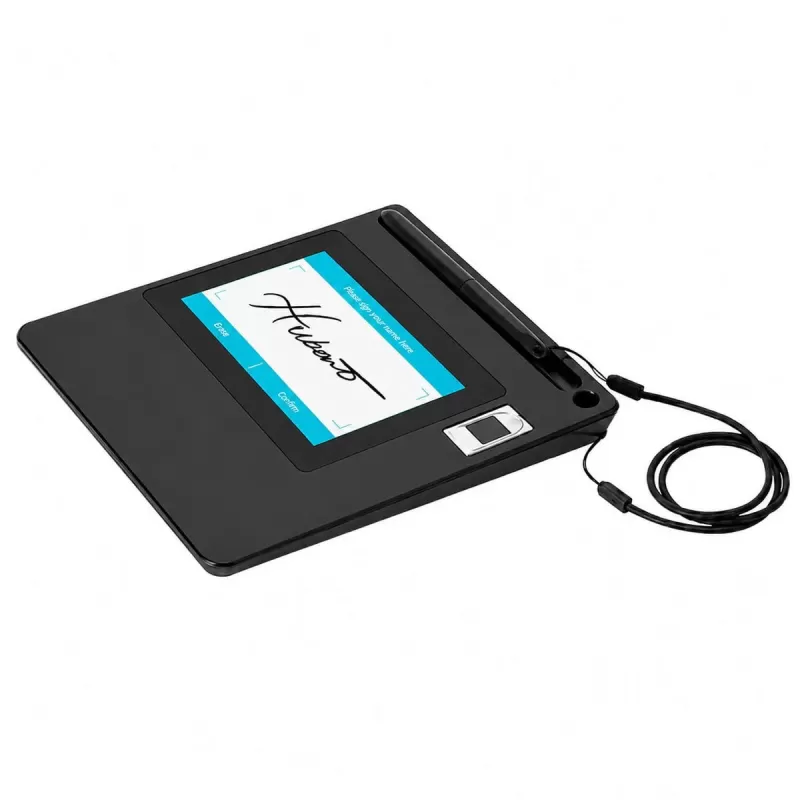

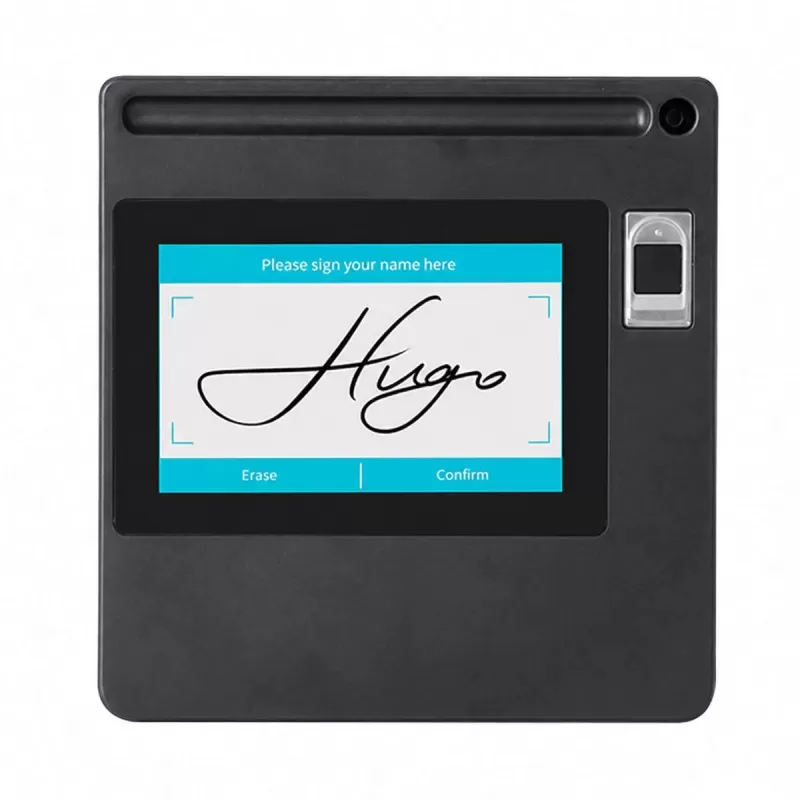

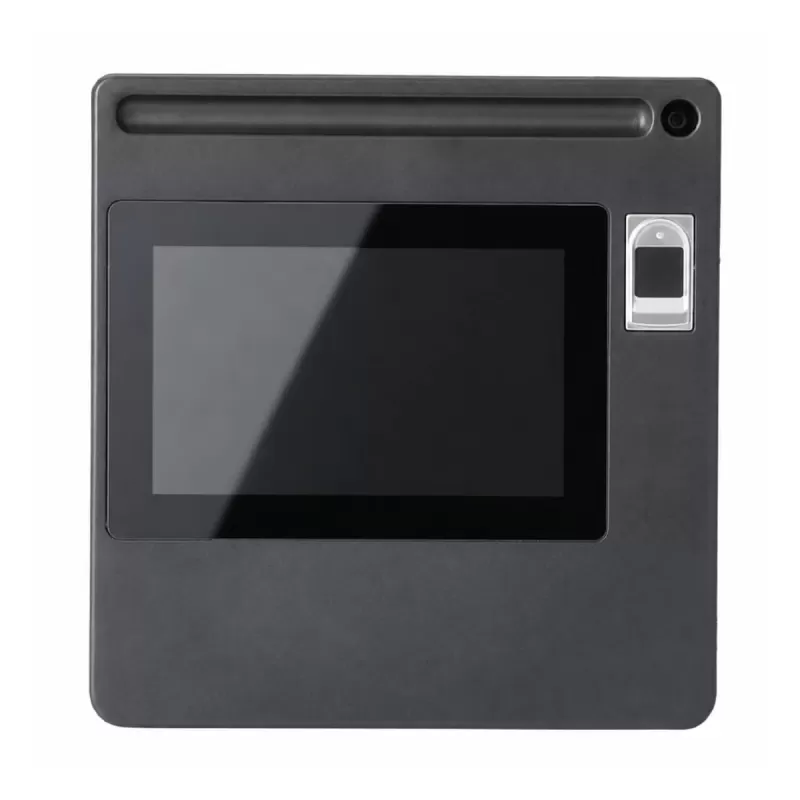

HUION 5" Signature Pad DS510S
The HUION DS510S is a signature pad with a 5 inch color IPS screen, designed for signing documents digitally at banks, insurance companies, offices, service counters and in the field. The customer signs on the screen with the pen, and the signature is captured together with its pressure data.
The pen uses electromagnetic resonance (EMR) and needs no battery or charging. The pad also has a fingerprint sensor and connects to a Windows computer with a USB-C cable.
Key features
- 5 inch signing screen - An 800 x 480 IPS screen with 500 cd/m² brightness, so the signer sees the signature on the screen in real time.
- Battery-free pen - An EMR pen with 2048 pressure levels and 5080 LPI resolution. The varying pressure is saved with the signature and adds biometric information.
- Fast response - A 233 PPS report rate captures every pen movement without lag, with ±0.5 mm accuracy in the center of the screen.
- Fingerprint sensor - A 192 x 192 sensor that can also capture the signer's fingerprint when the process requires extra identification.
- Simple connection - USB-C connection to a computer running Windows 7 or later, in a compact black body that suits a counter or work outside the office.
Specifications
| Manufacturer | HUION |
| Model | DS510S |
| Screen size | 5 inch |
| Screen type | IPS LCD |
| Resolution | 800 x 480 |
| Brightness | 500 cd/m² |
| Contrast ratio | 800:1 |
| Response time | 10ms |
| Viewing angle | 70°/70° (H), 50°/70° (V) |
| Active area | 108 x 64.8 mm |
| Pen | Battery-free EMR |
| Pressure sensitivity | 2048 levels |
| Pen resolution | 5080 LPI |
| Report rate | 233 PPS |
| Accuracy | ±0.5 mm center, ±3 mm corner |
| Sensing height | 10 mm |
| Fingerprint | 192 x 192 sensor |
| Interface and OS | USB-C, Windows 7 or later |
| Dimensions | 166.9 x 173.35 x 18.31 mm |
| Color | Black |
