VIVOTEK VC9101 Video Core 5MP VC9101 Color:white

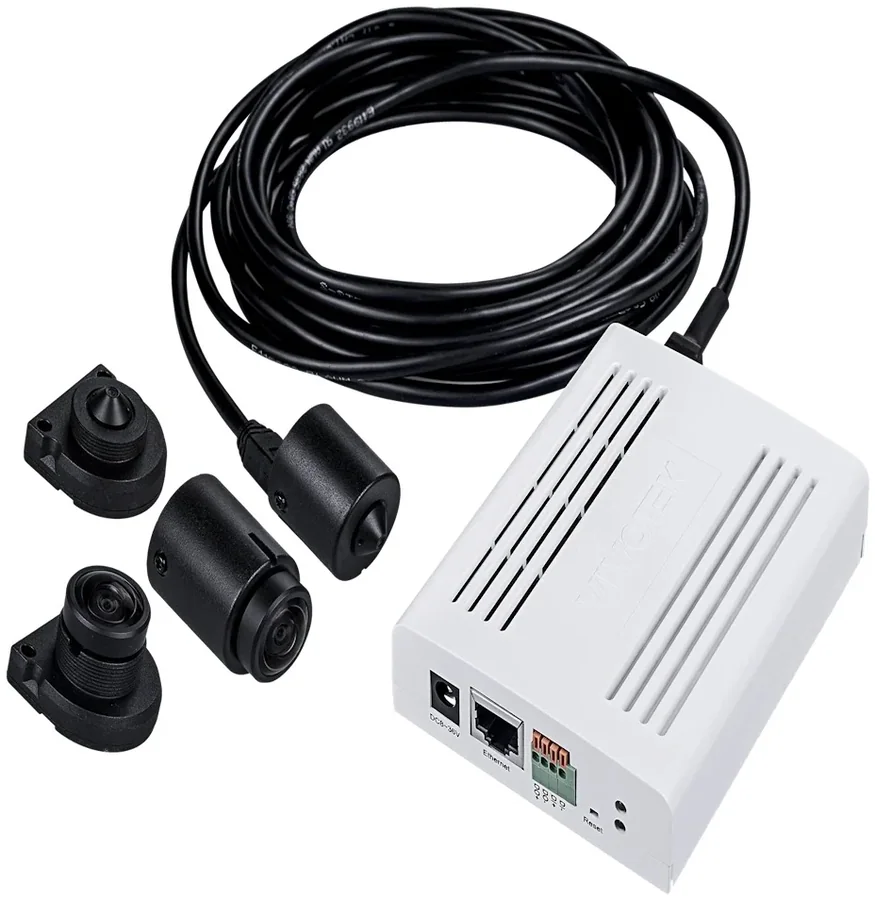

VIVOTEK VC9101 5MP Video Core for Split-Type Camera System

The VIVOTEK VC9101 is the processing unit (video core) of a split-type camera system, in which a tiny camera unit with a 5 m cable is installed separately from the processor. This design allows discreet, covert installation in ATMs, checkout counters, banks, shops and offices without spoiling the interior design.

The core supports one camera unit from four models: 4MP pinhole (CU9171-H, CU9171-HF) or 5MP fisheye (CU9183-H, CU9183-HF), sold separately. It includes a CNN accelerator for deep learning face detection, WDR Pro, two-way audio, a digital input and output, recording to microSD of up to 1TB, and PoE or DC 12V power with redundancy.

Key features

• Split design for covert installation - The small camera unit with a 5 m cable fits narrow spaces, while the core is mounted out of sight.
• Four camera unit options - 4MP pinhole at 2688x1520 or 5MP fisheye at 1920x1920, in cylinder or flat versions (sold separately).
• Face Check and Smart Motion Detection - A built-in CNN accelerator runs deep learning face detection and five-window motion detection with a time filter.
• Image quality - 120dB WDR Pro, 3DNR and HLM, plus Corridor View for hallways with a pinhole unit.
• Audio and I/O - Two-way audio with external microphone input and line output, plus a digital input and output for alarms.
• Dual power input - PoE IEEE 802.3af or DC 12V with simultaneous redundancy, at up to 8.5W.

Specifications

In the box

• VC9101 video core
• Quick installation guide
• Installation kit
