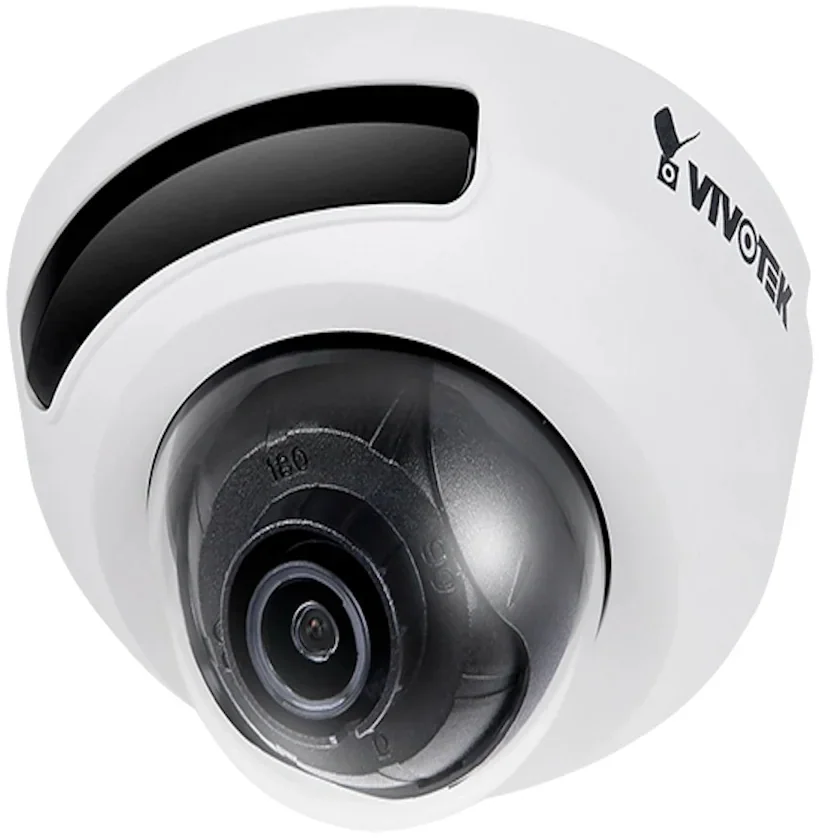

| Revew | VIVOTEK FD9166-HN 2MP 2.8mm Indoor Mini Dome Network CameraThe VIVOTEK FD9166-HN is a small, discreet indoor dome camera, 90 mm in diameter and weighing 150 g, with a 1/2.9" sensor that records Full HD (1920x1080) at 30fps. Its fixed 2.8 mm F1.8 lens covers a 109° horizontal field of view, suited to shops, offices, classrooms and corridors. The 940nm IR illumination is invisible to the eye and reaches up to 10 m, so the camera stays inconspicuous at night as well. WDR Pro with a 120dB range handles difficult lighting, a built-in microphone picks up sound up to 5 m, and power over the network cable (PoE) allows single-cable installation. Recording to a microSD card or NAS and Trend Micro IoT Security complete the package.
Key features- Invisible 940nm IR - Four 940nm IR LEDs without a visible red glow reach up to 10 m with Smart IR. Sensitivity of 0.07 lux in color and 0 lux with IR.
- Wide-angle Full HD - 1920x1080 at 30fps and a 2.8 mm lens with a 129° diagonal view. Video rotation suits long, narrow corridors.
- WDR Pro and Smart Stream III - A 120dB dynamic range and a 68dB signal-to-noise ratio, plus H.265 compression with Smart Stream III to save bandwidth and storage.
- Built-in microphone and digital input - A microphone for one-way audio with a 5 m range, and a digital input for a sensor or button that triggers events.
- Compact design - A 90 mm diameter, 50 mm high body with Pan ±30°, Tilt 90° and Rotation ±180° adjustment.
- PoE and cybersecurity - PoE 802.3af Class 2 power with max. 5.5W consumption, signed firmware and Trend Micro IoT Security to detect brute force attacks and cyberattacks.
Specifications| Manufacturer | VIVOTEK | | Model | FD9166-HN (2.8mm), FD9166-HNF2 | | Type | Indoor fixed dome camera | | Image sensor | 1/2.9" Progressive CMOS | | Resolution and frame rate | 1920x1080 (2MP) at 30fps | | Lens | Fixed 2.8 mm, F1.8 | | Field of view | 109° horizontal, 59° vertical, 129° diagonal | | IR illumination | 4 invisible 940nm LEDs, up to 10 m, Smart IR | | Minimum illumination | 0.07 lux in color, 0.01 lux in B/W, 0 lux with IR | | Image enhancement | WDR Pro 120dB, S/N 68dB, 3DNR, Defog, BLC, HLC | | Compression | H.265, H.264, MJPEG, up to 3 streams, Smart Stream III | | Audio | Built-in microphone up to 5 m, one-way, G.711/G.726 | | Inputs and outputs | One digital input (30V, 1A) | | Storage | microSD/SDHC/SDXC, recording to NAS | | Network | RJ-45 10/100Mbps, ONVIF Profile G/S/T, up to 10 viewers | | Power input and consumption | PoE 802.3af Class 2, max. 5.5W (IR on), 2.8W (IR off) | | Adjustment range | Pan ±30°, Tilt 90°, Rotation ±180° | | Operating temperature | -10°C to 55°C (IR off), -10°C to 50°C (IR on) | | Dimensions and weight | Ø90 x 50 mm, 150 g | | Color | White |
In the box- VIVOTEK FD9166-HN camera
- Screwdriver
- Alignment sticker
- Desiccant bag
- Quick installation guide
|
