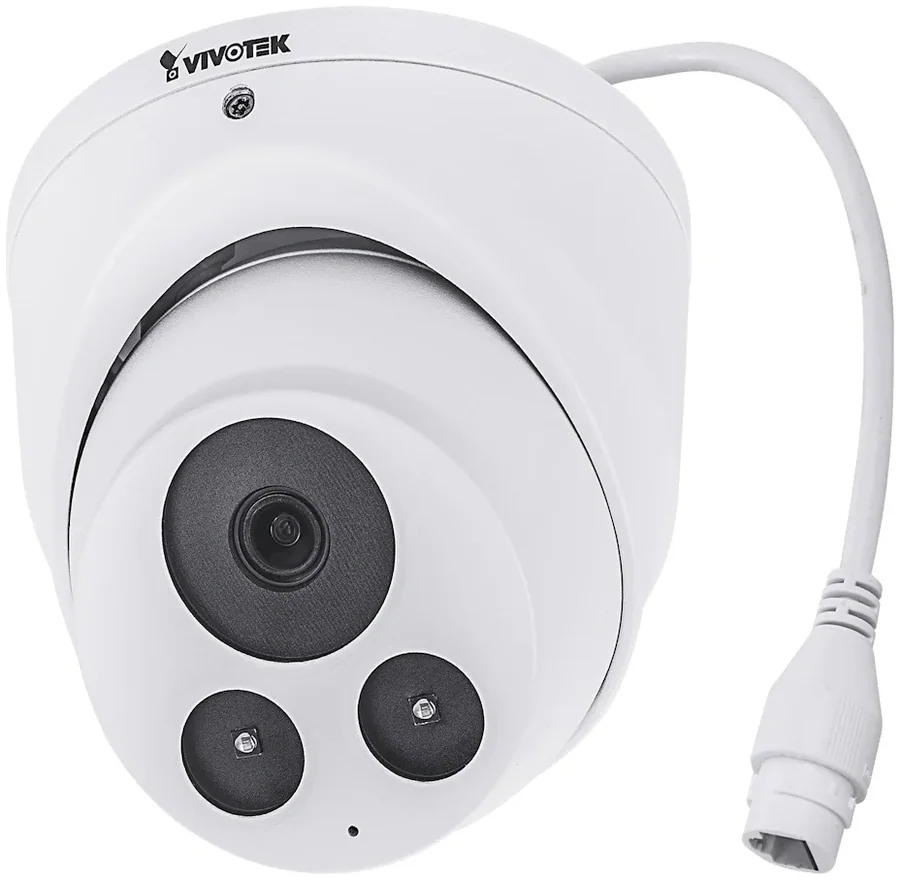

| Revew | VIVOTEK IT9380-H 5MP 2.8mm Turret Dome IP CameraThe VIVOTEK IT9380-H is a turret dome network camera for outdoor and indoor use, with a 5MP sensor and a fixed 2.8 mm lens covering 134° diagonally. It suits building entrances, shops, offices and homes, and its three-axis mechanism allows wall or ceiling mounting. 120dB WDR Pro, SNV for low light and IR up to 30 m deliver a clear image around the clock. The camera adds a built-in microphone, a microSD slot for local recording, Trend Micro IoT Security and an IP66/IK10 metal housing, all powered over a single PoE cable.
Key features- 5MP sensor and wide lens - A 1/2.7 inch sensor at 2560x1920 and a 2.8 mm lens with 103° horizontal and 134° diagonal coverage.
- WDR Pro and SNV - A 120dB dynamic range for high-contrast scenes and SNV to improve the image in low light.
- IR up to 30 m - Two IR LEDs with Smart IR and a removable IR-cut filter for automatic day and night switching.
- Built-in microphone - One-way audio with an effective range of up to 5 m, compressed in G.711 or G.726.
- IP66 and IK10 protection - A housing that resists water, dust and impacts, with a working temperature of -20°C to 60°C.
- Security and local recording - Trend Micro IoT Security, HTTPS and 802.1X, recording to microSD or a NAS, and ONVIF Profile G/S/T support.
Specifications| Manufacturer | VIVOTEK | | Model | IT9380-H (2.8mm) | | Type | Turret dome network camera | | Image sensor | 1/2.7" Progressive CMOS | | Resolution | 2560x1920 (5MP) | | Lens | Fixed 2.8 mm, F2.0 | | Field of view | 103° horizontal, 76° vertical, 134° diagonal | | WDR | WDR Pro, 120dB | | IR illumination | Up to 30 m, Smart IR, 2 LEDs | | Minimum illumination | 0.03 lux color, <0.005 lux B/W, 0 lux with IR | | Frame rate | 20fps at 2560x1920 | | Compression | H.265, H.264, MJPEG, Smart Stream III | | Audio | One-way, built-in microphone up to 5 m | | Storage | microSD/SDHC/SDXC, NAS recording | | Network | RJ-45 10/100Mbps, ONVIF Profile G/S/T | | Power | PoE IEEE 802.3af Class 2, max. 6W | | Adjustment | Pan 360°, tilt 70°, rotation 360° | | Protection | IP66, IK10 | | Working temperature | -20°C to 60°C | | Dimensions and weight | Ø105 x 82.5 mm, 475 g |
In the box- IT9380-H camera
- Quick installation guide
- Alignment sticker
- Screw pack
- Cable gland
|
