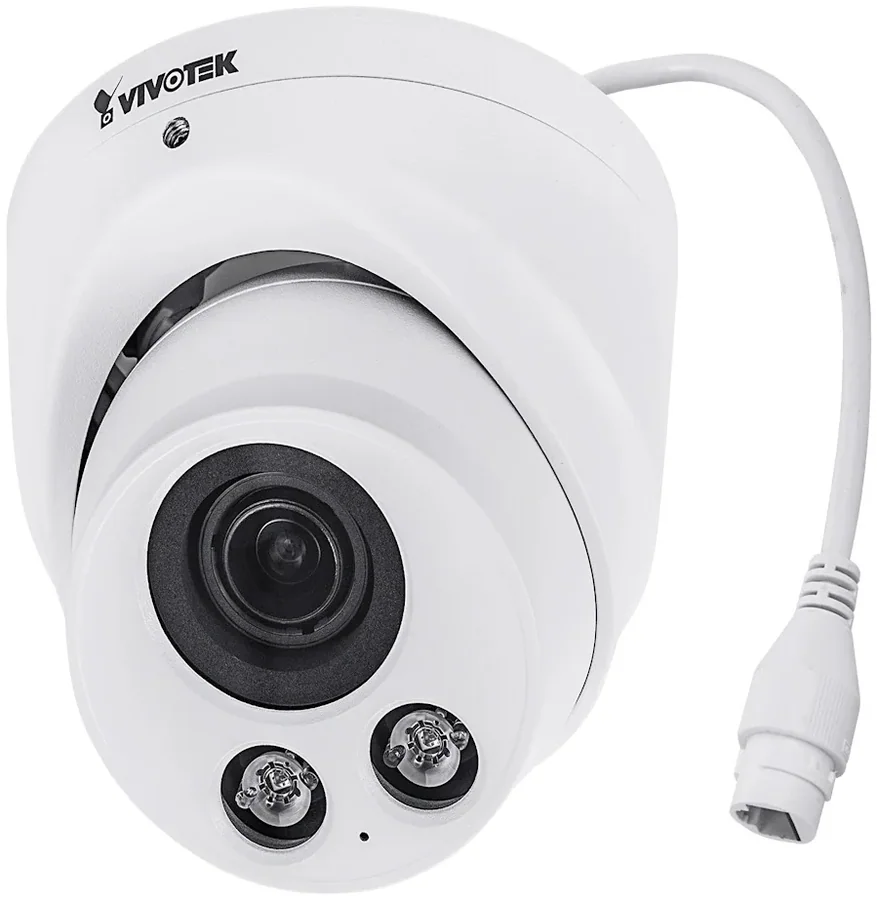

| Revew | VIVOTEK IT9388-HT 5MP 2.8-12mm Remote Focus Outdoor Turret Network CameraThe VIVOTEK IT9388-HT is an outdoor turret network camera with a 1/2.7" sensor that records 5MP (2560x1920) at 20fps. Its 2.8-12 mm F1.4-F2.8 motorized lens allows remote zoom and focus between a 90° and a 30° horizontal field of view, suited to parking lots, shops, institutions and building fronts. WDR Pro with a 120dB range and SNV for low light keep the image clear, and two IR LEDs reach up to 30 m. The camera has a built-in microphone, is powered over PoE, records to a microSD card or NAS and is protected by Trend Micro IoT Security, and its housing is rated IP66 and IK10.
Key features- 2.8-12 mm motorized lens - Remote zoom and focus with a 90° to 30° horizontal field of view and F1.4 at the wide end.
- 5MP with WDR Pro - 2560x1920 at 20fps, a 120dB dynamic range and SNV for low light.
- Night vision up to 30 m - Two IR LEDs with Smart IR and a removable IR-cut filter. Sensitivity of 0.035 lux in color and 0 lux with IR.
- Flexible adjustment - A turret design with Pan 360°, Tilt 70° and Rotation 360° for precise aiming.
- Built-in microphone - One-way audio with a 5 m range, and audio detection as an event trigger alongside motion and tampering detection.
- Durability and security - An IP66 and IK10 housing that works from -30°C to 60°C, PoE 802.3af Class 0 power and Trend Micro IoT Security.
Specifications| Manufacturer | VIVOTEK | | Model | IT9388-HT | | Type | Outdoor turret dome camera | | Image sensor | 1/2.7" Progressive CMOS | | Resolution and frame rate | 2560x1920 (5MP) at 20fps | | Lens | Motorized vari-focal 2.8-12 mm, F1.4-F2.8, remote zoom and focus | | Field of view | 90°-30° horizontal, 65°-23° vertical, 115°-38° diagonal | | IR illumination | 2 LEDs, up to 30 m, Smart IR | | Minimum illumination | 0.035 lux in color, below 0.005 lux in B/W, 0 lux with IR | | Image enhancement | WDR Pro 120dB, S/N 61dB, 3DNR, Defog, BLC, HLC | | Compression | H.265, H.264, MJPEG, up to 3 streams, Smart Stream III | | Audio | Built-in microphone up to 5 m, G.711/G.726 | | Storage | microSD/SDHC/SDXC, recording to NAS | | Network | RJ-45 10/100Mbps, ONVIF Profile G/S/T, up to 10 viewers | | Power input and consumption | PoE 802.3af Class 0, max. 9.8W (IR on), 6.29W (IR off) | | Adjustment range | Pan 360°, Tilt 70°, Rotation 360° | | Protection | IP66, IK10 | | Operating temperature | Working: -30°C to 60°C, starting: -10°C to 60°C | | Dimensions and weight | Ø120 x 90.5 mm, 625 g | | Color | White |
In the box- VIVOTEK IT9388-HT camera
- Alignment sticker
- Screw pack
- Cable gland
- Quick installation guide
|
