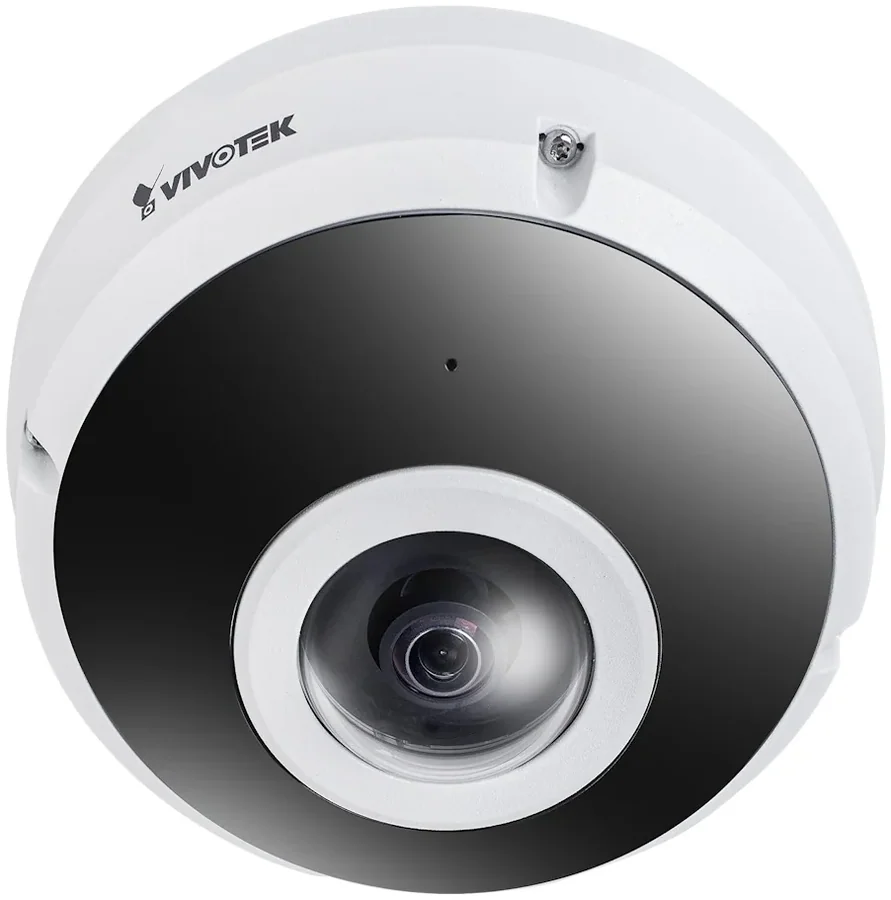

| Revew | VIVOTEK FE9391-EHV-V2 12MP Outdoor Fisheye IP CameraThe VIVOTEK FE9391-EHV-V2 is an outdoor fisheye camera with a 12MP sensor and a 1.22 mm lens that covers 360° from a single mounting point, replacing several standard cameras in open areas such as lobbies, parking lots, warehouses and yards. Dewarping is available both in the camera (local dewarp) and in the viewing software (client dewarp), with panoramic, multi-region and full fisheye views. The camera offers 120dB WDR Pro, smart IR up to 20 m, a deep learning accelerator for people and vehicle detection, and two-way audio with a built-in microphone. It is powered by 802.3at PoE, and its metal housing is rated IP66, IK10 and NEMA 4X.
Key features- 360° coverage from one camera - A 1/2.3 inch sensor and 1.22 mm lens at 2944x2944 cover the whole space from a ceiling or wall mount.
- Local and client dewarping - 1O, 1P, 2P, 1R, 4R and more views show a panorama or several regions at once without distortion.
- AI video analytics - People and vehicle detection, Smart Motion Detection and Smart VCA: intrusion, loitering, line crossing, unattended or missing object, face and crowd detection.
- Vision in difficult lighting - 120dB WDR Pro and four IR LEDs with Smart IR II for a range of up to 20 m.
- Two-way audio - A built-in microphone with an effective range of about 5 m, with external audio input and output on the I/O cable version.
- Rugged metal housing - IP66, IK10 and NEMA 4X, with a working temperature of -40°C to 55°C.
Specifications| Manufacturer | VIVOTEK | | Model | FE9391-EHV-V2 | | Type | Outdoor fisheye network camera | | Image sensor | 1/2.3" Progressive CMOS, 4056x3040 | | Resolution | 2944x2944 | | Lens | Fixed 1.22 mm, F2.0 | | Field of view | 180° horizontal, vertical and diagonal (360° panoramic) | | WDR | WDR Pro, 120dB | | IR illumination | Up to 20 m, Smart IR II, 4 LEDs | | Minimum illumination | 0.1 lux color, <0.005 lux B/W, 0 lux with IR | | Frame rate | 30fps at 2944x2944 (WDR off), 20fps (WDR on) | | Compression | H.265, H.264, MJPEG, Smart Stream III | | Dewarping | Local and client dewarp, ceiling or wall mount | | Audio | Two-way, built-in microphone | | Storage | microSD/SDHC/SDXC, NAS recording | | Network | RJ-45 10/100Mbps, ONVIF Profile G/S/T | | Power | PoE IEEE 802.3at Class 4, max. 22.5W | | Protection | IP66, IK10, NEMA 4X | | Working temperature | -40°C to 55°C (IR off), -40°C to 50°C (IR on) | | Dimensions and weight | Ø150 x 68.2 mm, 701 g |
In the box- FE9391-EHV-V2 camera
- Quick installation guide
- Alignment sticker
- Desiccant bag
- Screwdriver
- Screw pack
|
