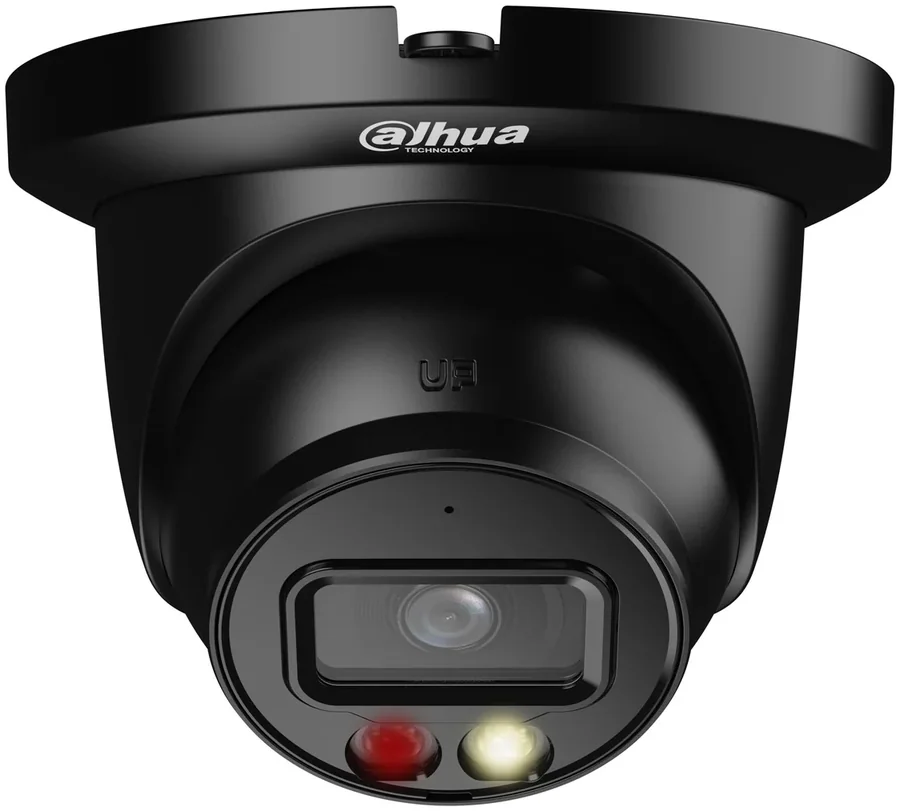

| Revew | Eyeball IP Camera DAHUA IPC-HDW2449TM-S-IL 4MP 2.8mm BlackThe DAHUA IPC-HDW2449TM-S-IL in black is an eyeball network camera from the WizSense 2 series with a 1/2.9" 4MP sensor and a fixed 2.8 mm lens. Its 95° horizontal view suits entrances, shops, offices, yards and private parking. Smart Dual Light combines IR and warm light up to 30 m: at night IR is on, and when a person or vehicle is detected the warm light switches on and the camera records the event in colour. The camera detects tripwire and intrusion with human and vehicle classification and SMD Plus, has a built-in mic, MicroSD up to 256GB, runs on PoE or 12 V and is IP67 rated.
Key features- 4MP with a 2.8 mm lens - 1/2.9" CMOS sensor at 2688x1520 and 20 fps or 2560x1440 at 25/30 fps, an F1.6 lens and 120dB WDR.
- Smart Dual Light up to 30 m - IR and warm light LEDs with 3 illumination modes. In smart mode the warm light turns on only when a target is detected, giving colour footage of the event without constant light pollution.
- Human and vehicle classification - Deep learning tripwire and intrusion, plus SMD Plus that filters false alarms from leaves, animals and lighting changes.
- DORI distances - With the 2.8 mm lens: detect 63.6 m, observe 25.4 m, recognise 12.7 m and identify 6.4 m.
- Mic and storage - Built-in mic, MicroSD up to 256GB for on-camera recording and FTP/SFTP support.
- Easy installation - 12 VDC or PoE (802.3af) power, a metal housing with a plastic decoration ring, IP67 and ONVIF Profile S/G/T support.
Specifications| Manufacturer | DAHUA | | Model | DH-IPC-HDW2449TM-S-IL-0280B-BLACK | | Series | WizSense 2 | | Type | Eyeball network camera, black | | Sensor | 1/2.9" CMOS, 4MP (2688x1520) | | Lens | Fixed 2.8 mm, F1.6 | | Field of view | H: 95°, V: 52°, D: 114° | | Minimum illumination | Colour 0.006 lux, B/W 0.0006 lux, 0 lux with illuminator | | Illumination | Smart Dual Light: IR up to 30 m, warm light up to 30 m | | WDR | 120dB | | Analytics | Tripwire and intrusion with human/vehicle classification, SMD Plus | | Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG; 2 streams | | Network | RJ-45 10/100, ONVIF Profile S/G/T | | Storage | MicroSD up to 256GB, FTP/SFTP | | Audio | Built-in mic | | Power | 12 VDC, PoE (802.3af) | | Power consumption | Up to 4.4W (12 VDC), up to 5.2W (PoE) | | Protection | IP67 | | Operating temperature | -40°C to +60°C | | Dimensions and weight | 99.1 x Φ121.9 mm, 0.46 kg |
|
