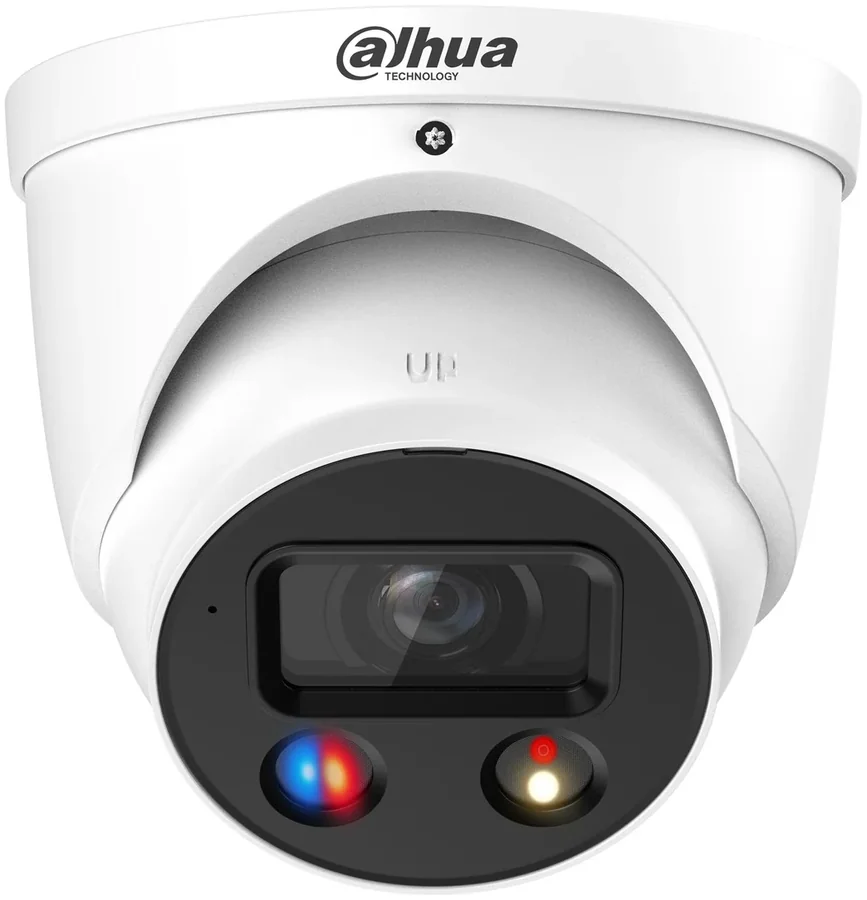

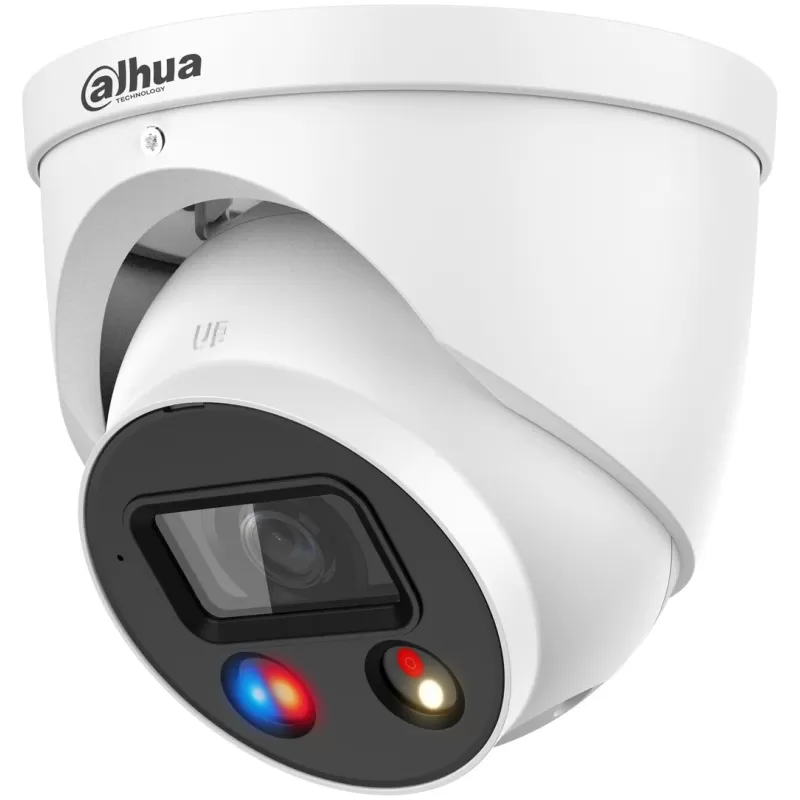

| Revew | DAHUA IPC-HDW3549H-AS-PV 5MP 2.8mm Eyeball IP CameraThe DAHUA IPC-HDW3549H-AS-PV is a WizSense 3 eyeball network camera with a 1/2.7" 5MP CMOS sensor (2960x1668) and a fixed 2.8 mm F1.0 lens. Its 97° horizontal field of view suits entrances, yards, shops, offices and private driveways. The camera combines an IR illuminator and a warm light with Smart Dual Light: IR is used at night, and when a person or vehicle is detected the warm light switches on so the event is recorded in full color. On intrusion it triggers active deterrence with red and blue lights and a siren, and the built-in dual mics and speaker let you talk to whoever is in front of the camera. It is powered by PoE or 12 VDC and has an IP67 metal housing.
Key features- Smart Dual Light - IR and warm light illuminators, each reaching up to 30 m. In smart mode the camera switches to full color only when a target is detected, so you get color details of the event without constant light pollution.
- Active deterrence - Flashing red and blue lights and a siren of up to 110 dB trigger automatically when a perimeter rule is violated. Choose a built-in voice message or import your own, and disarm alerts with one tap in the app.
- Two-way audio - Dual built-in mics and a speaker let you listen and talk through the camera from the DMSS app or management software, plus 1/1 audio in/out and 1/1 alarm in/out.
- AI analytics - Tripwire and intrusion with human and vehicle classification, stay and loitering detection, face detection and SMD 4.0 that filters false alarms from animals and leaves. With a Dahua recorder, AcuPick finds people and vehicles in recordings.
- Image and compression - 120 dB true WDR, 3D NR, HLC and BLC for a clear image against backlight, plus AI H.265 and Smart H.265+ coding that saves bandwidth and storage. Three simultaneous streams.
- Easy installation - PoE or 12 VDC power, up to 8.8 W consumption, Micro SD up to 512 GB, ONVIF support and operation from -40°C to +60°C.
Specifications| Manufacturer | Dahua | | Model | IPC-HDW3549H-AS-PV | | Camera type | Eyeball, fixed lens | | Image sensor | 1/2.7" CMOS | | Resolution | 5MP (2960x1668) up to 20 fps, 2688x1520 up to 30 fps | | Lens | 2.8 mm, F1.0 | | Field of view | H 97°, V 70°, D 128° | | Min. illumination | Color 0.003 lux, B/W 0.0003 lux, 0 lux with illuminator | | Illumination | IR up to 30 m and warm light up to 30 m, Smart Dual Light | | Active deterrence | Red and blue lights, siren up to 110 dB | | Analytics | Tripwire, intrusion, stay, loitering, face detection, SMD 4.0, AcuPick, AI SSA | | WDR | 120 dB | | Video compression | H.265, H.264, AI H.265/H.264, Smart H.265+/H.264+ | | Audio | Dual built-in mics and speaker, 1 in, 1 out | | Alarm | 1 in, 1 out | | Storage | Micro SD up to 512 GB, FTP, SFTP, NAS | | Network | RJ-45 10/100, ONVIF (Profile S/G/T) | | Power | 12 VDC or PoE, up to 8.8 W | | Protection | IP67, metal housing, -40°C to +60°C | | Dimensions and weight | Φ122 x 110.9 mm, 0.75 kg |
|
