IP PTZ DAHUA SD1A404DB-GNY 4MP 4x DH-SD1A404DB-GNY Color:white

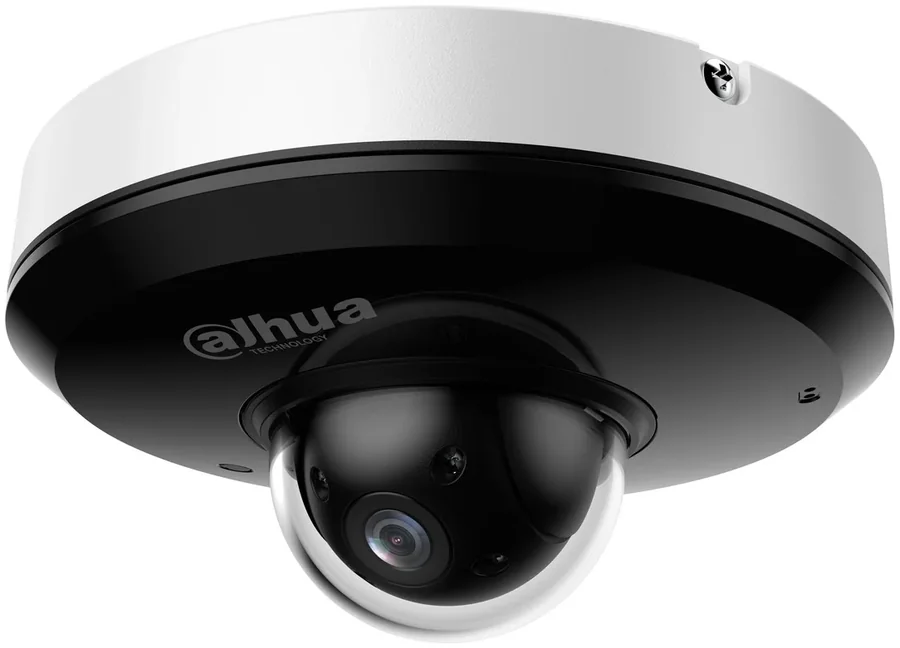

DAHUA SD1A404DB-GNY 4MP 4x PTZ IP Camera

The DAHUA SD1A404DB-GNY is a compact WizSense PTZ camera with a 1/2.8" 4MP CMOS sensor (2560x1440) at 25/30 fps and a 2.8-12 mm motorized lens with 4x optical zoom. It pans 355° and tilts up to 90°, so a single camera can cover a whole yard, parking area, lobby or shop.

Starlight technology keeps the image in color in low light, and three IR LEDs illuminate up to 20 m in total darkness. The camera runs perimeter protection with human classification, face detection, people counting and queue management and SMD 3.0, and supports 300 presets and 8 tours. It is powered by PoE or 12 VDC and the housing is IP66 and IK08 rated with TVS 6000 V lightning protection.

Key features

• 4x optical zoom and full pan - 2.8-12 mm motorized lens (96.9° to 31.6° horizontal field of view), 355° pan and 5° to 90° tilt, preset speed up to 80°/s, 300 presets and 8 tours.
• Starlight and 20 m IR - 1/2.8" sensor with 0.005 lux color and 0.0005 lux B/W minimum illumination, plus three IR LEDs with Smart IR for up to 20 m in total darkness.
• Smart perimeter protection - Tripwire, intrusion, fence crossing, loitering, abandoned or missing object, fast moving, parking and people gathering, with human classification that filters false alarms. SMD 3.0 alerts only on people and vehicles.
• Face detection and people counting - Face detection with snapshot and face enhancement, people counting across a line or in an area and queue management, with reports for line counting.
• Image and compression - 120 dB true WDR, electronic image stabilization (EIS), defog, 16x digital zoom and Smart H.265+ coding that saves bandwidth and storage. Three simultaneous streams.
• Installation and protection - PoE (802.3af) or 12 VDC, built-in mic and audio in/out, Micro SD up to 512 GB, IP66 and IK08, TVS 6000 V lightning protection and operation from -30°C to +60°C.
