IP DAHUA TPC-BF5641-B19F12 Color:white

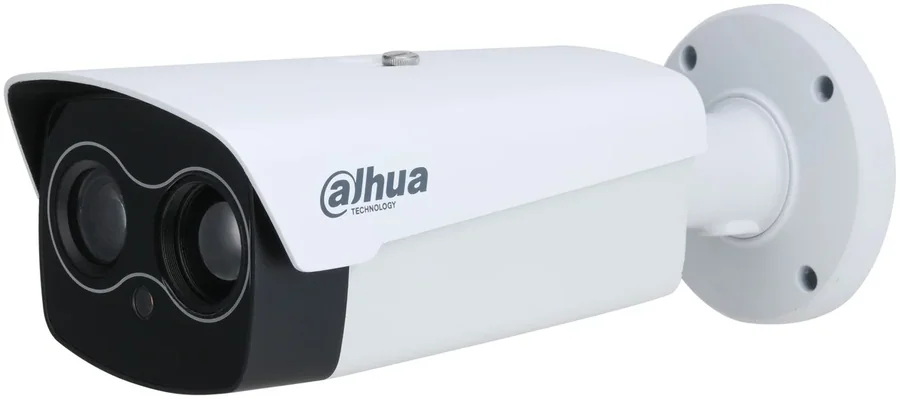

Thermal IP Camera DAHUA TPC-BF5641-B19F12

The DAHUA TPC-BF5641-B19F12 is a TPC5 series hybrid bullet camera that combines a thermal channel and a visible channel in one device. The 640x512 uncooled VOx thermal sensor with a 19 mm lens sees people and vehicles in total darkness, smoke and fog, while the 4MP visible camera with a 12 mm lens provides a colour image for details. It suits perimeter protection of fences and yards at medium-long range.

AI analytics include heat detection, smoke detection, hot and cold spot tracing, and tripwire and intrusion with human/vehicle classification to reduce false alarms. On an event the camera triggers white light and a local audio alarm. The housing is IP67 rated, works from -30°C to +70°C and runs on 12 VDC or PoE with ePoE for long cable runs.

Key features

• Two channels in one device - 640x512 thermal channel (12μm, NETD ≤35 mK) with a 19 mm lens and 22.9° x 18.4° field of view, and a 4MP visible channel (2688x1520, 1/1.8") with a 12 mm F1.7 lens. Fusion mode and picture-in-picture (PIP).
• Detection range - Detects people up to 792 m and vehicles up to 2,436 m; classifies people up to 204 m and vehicles up to 597 m (Dahua test conditions).
• Smart perimeter protection - Tripwire and intrusion with human/vehicle classification and target tracking. Perimeter protection range: people up to 152 m and vehicles up to 456 m.
• Heat and smoke detection - Heat detection and alarm (up to 114 m for a 0.2x0.2 m target), hot and cold spot tracing and smoke detection for early fire warning.
• Active deterrence - White light and local audio alarm on events, two-way audio, 2 alarm inputs and 2 outputs, and 18 colour palettes for the thermal image.
• Built for the field - IP67 housing with 6kV surge protection, -30°C to +70°C operation, 12 VDC or PoE (802.3af) power with ePoE, and a MicroSD card up to 512GB.
