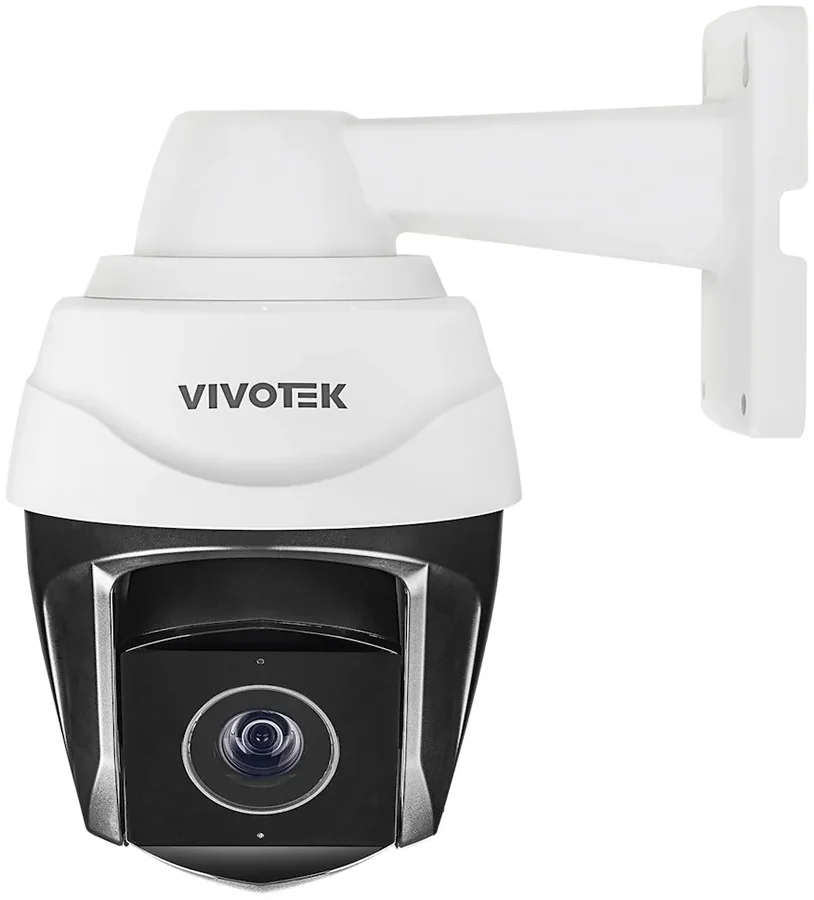

| Revew | VIVOTEK SD9384-EHL 5MP 30x Outdoor PTZ Speed Dome IP CameraThe VIVOTEK SD9384-EHL is a 5MP outdoor speed dome with a 30x optical zoom lens (4.94-148.24 mm) and auto focus. Continuous 360° pan, movement at up to 450° per second and 256 presets let it cover large open areas such as parking lots, building perimeters and infrastructure sites. Smart IR up to 200 m and 120dB WDR Pro keep the image clear by day and night, and the built-in AI engine detects people and vehicles and tracks them automatically. The camera runs on 802.3bt PoE, DC 48V or AC 24V with power redundancy, and its IP66/IK10/NEMA 4X housing works from -40°C to 60°C.
Key features- 30x optical zoom - A 4.94-148.24 mm lens with auto focus and DC-iris captures details at long range, plus 32x digital zoom.
- Smart auto-tracking - Smart Tracking Advanced detects people and vehicles and follows them automatically, with intrusion, loitering, line crossing and face detection rules.
- IR up to 200 m - Eight IR LEDs with Smart IR give a clear image in total darkness over a large area.
- Fast and precise movement - Continuous 360° pan, -20° to 90° tilt with auto flip, speeds of up to 450° per second, 256 presets and Auto Pan and Auto Patrol modes.
- Flexible redundant power - PoE IEEE 802.3bt Class 6, DC 48V or AC 24V, with support for several sources connected at the same time.
- Built for harsh conditions - IP66, IK10 and NEMA 4X housing, working temperature of -40°C to 60°C and humidity up to 98%.
Specifications| Manufacturer | VIVOTEK | | Model | SD9384-EHL | | Type | Outdoor PTZ speed dome network camera | | Image sensor | 1/2.8" Progressive CMOS | | Resolution | 2560x1920 (5MP) | | Lens | 30x optical zoom, 4.94-148.24 mm, F1.3-F4.6, auto focus, DC-iris | | Horizontal field of view | 54.1° to 1.9° | | WDR | WDR Pro, 120dB | | IR illumination | Up to 200 m, Smart IR, 8 LEDs | | Minimum illumination | 0.03 lux color, 0.005 lux B/W, 0 lux with IR | | Pan / Tilt | 360° endless, -20° to 90° (auto flip), up to 450°/s | | Presets | 256 presets, up to 128 per tour | | Frame rate | 30fps at 2560x1920, 60fps at 1920x1080 | | Compression | H.265, H.264, MJPEG, Smart Stream III | | Audio | Two-way, line input and line output | | I/O | 2 digital inputs, 1 digital output, RS-485 | | Storage | microSD/SDHC/SDXC, NAS recording | | Power | PoE 802.3bt Class 6, DC 48V, AC 24V, max. 51W | | Protection | IP66, IK10, NEMA 4X, -40°C to 60°C | | Dimensions and weight | 256 x 336 mm, 7.1 kg |
In the box- SD9384-EHL camera
- Wall mount bracket
- Screws and anchors
- T10 and T25 L-wrenches
- Waterproof round cap
- Quick installation guide
- Terminal blocks (DI/DO, audio, AC/DC/GND, RS-485)
- Ground wire
|
