Camera Provision-ISR DI-320A-28 2MP Turret DI-320A-28

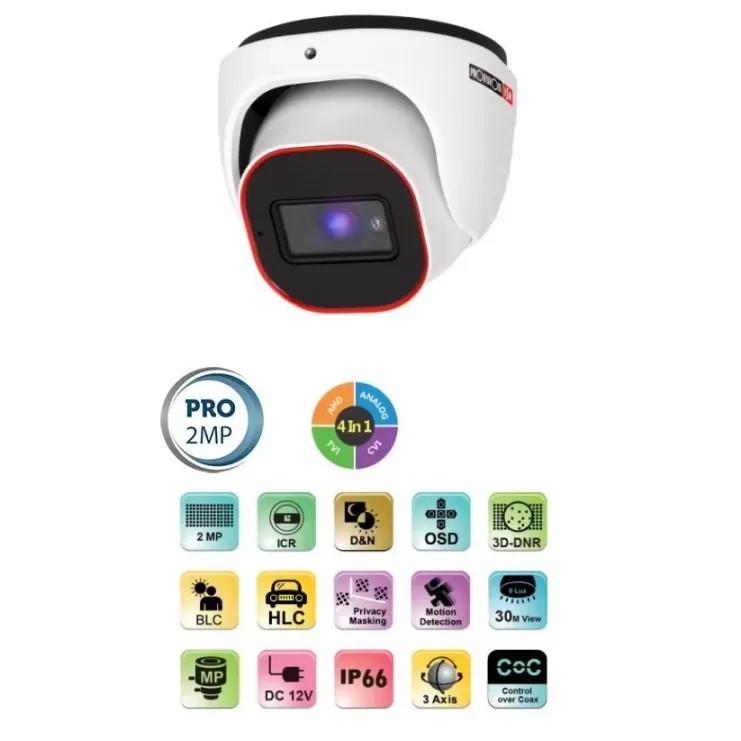

Provision-ISR DI-320A-28 2MP Turret Analog Camera

The Provision-ISR DI-320A-28 is a small analog turret camera from the Pro series, with 2MP resolution and a fixed 2.8mm lens. It is designed for short-distance surveillance systems of up to 20 meters, indoors and outdoors.

The camera supports 4in1 technology, and a protected DIP switch selects AHD, TVI, CVI or CVBS output. This makes it suitable for installation on existing analog infrastructure as Plug & Play.

Key features

• 2MP and 4in1 output - A 1/2.9 inch CMOS sensor with 1920x1080 resolution. AHD, TVI, CVI or CVBS (PAL/NTSC) output is selected with a protected DIP switch.
• Fixed 2.8mm lens - A fixed M12 lens with a wide 88° field of view, suited to rooms, entrances and short ranges of up to about 20 meters.
• Night vision up to 20 meters - One high-power IR LED with a 20 meter range, an ICR filter for true day and night operation and a color sensitivity of 0.005 lux.
• Built for outdoor use - IP67 protection, a 3-axis bracket and a small turret body 97 mm in diameter.
• Noise reduction and CoC - 3D-DNR noise reduction for a clean picture in low light, and CoC (Coax Control) support, through which the OSD menu is accessed.
