HDCVI DAHUA HAC-HDW1509T-IL-A 5MP 2.8mm DH-HAC-HDW1509TP-IL-A Color:white

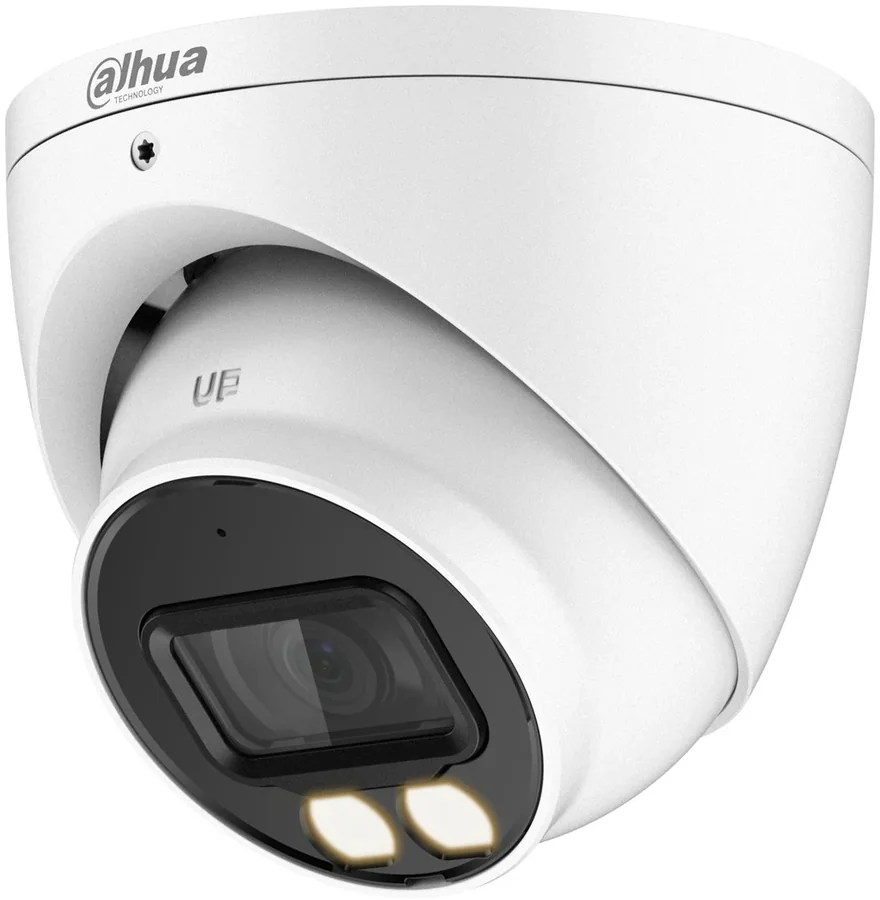

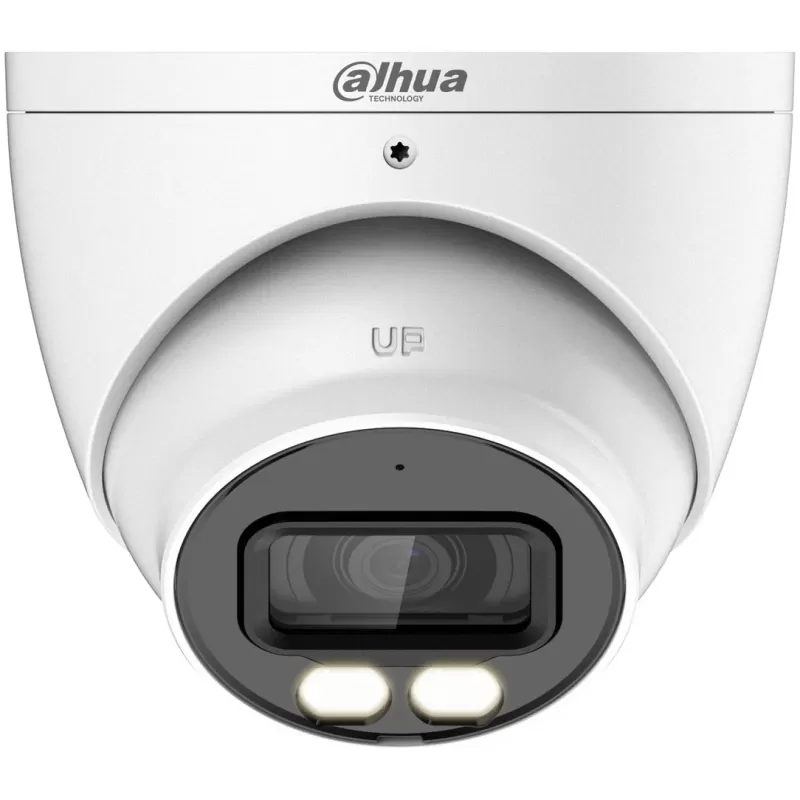

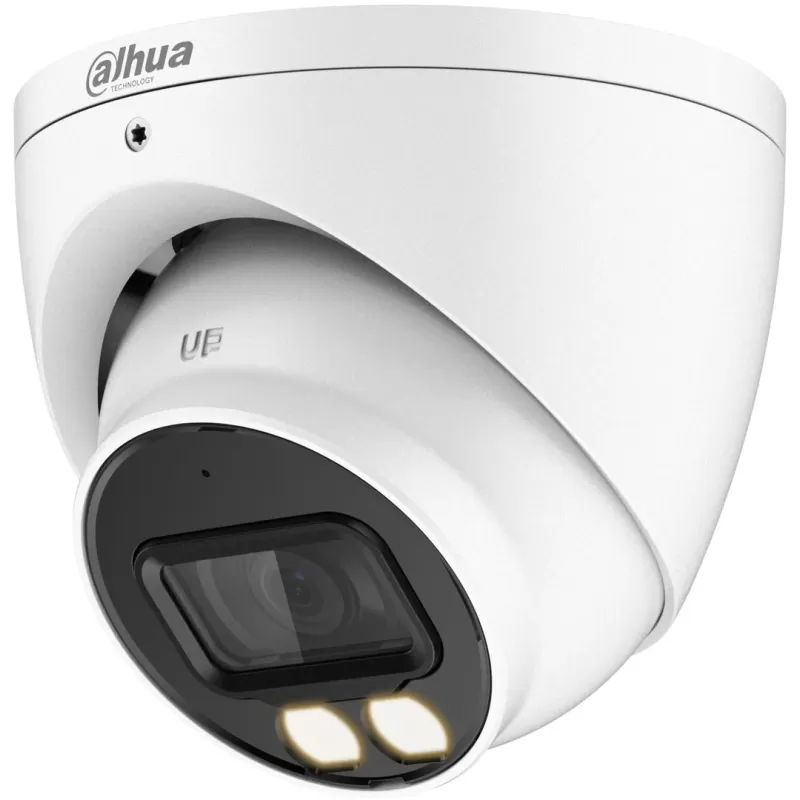

DAHUA HAC-HDW1509T-IL-A 5MP 2.8mm HDCVI Eyeball Camera

The DAHUA HAC-HDW1509T-IL-A is a Lite series analog eyeball camera with 5MP resolution (2880x1620) at 25 fps and a fixed 2.8 mm F1.0 lens with a wide 111° horizontal field of view. It connects to a DVR/XVR over coaxial cable, works in switchable HDCVI, TVI, AHD or CVBS mode and suits entrances, corridors, shops and balconies.

Smart Dual Light works together with a DAHUA AI XVR: when the recorder detects a person or vehicle in the rule area the warm light turns on and the image switches to color, and when the target leaves the camera returns to IR. Illumination reaches 40 m, 120 dB true WDR handles high-contrast scenes and the built-in mic sends audio over the same coaxial cable. The housing is IP67 rated.

Key features

• 5MP with a wide view - 5MP sensor, 2880x1620 at 25 fps, 2.8 mm F1.0 lens with a 111° horizontal field of view and 0.001 lux color sensitivity.
• Smart Dual Light up to 40 m - 2 IR LEDs and 2 warm light LEDs up to 40 m. With a DAHUA AI XVR the warm light turns on only when a target is detected in the area, reducing light pollution.
• 4 signals over one cable - One BNC output with switchable CVI, TVI, AHD or CVBS. HDCVI carries video, audio, data and power over one coaxial cable up to 700 m.
• WDR and 3D NR - 120 dB true WDR, 3D NR, BLC, HLC and electronic defog for clear images in difficult lighting.
• Built-in mic - Broadcast-quality audio sent over the coaxial cable together with video, for audio evidence of events.
• Installation and protection - 12 VDC power with ±30% tolerance, up to 5.7 W, 3-axis adjustment, IP67 and operation from -40°C to +60°C.
