DAHUA PFA152-E DH-PFA152-E Color:white

Pole Mount Bracket DAHUA PFA152-E

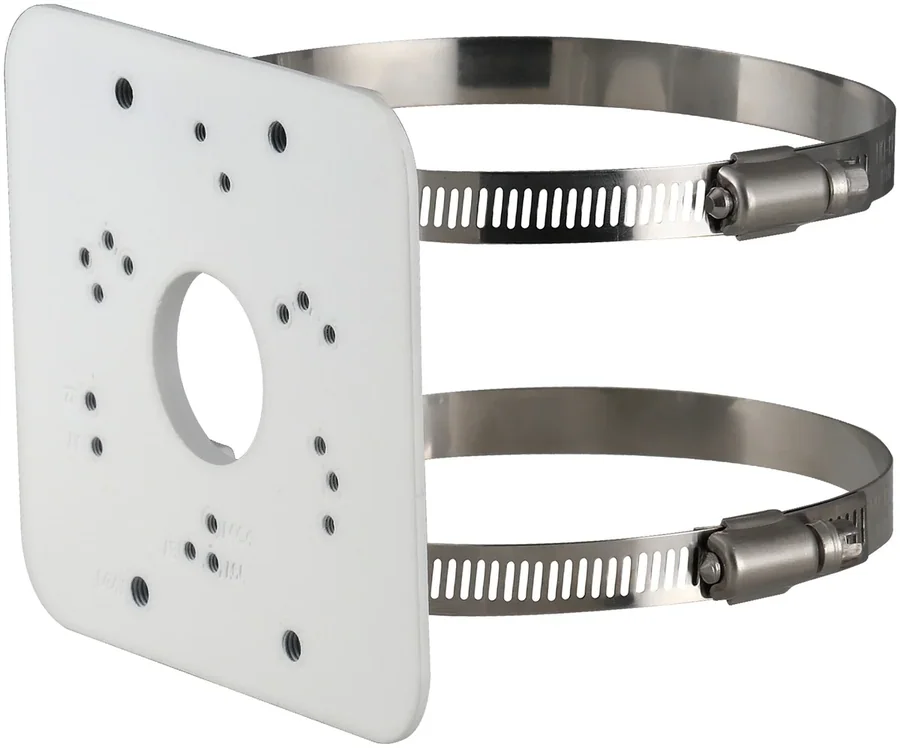

The Dahua PFA152-E is a bracket for mounting a security camera on a pole: a white aluminium plate that holds the camera or camera bracket, and two metal hoops that clamp it to the pole. It fits poles of 80 to 150 mm in diameter and carries a camera of up to 3 kg.

The plate is made of aluminium alloy and the hoops of SUS304 stainless steel, so the bracket is suitable for outdoor installation at -40 to +60 °C. The list of compatible cameras and brackets is given in the Dahua Camera Accessories Selection document.

Key features

• Pole installation - Two adjustable hoops clamp the bracket to a round pole of 80 to 150 mm, with no drilling in the pole.
• Durable materials - Aluminium alloy plate and SUS304 stainless steel hoops, with basic anti-corrosion protection.
• Load up to 3 kg - Suits a range of Dahua cameras and mounting brackets, according to the manufacturer accessory selection table.
• For outdoor use - Operating temperature from -40 to +60 °C and relative humidity up to 90%.
• Complete kit - M4 and M6 screws, an S5.0 wrench and two hoops are included, ready to install.

Specifications

In the box

• Pole mount bracket x1
• M4x10 screw x4
• M6x14 screw x4
• S5.0 wrench x1
• 80-150 mm metal hoop x2
