DAHUA PFA156 DH-PFA156 Color:white

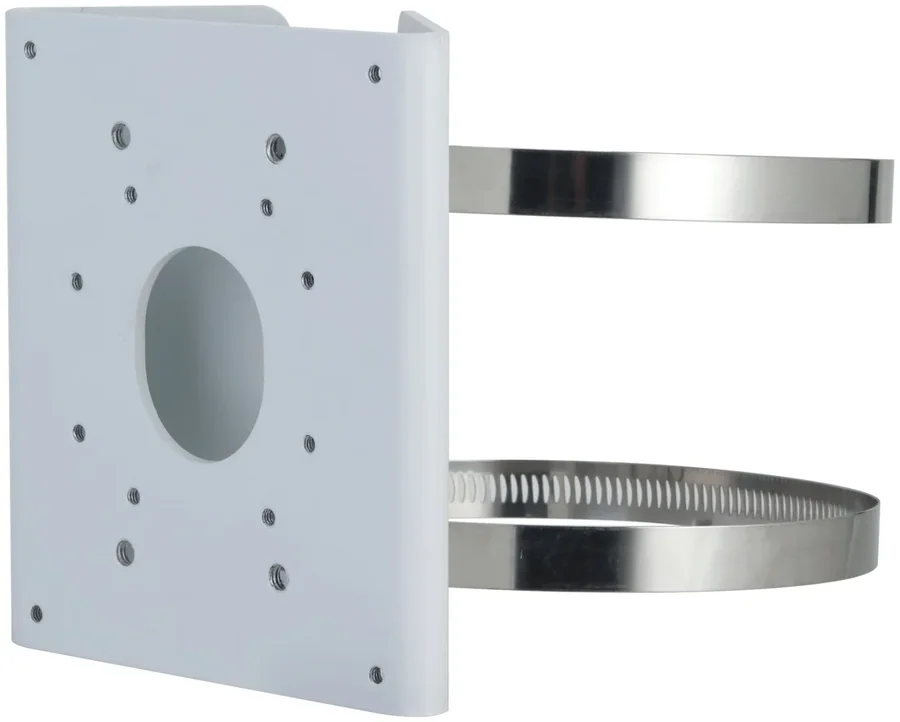

DAHUA PFA156 Pole Mount Bracket

The DAHUA PFA156 is a light, cost-effective bracket for mounting a security camera on a pole or pipe 80 to 150 mm in diameter. The plate is made of white aluminum alloy and weighs only 270 g, and two metal hoops clamp it to the pole.

A Dahua camera, junction box or bracket is fitted to the plate, and according to Dahua it suits a variety of cameras. Maximum load is 5 kg and the operating temperature is -40°C to +60°C.

Key features

• Light and cost-effective - Aluminum plate weighing only 270 g, easy to carry and install at height.
• For poles 80-150 mm wide - Two adjustable metal hoops fit round poles and pipes over a wide range of diameters.
• Suits many cameras - According to Dahua the bracket suits a variety of cameras and the manufacturer's junction boxes.
• 5 kg load - Enough for a bullet or dome camera together with a junction box.
• Outdoor use - Works from -40°C to +60°C at up to 90% humidity.

Specifications

In the box

• Pole mount bracket
• 4x M4x10 screws
• 4x M6x10 screws
• S3.0 and S5.0 hex wrenches
• 2x metal hoops
• Installation guide
