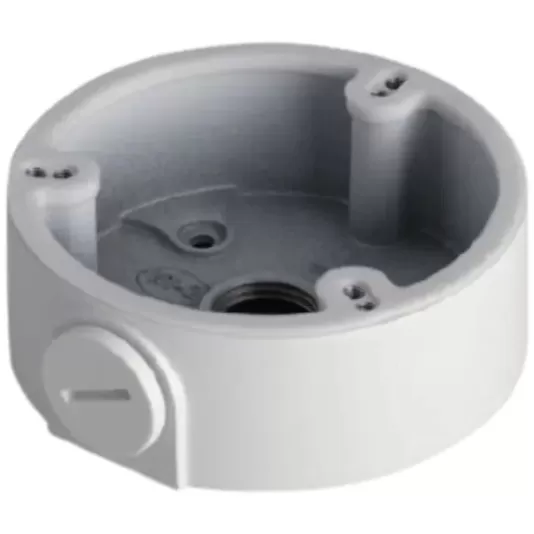

Connections DAHUA PFA135 DH-PFA135 Color:white

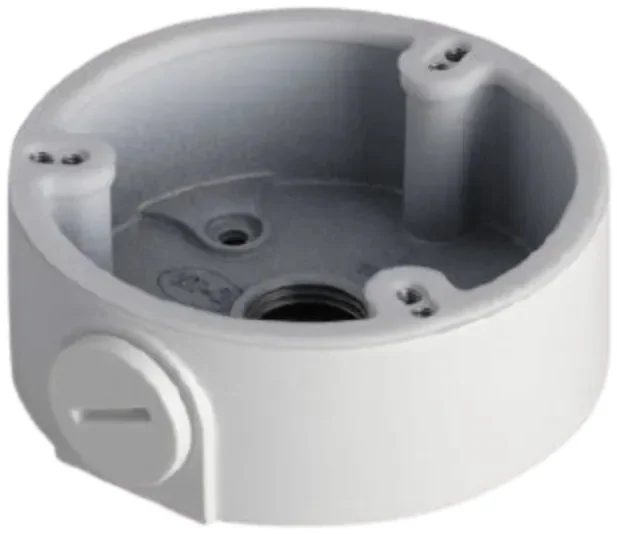

DAHUA PFA135 Camera Junction Box

The Dahua PFA135 is a junction box that mounts between the wall or ceiling and the camera. Cables and connectors are organized inside the box for a neat installation, with cable outlets at the bottom and on the side.

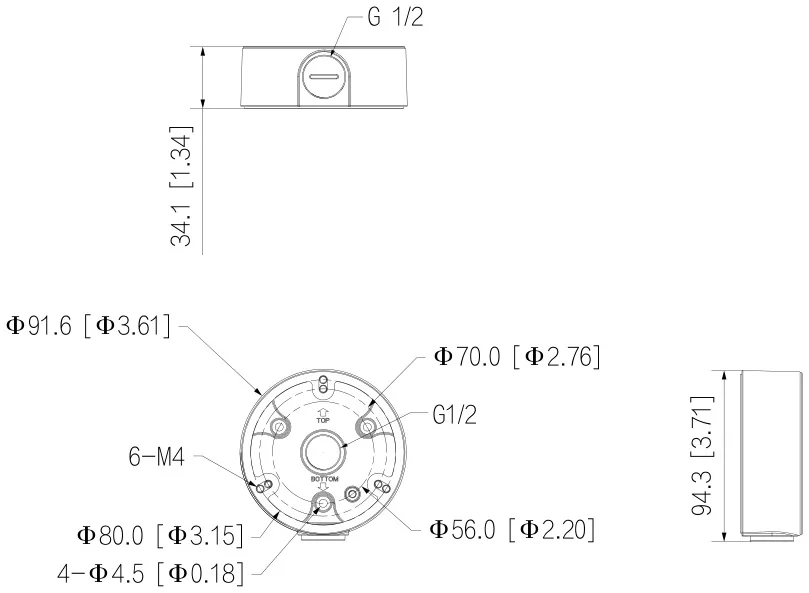

The box is made of white aluminum alloy, measures 94.3 mm in diameter and 34.1 mm in height, and bears up to 1 kg. It works at temperatures from -40°C to +60°C and humidity below 90%. Compatible camera models are listed in Dahua's Camera Accessories Selection guide.

Key features

• Tidy cable routing - Camera cables and connectors go inside the box, so no wires are left exposed under the camera.
• Aluminum body - Strong aluminum alloy with a white finish that matches the look of Dahua cameras.
• Bottom and side outlets - A cable outlet at the bottom and a side opening with a G1/2 thread give flexible installation options.
• Built for harsh conditions - Operates from -40°C to +60°C and at humidity below 90%, for indoor and outdoor installations.
• Complete installation kit - Screws, plastic expansion bolts, a wrench and a water joint are included for quick installation.

Specifications

In the box

• PFA135 junction box
• 3 x M4x10 screws
• S3.0 wrench
• 3 x ST4x25 screws
• 3 x plastic expansion bolts
• Water joint
