Connections DAHUA PFA139 DH-PFA139 Color:white

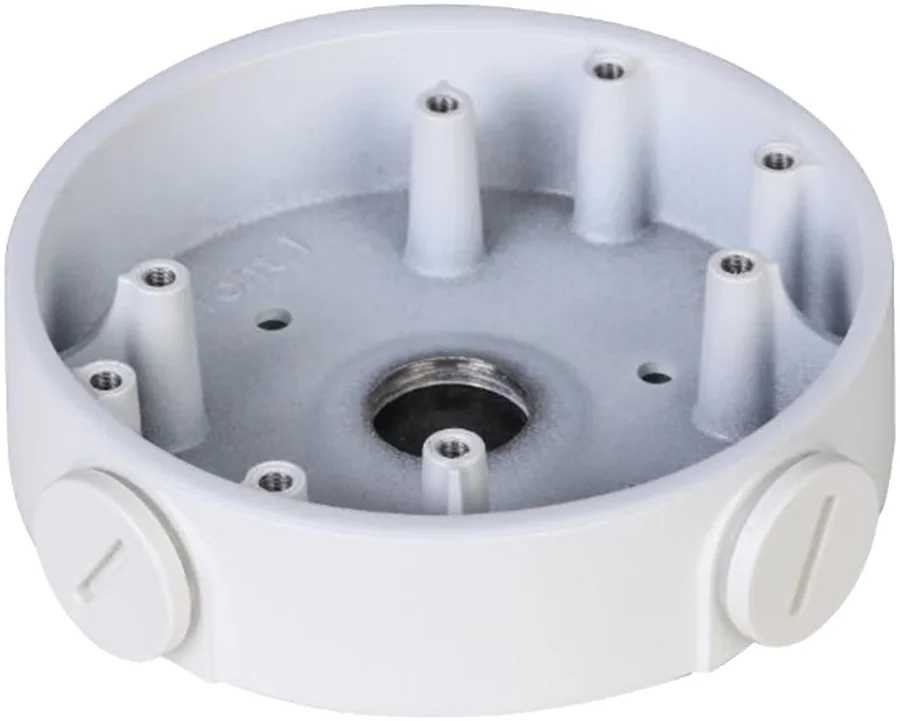

DAHUA PFA139 Camera Junction Box

The Dahua PFA139 is an extra slim junction box, only 27 mm high, that mounts between the wall or ceiling and the camera. Cables and connectors go inside the box, with cable outlets at the bottom and on the side.

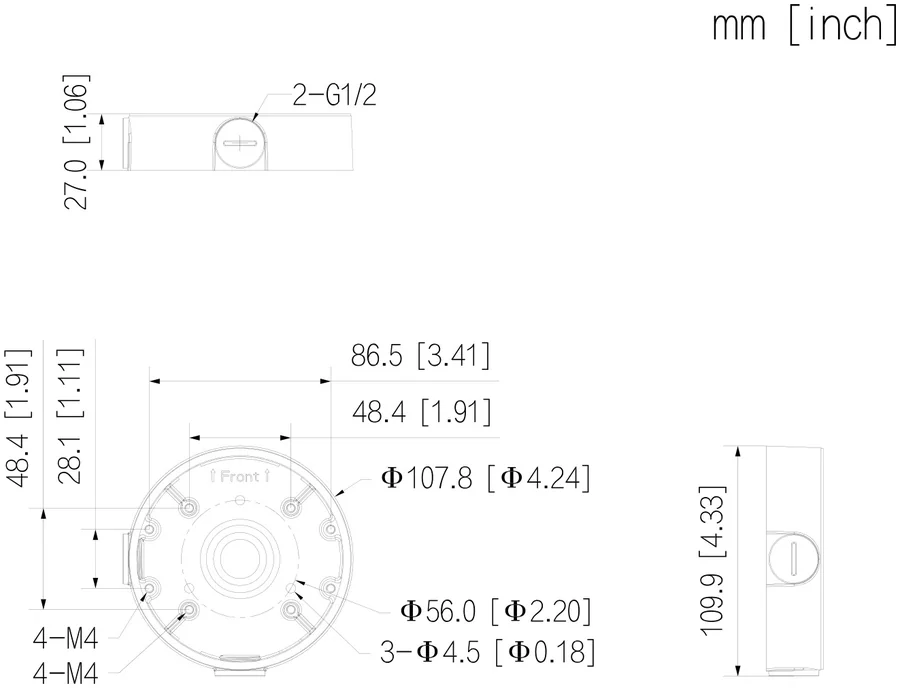

The box is made of white aluminum alloy, measures 109.9 mm in diameter and bears up to 1 kg. The side has two openings with a G1/2 thread, and it works at temperatures from -40°C to +60°C and humidity below 90%. A water joint is included.

Key features

• Low profile - Only 27 mm high, so the camera stays close to the wall or ceiling.
• Tidy cable routing - Camera cables and connectors are hidden inside the box, with no exposed wires.
• Two G1/2 outlets - Two side openings with a G1/2 thread plus a bottom outlet give flexible cable routing.
• White aluminum finish - Strong aluminum alloy that matches the look of Dahua cameras.
• Kit with water joint - Screws, plastic expansion bolts, an S3.0 wrench and a water joint for outdoor installation are included.

Specifications

In the box

• PFA139 junction box
• 3 x ST4x25 screws
• 3 x plastic expansion bolts
• 4 x M4x10 screws
• S3.0 wrench
• Water joint
