Connections DAHUA PFA5300R DH-PFA5300R Color:white

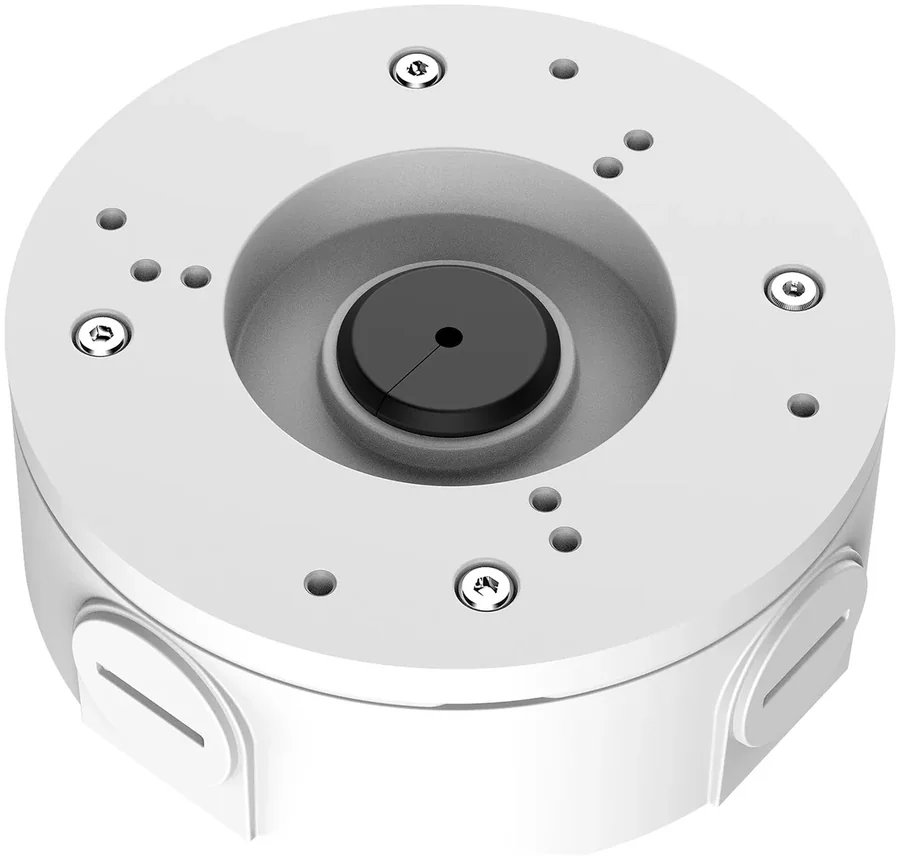

DAHUA PFA5300R Water-proof Junction Box

The DAHUA PFA5300R is a round water-proof junction box for security cameras. It is mounted on the wall or ceiling under the camera, and the network and power connections stay inside it, protected from water and dust.

The box is made of white aluminum alloy, 123.4 mm in diameter and 44.9 mm high, rated IP66, with a G3/4 thread for conduit. According to Dahua it suits a variety of cameras, carries up to 3 kg and comes with a water joint for the cable and a mounting sticker.

Key features

• IP66 protection - Dust tight and protected against water jets, suitable for outdoor installation.
• For a variety of cameras - According to Dahua the box suits a variety of the manufacturer's cameras. Matching models are listed in the Camera Accessories Selection table.
• Water joint for the cable - A water joint for the cable entry is included, and a G3/4 thread accepts protective conduit.
• Accurate installation - Mounting sticker for marking the drilling points on the wall.
• Aluminum - Round aluminum alloy body, 0.39 kg, 3 kg load.

Specifications

In the box

• Junction box
• 4x M4x10 screws
• 3x ST4x25 screws
• 3x plastic expansion bolts
• S3.0 hex wrench
• Water joint
• Mounting sticker
