Recording system for eight cameras PRO Vision DVR SH-8100A5N-2L 2MP 8CH 2TB SH-8100A5N-2L

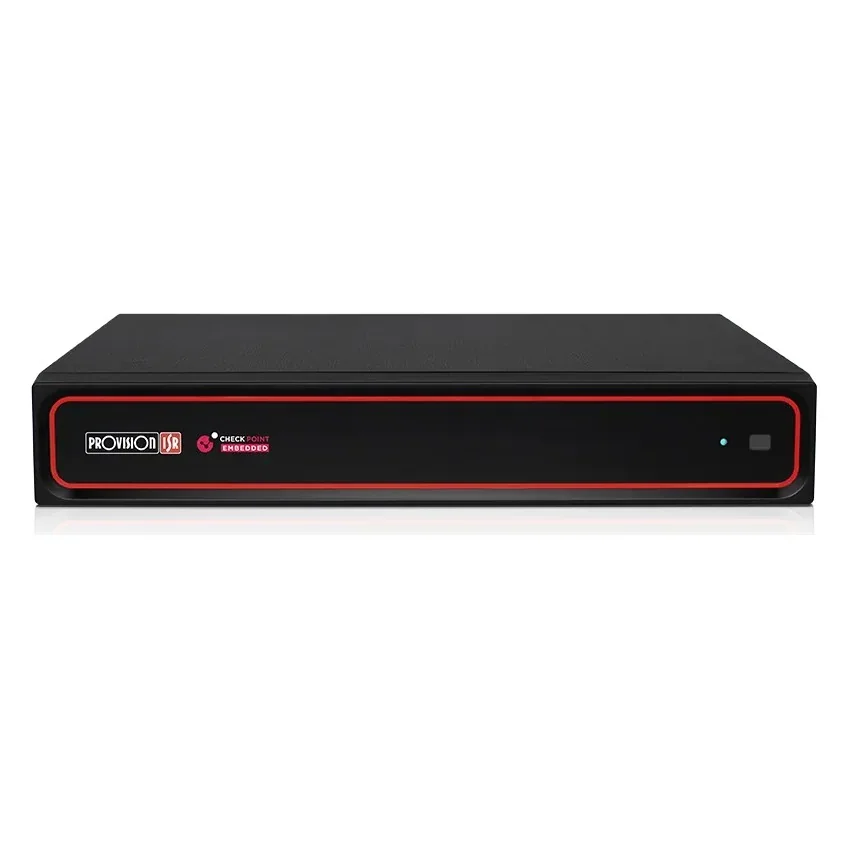

PRO Vision SH-8100A5N-2L 8-Channel Hybrid DVR with 2TB HDD

The Provision-ISR SH-8100A5N-2L is a hybrid DVR in a compact metal case with 8 BNC inputs that accept AHD, TVI, CVI and CVBS cameras, plus 2 IP camera channels over the network. All channels can also be switched to IP for up to 10 network cameras, so an existing system can be upgraded gradually.

Recording uses H.265/H.264 compression, with HDMI and VGA outputs for a monitor. Remote viewing is available in the Provision Cam2 app, Ossia VMS software and a web browser. The kit includes a 2TB hard drive.

Key features

• 4-in-1 hybrid with IP - 8 BNC channels for AHD, TVI, CVI and CVBS, plus 2 IP channels. Alternatively, it can run 10 IP channels with no analog channels.
• Recording up to 2MP Lite - HD analog cameras are recorded at 2MP Lite at up to 12/15 frames per second per channel, and IP cameras at up to 5MP.
• H.265 compression - H.265 (HEVC) reduces recording size, so the same disk holds more days of video. The unit takes one hard drive of up to 6TB.
• Remote viewing - The Provision Cam2 app for iOS and Android, Ossia VMS software for PC and Mac, and browser access, with up to 5 users online at once.
• Analytics - Line crossing and sterile area detection on analog cameras, plus support for IP camera analytics: line crossing with direction, object monitoring, camera tampering and smart search.
• Connections - HDMI (1920x1080) and VGA outputs, RCA audio in and out, two-way audio, PTZ control over CoC or network, and two USB 2.0 ports for backup.

Specifications
