16 DAHUA NVR5216-XI DHI-NVR5216-XI Color:black

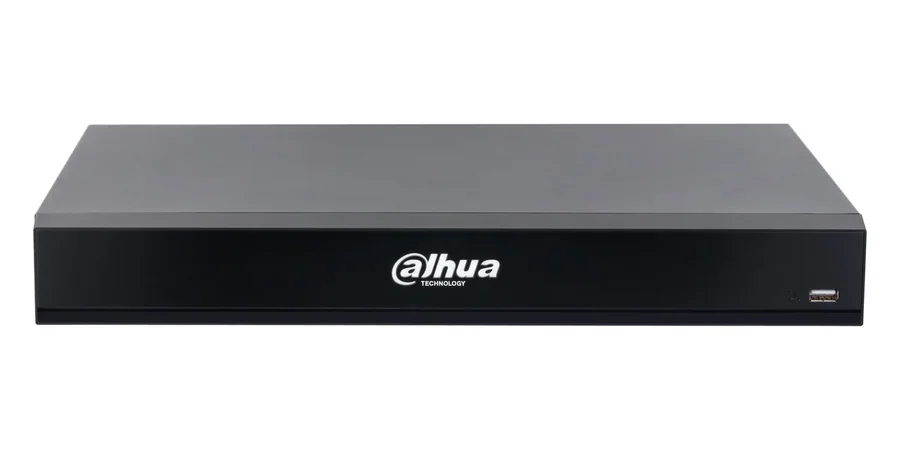

16-Channel NVR DAHUA NVR5216-XI

The DAHUA NVR5216-XI is a WizMind network video recorder (NVR) for 16 IP cameras in a compact desktop chassis. It accepts cameras up to 32MP, handles 512/512/512 Mbps incoming/recording/outgoing bandwidth and decodes up to 16 x 4MP@30 fps, with Smart H.265+ and H.264+ compression to save storage.

The recorder offers 2 SATA bays for disks of up to 20TB each, 1 x HDMI (4K), 1 x VGA outputs and 1 x RJ45 10/100/1000 Mbps. On-device AI provides 8-ch face detection and recognition, 8-ch video metadata, 16-ch SMD Plus and 16-ch perimeter protection, and with AI cameras users can find events quickly with AcuPick, recognise licence plates, count people and more. Hard disks are sold separately.

Key features

• 16 channels up to 32MP - Records up to 16 IP cameras at up to 32MP, with 512/512/512 Mbps bandwidth and decoding of up to 16 x 4MP@30 fps. Supports ONVIF and third-party cameras.
• AI by recorder - 8-ch face detection and recognition, 8-ch video metadata, 16-ch SMD Plus and 16-ch perimeter protection. SMD Plus secondary filtering reduces false alarms caused by leaves, rain and lighting changes.
• AcuPick and smart search - With compatible cameras, AcuPick quickly finds people and vehicles in recordings (up to 16 channels). The recorder also supports camera analytics such as ANPR, people counting and heat maps.
• Reliable storage - 2 SATA bays for disks of up to 20TB each and iSCSI support.
• Display and control - 1 x HDMI (4K), 1 x VGA outputs, local GUI and web interface, mobile viewing on iOS and Android and up to 16-channel simultaneous playback.
• Alarm connectivity - Alarm inputs/outputs 4/2, audio 1/1 (RCA), RS-232, RS-485 and USB 2 (1 x USB 2.0 front, 1 x USB 3.0 rear).

Specifications
