32 DAHUA NVR5032-EI DHI-NVR5032-EI

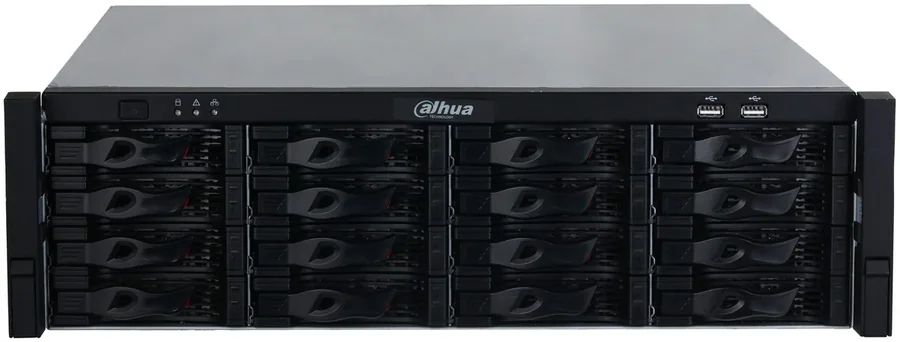

32-Channel NVR DAHUA NVR5032-EI

The DAHUA NVR5032-EI is a WizSense network video recorder (NVR) for 32 IP cameras in a 3U rack-mount chassis. It accepts cameras up to 32MP, handles 384/384/384 Mbps incoming/recording/outgoing bandwidth and decodes up to 32 x 1080p@30 fps, with Smart H.265+ and H.264+ compression to save storage.

The recorder offers 16 hot-swappable SATA bays for disks of up to 20TB each, RAID 0/1/5/6/10, 2 x HDMI (up to 4K), 2 x VGA outputs and 2 x RJ45 10/100/1000 Mbps. On-device AI provides 2-ch face detection and recognition, 4-ch perimeter protection and 8-ch SMD Plus, and with AI cameras users can find events quickly with AcuPick, recognise licence plates, count people and more. Hard disks are sold separately.

Key features

• 32 channels up to 32MP - Records up to 32 IP cameras at up to 32MP, with 384/384/384 Mbps bandwidth and decoding of up to 32 x 1080p@30 fps. Supports ONVIF and third-party cameras.
• AI by recorder - 2-ch face detection and recognition, 4-ch perimeter protection and 8-ch SMD Plus. SMD Plus secondary filtering reduces false alarms caused by leaves, rain and lighting changes.
• AcuPick and smart search - With compatible cameras, AcuPick quickly finds people and vehicles in recordings (up to 16 channels). The recorder also supports camera analytics such as ANPR, people counting and heat maps.
• Reliable storage - 16 hot-swappable SATA bays for disks of up to 20TB each, RAID 0/1/5/6/10, eSATA port and iSCSI support.
• Display and control - 2 x HDMI (up to 4K), 2 x VGA outputs, local GUI and web interface, mobile viewing on iOS and Android and up to 16-channel simultaneous playback.
• Alarm connectivity - Alarm inputs/outputs 16/8, audio 1/2 (RCA), RS-232, 2 x RS-485 and USB 4 (2 x USB 2.0 front, 2 x USB 3.0 rear).

Specifications
