64 DAHUA NVR5864-EI DHI-NVR5864-EI Color:black

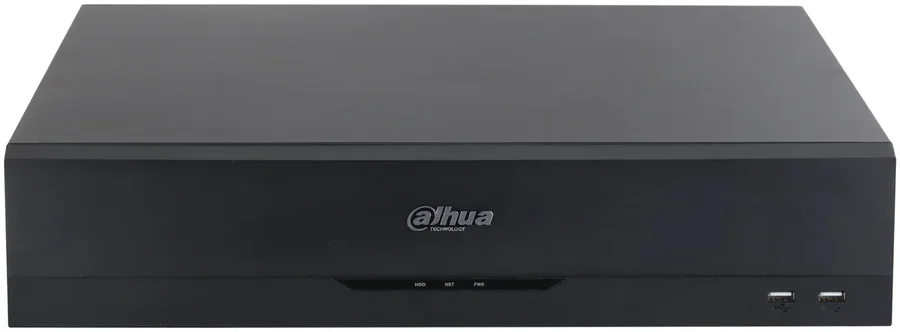

64-Channel NVR DAHUA NVR5864-EI

The DAHUA NVR5864-EI is a WizSense network video recorder (NVR) for 64 IP cameras in a 2U rack-mount chassis. It accepts cameras up to 32MP, handles 384/384/384 Mbps incoming/recording/outgoing bandwidth and decodes up to 32 x 1080p@30 fps, with Smart H.265+ and H.264+ compression to save storage.

The recorder offers 8 SATA bays for disks of up to 20TB each, RAID 0/1/5/6/10, 2 x HDMI (4K), 2 x VGA outputs and 2 x RJ45 10/100/1000 Mbps. On-device AI provides 2-ch face detection and recognition, 8-ch SMD Plus and 4-ch perimeter protection, and with AI cameras users can find events quickly with AcuPick, recognise licence plates, count people and more. Hard disks are sold separately.

Key features

• 64 channels up to 32MP - Records up to 64 IP cameras at up to 32MP, with 384/384/384 Mbps bandwidth and decoding of up to 32 x 1080p@30 fps. Supports ONVIF and third-party cameras.
• AI by recorder - 2-ch face detection and recognition, 8-ch SMD Plus and 4-ch perimeter protection. SMD Plus secondary filtering reduces false alarms caused by leaves, rain and lighting changes.
• AcuPick and smart search - With compatible cameras, AcuPick quickly finds people and vehicles in recordings (up to 32 channels). The recorder also supports camera analytics such as ANPR, people counting and heat maps.
• Reliable storage - 8 SATA bays for disks of up to 20TB each, RAID 0/1/5/6/10, eSATA port and iSCSI support.
• Display and control - 2 x HDMI (4K), 2 x VGA outputs, local GUI and web interface, mobile viewing on iOS and Android and up to 16-channel simultaneous playback.
• Alarm connectivity - Alarm inputs/outputs 16/8, audio 1/2 (RCA), RS-232, 2 x RS-485 and USB 4 (2 x USB 2.0 front, 2 x USB 3.0 rear).

Specifications
