Video Capture Card ATEN CAMLIVE+ UC3021 HDMI to USB-C UC3021 Color:black

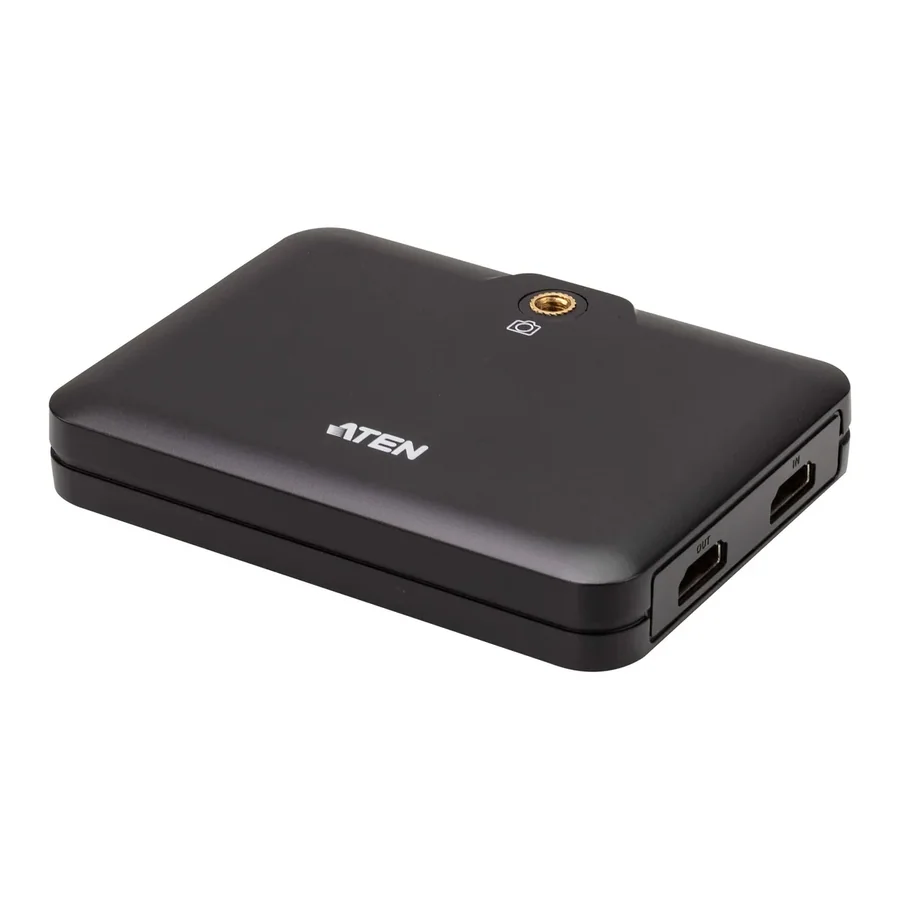

ATEN CAMLIVE+ UC3021 HDMI to USB-C Video Capture

The ATEN CAMLIVE+ UC3021 is an external UVC video capture device designed for live streaming and recording on the go. It receives unencrypted HDMI video of up to 4K from a professional camera or a game console and delivers it to a laptop, MacBook or Android smartphone over USB-C in 1080p60 for editing or livestreaming.

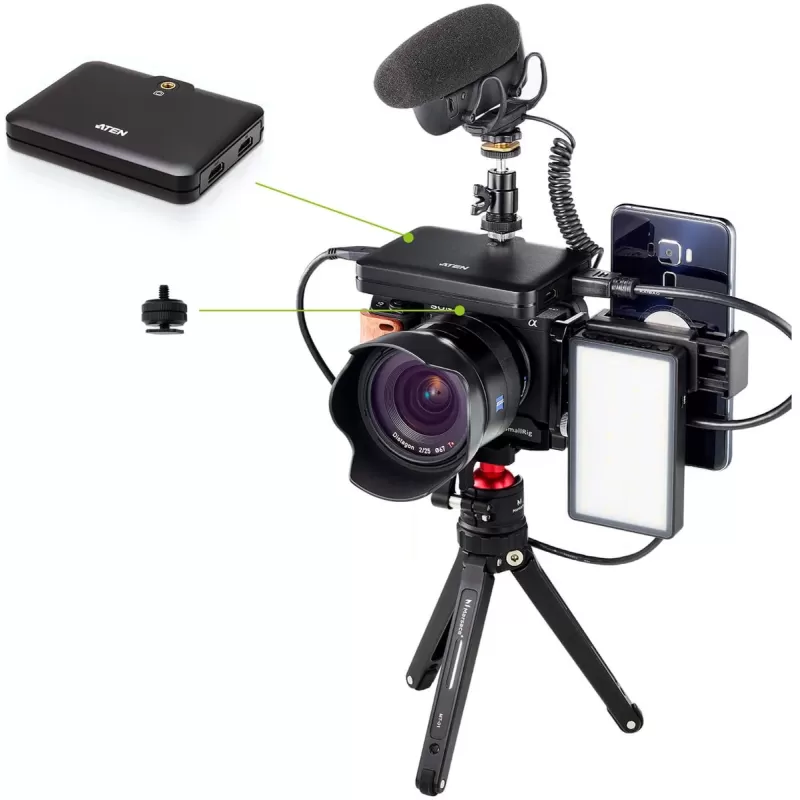

It works with popular software and platforms such as OBS, CameraFi, XSplit, YouTube, Facebook and Twitch without driver installation. An HDMI loop-out port provides latency-free preview on a display, and a second USB-C port passes up to 60W through to charge your laptop or phone while streaming. The included camera mount adapter lets you install it on top of a camera or on any mounting system.

Key features

• 4K input, 1080p60 capture - Accepts unencrypted HDMI 2.0 sources up to 2160p60 and outputs uncompressed 1080p60 video over a USB 3.1 connection.
• Driver-free UVC - The device appears as a camera and works right away with Windows, macOS and UVC-capable Android, and with OBS, CameraFi, XSplit and streaming services.

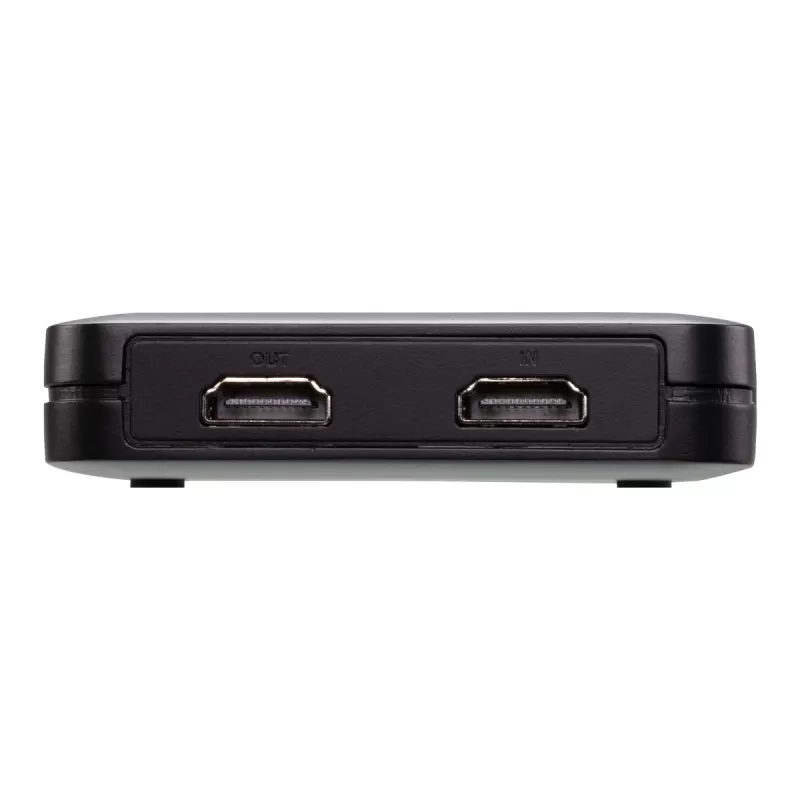

• HDMI loop-out - A second HDMI port passes 2160p60 video to a TV or monitor for real-time preview, even while gaming.

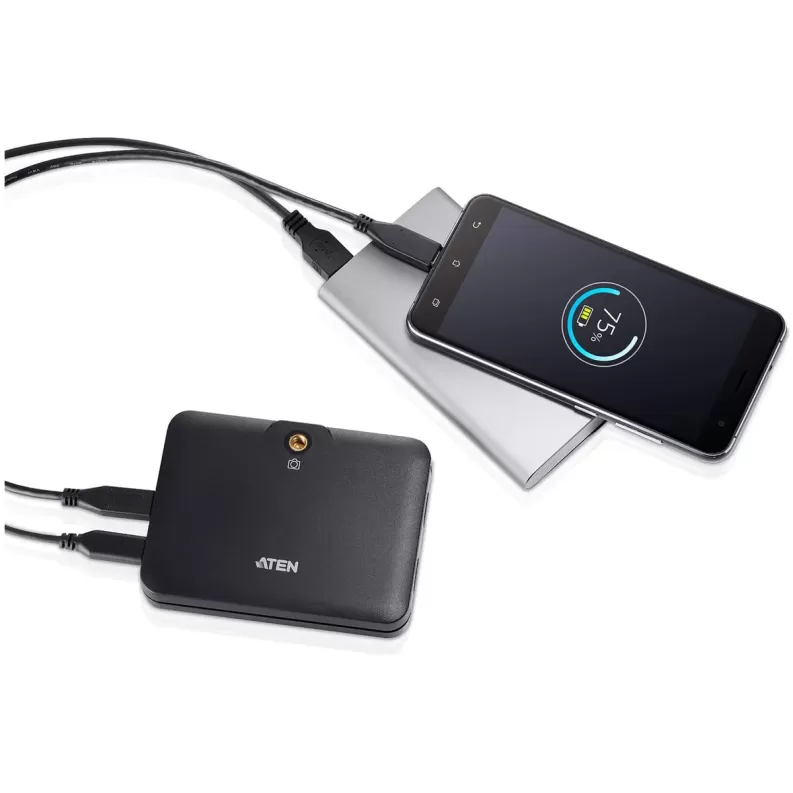

• Up to 60W charging - A USB-C port with USB PD 3.0 passes up to 60W to charge a laptop or phone during the stream. A separate USB-C power adapter is required.
• Light and portable - At 0.09 kg and with a camera mount adapter, it builds a compact streaming rig for outdoor shoots, events and vlogging.

Specifications

In the box

• ATEN CAMLIVE+ UC3021 video capture
• USB-C to USB-A cable
• USB-C to USB-C cable
• Camera mount adapter
• User instructions
