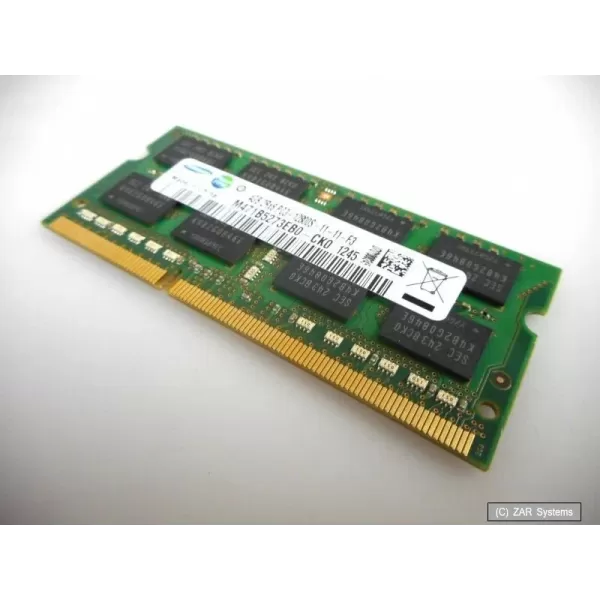

SODIMM memory Samsung M471B5273EB0-CK0 4GB DDR3 SO-DIMM 1600MHz Condition:Used

SODIMM Memory Samsung M471B5273EB0-CK0

The Samsung M471B5273EB0-CK0 is a 4GB unbuffered 204-pin SO-DIMM built with 16 Samsung 2Gb DDR3 chips (E-die) in two ranks (2Rx8). The CK0 code stands for DDR3-1600 with 11-11-11 timings. The module is used and has been tested in our lab.

This is memory for laptops, mini PCs and all-in-one computers with a DDR3 SO-DIMM slot. It is a good choice for replacing a failed module or adding 4GB to an existing laptop, for example to reach 8GB in dual channel.

It runs at the standard DDR3 voltage of 1.5V and is backward compatible with DDR3-1333 (9-9-9) and DDR3-1066 (7-7-7), so it also works in older computers with slower memory. The chips are in lead-free and halogen-free FBGA packages and the module is RoHS compliant.

Key features

• DDR3-1600 with CL11 - Samsung speed code K0 means 1600Mbps with 11-11-11 timings, the PC3-12800S standard, the top common speed in DDR3 laptops.
• Backward compatible - According to Samsung, DDR3-1600 is backward compatible with DDR3-1333 (9-9-9) and DDR3-1066 (7-7-7), so the module also works in laptops that support lower speeds.
• Samsung 2Gb E-die chips - The module uses 16 Samsung K4B2G0846E chips (256Mx8) in a 512Mx64 organization with two ranks.
• SO-DIMM for laptops - An unbuffered 204-pin Small Outline module, 67.6 mm long and 30 mm high, intended as main memory in laptops and compact systems.
• Full DDR3 feature set - 8 internal banks, programmable CAS latency, Burst Length 8 or Burst Chop 4, bi-directional differential data strobe and On Die Termination for clean signalling.
• Environment-friendly build - 78FBGA packages that are lead-free and halogen-free, RoHS compliant.
