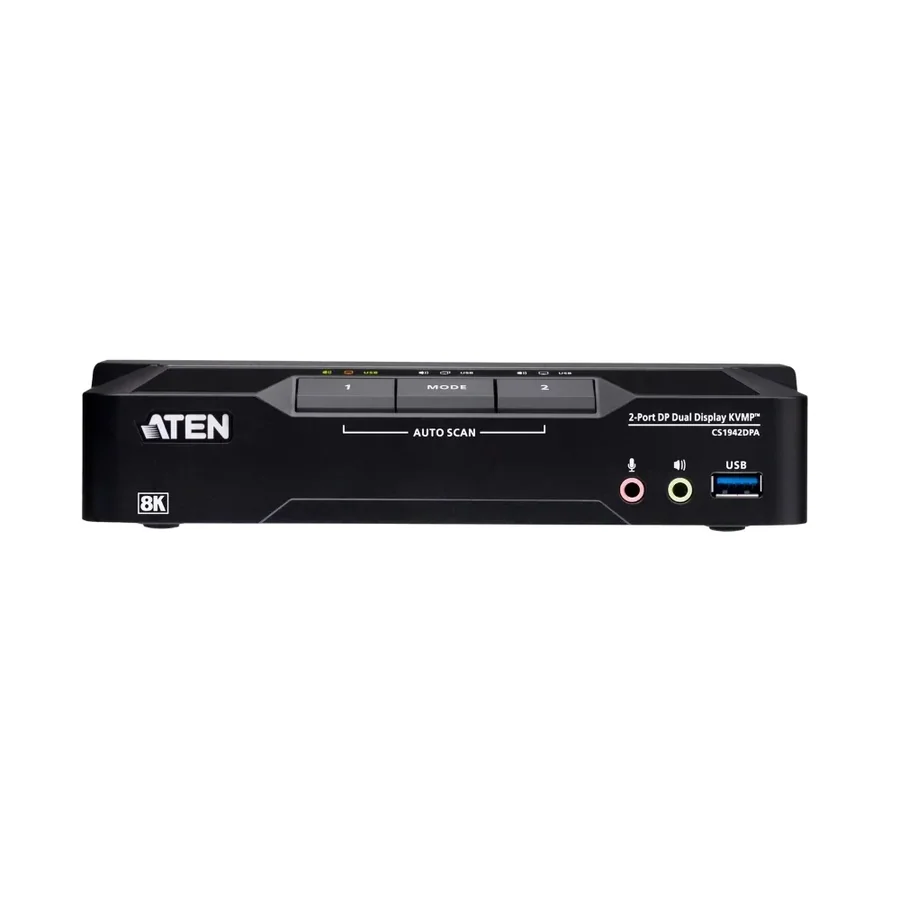

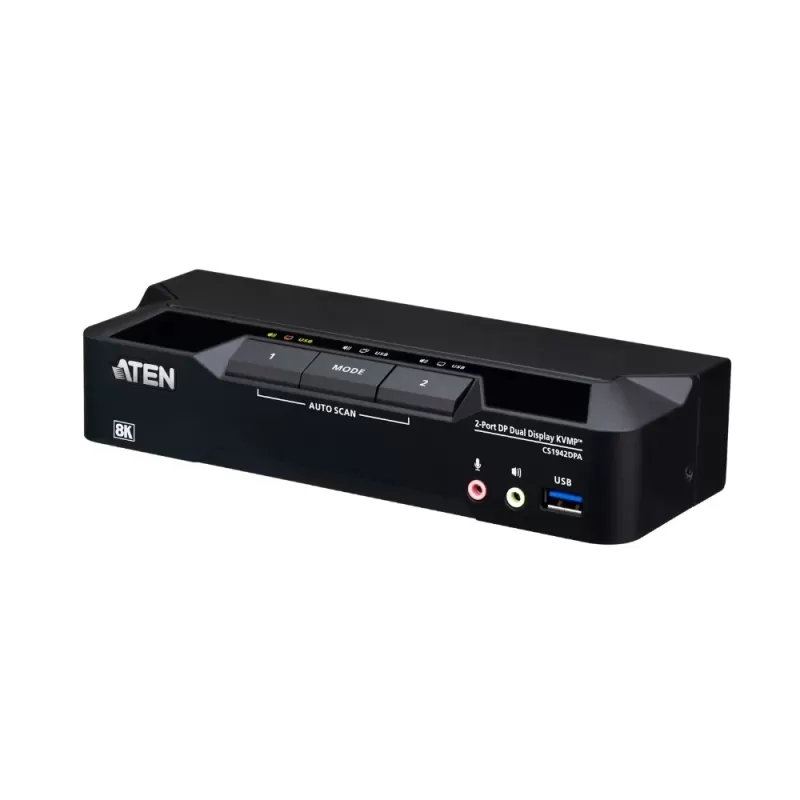

| Revew | ATEN CS1942DPA KVM SwitchThe ATEN CS1942DPA is a KVMP switch that lets you control two DisplayPort computers across two displays with a single keyboard and mouse. It supports resolutions of up to 7680x4320@60Hz, 5120x2880@60Hz and 4096x2160@240Hz, HDR10+ and ultra-wide 21:9 and 32:9 displays. The switch includes a two-port USB 3.0 hub for sharing peripherals, audio connections for each computer, and port switching via pushbuttons, hotkeys, mouse, RS-232 commands or a remote port selector. DisplayPort, USB and audio cables and the power adapter are in the box, so nothing else needs to be bought.
Key features- Two computers, two displays, one desk - One USB keyboard and mouse and two shared displays control two DisplayPort computers, keeping the workspace tidy.
- Up to 8K and 240Hz - Supports 7680x4320@60Hz, 5120x2880@60Hz and 4096x2160@240Hz, as well as 5120x1440 at 120/144/240Hz. DisplayPort 1.4, HDCP and HDR10+ compliant.
- Built-in USB 3.0 hub - Two USB 3.1 Gen 1 ports (one front, one rear) with up to 5Gbps for sharing flash drives, printers and scanners between the computers.
- Flexible switching - Switch computers with the front pushbuttons, the remote port selector, hotkeys, the mouse wheel or RS-232 commands. KVM, USB and audio focus can be switched independently, and Auto Scan cycles between computers every 1 to 99 seconds.
- Expand to four displays - Daisy-chaining two CS1942DPA switches through their DCC ports creates a two-computer, four-display workstation controlled with one keyboard and mouse.
- Quick setup with all cables - The box has 4 DisplayPort cables, 2 USB 3.0 cables, audio cables, a remote port selector and a power adapter. Works with Windows, macOS and Linux and supports hot-plugging.

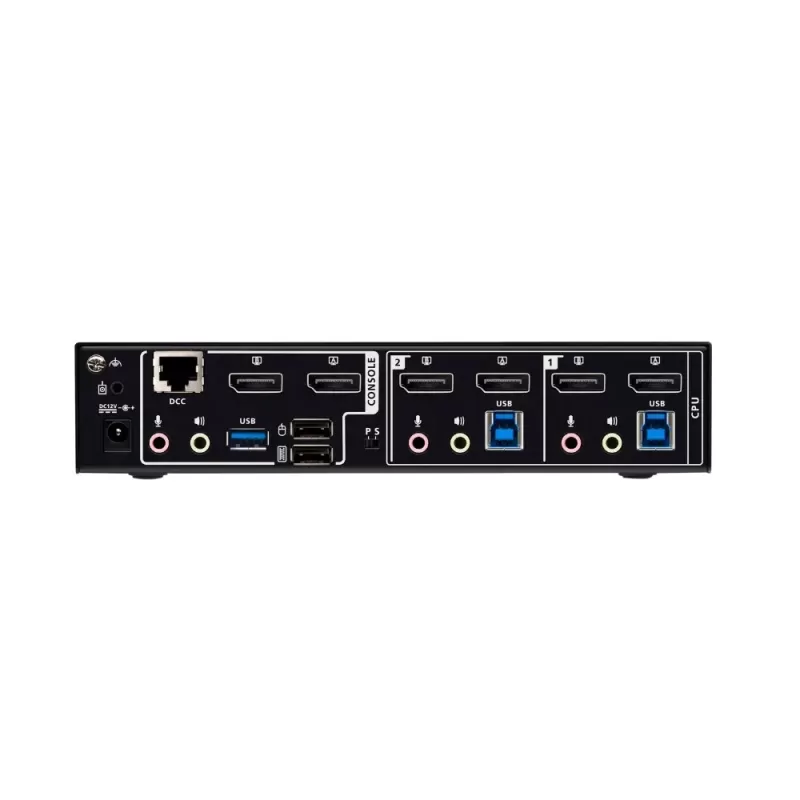

Specifications| Manufacturer | ATEN | | Model | CS1942DPA | | Computer connections | 2 | | Displays | 2 (Dual-Display) | | Max resolution | 7680x4320@60Hz, 5120x2880@60Hz, 4096x2160@240Hz | | Video standards | DisplayPort 1.4, HDCP, HDR10+, MST, DP++ | | Computer ports | 4 x DisplayPort, 2 x USB 3.1 Gen 1 Type-B, 3.5 mm audio jacks | | Console ports | 2 x DisplayPort, 2 x USB Type-A, 3.5 mm audio jacks (front and rear) | | USB hub | 2 x USB 3.1 Gen 1 Type-A, up to 5Gbps | | Port selection | Pushbuttons, remote port selector, hotkeys, mouse, RS-232 | | Auto Scan interval | 1-99 seconds | | Daisy chain | DCC port (RJ-45) | | Supported OS | Windows, macOS, Linux | | Power consumption | DC 12V, 3.29W | | Operating temperature | 0-50°C | | Housing | Metal | | Dimensions | 200 x 71.8 x 43 mm | | Weight | 0.47 kg |

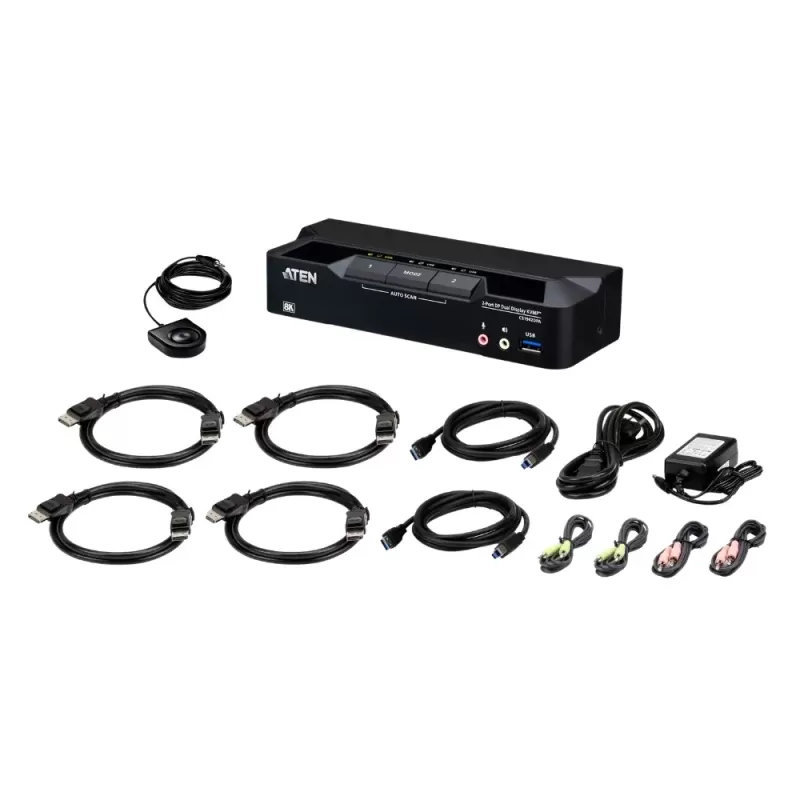

In the box- ATEN CS1942DPA KVMP switch
- 4 DisplayPort cables (1.5 m)
- 2 USB 3.0 Type-A to Type-B cables (1.8 m)
- 2 microphone cables (1.8 m)
- 2 speaker cables (1.8 m)
- Remote port selector
- Power adapter
- User instructions
|
