Split view ATEN VS184A 4-Port 4K HDMI Splitter VS184A Color:black

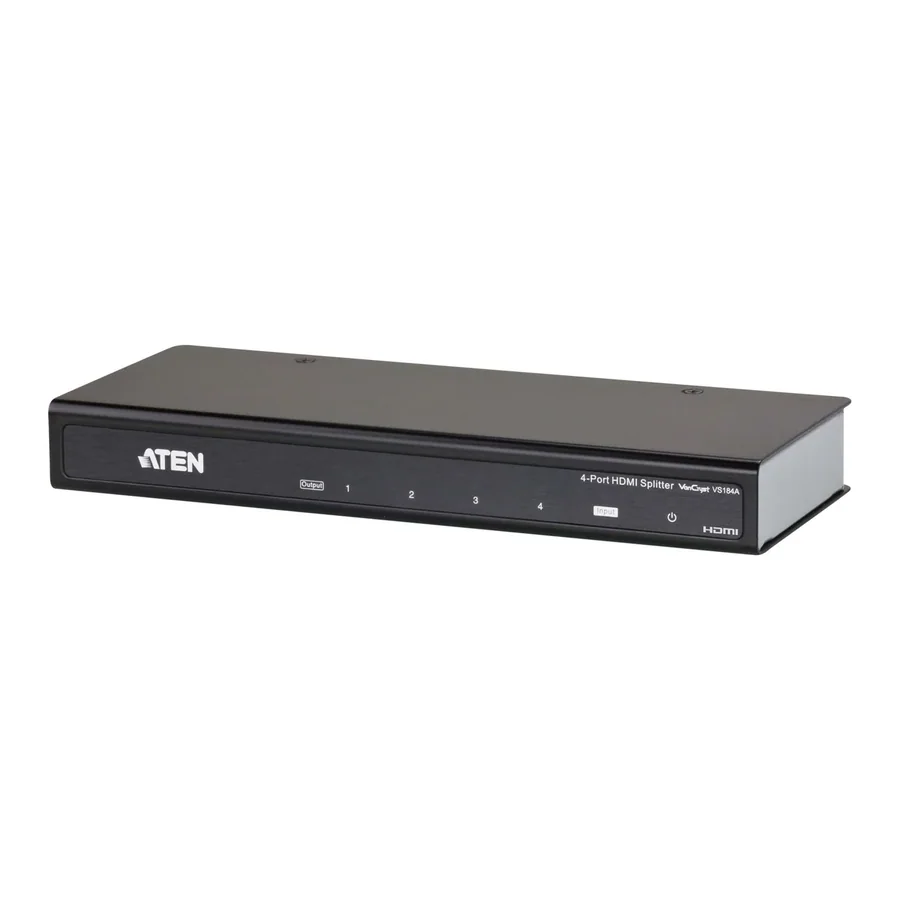

ATEN VS184A 4-Port 4K HDMI Splitter

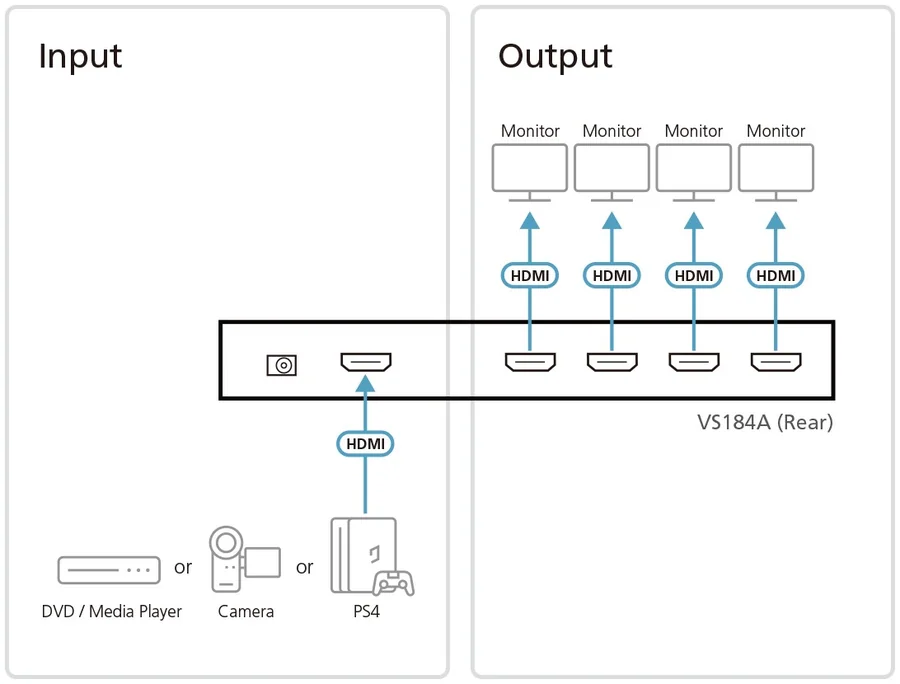

The ATEN VS184A sends content from one HDMI source, such as a PC, laptop or media player, to four HDMI displays at the same time. It supports resolutions of up to 3840 x 2160 at 30Hz 4:4:4 or 60Hz 4:2:0, as well as HDMI 3D, Deep Color and HDCP.

The source cable can be up to 3 m long and each display cable up to 15 m (24AWG). The splitter is plug and play, built in a metal housing and suits meeting rooms, classrooms, retail stores and display systems.

Key features

• One source, four displays - One HDMI input and four HDMI outputs showing the same picture on all displays.
• 4K Ultra HD - Up to 4096 x 2160 / 3840 x 2160 at 60Hz (4:2:0) or 30Hz (4:4:4), with a data rate of up to 10.2Gbps.
• Full HDMI compatibility - HDMI 3D, Deep Color and HDCP support, so it also works with protected content.
• High quality audio - Passes Dolby TrueHD and DTS-HD Master Audio over HDMI.
• Long cables - Up to 3 m from the source and up to 15 m to each display at 4K, or up to 20 m with the ATEN 2L-7D20H cable.
• Plug and Play - No software or configuration required, in a metal housing.

Specifications

In the box

• VS184A splitter
• Power adapter
• HDMI cable (1.8 m)
• User instructions
