Adapter Riser PCI-E 1X to 16X Board Only PCE164P-N03 VER 006C

Riser PCI-E 1X to 16X Board Only

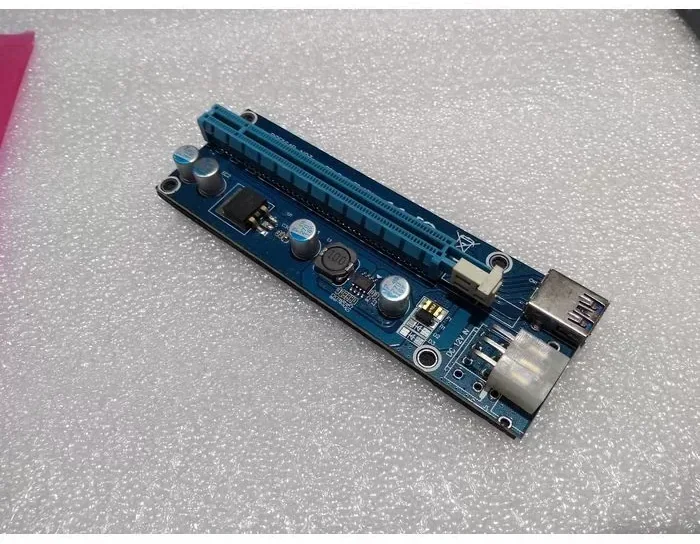

This is the PCI-E x16 board of a PCE164P-N03 VER 006C riser kit, sold on its own (board only). It is suitable for replacing the board of an existing riser kit or expanding a mining rig that already has x1 adapters and cables. The graphics card is installed in the x16 slot on the board, and the signal comes from a PCI-E x1 slot on the motherboard through an x1 adapter and a USB 3.0 cable.

The board takes 12V directly from the power supply through a 6-pin connector, so the graphics card's slot power does not depend on the motherboard. Solid capacitors stabilize the power, and a retention clip on the slot keeps the card in place.

Key features

• x16 board only - The product includes the riser board only. To connect it to the motherboard you need a PCI-E x1 adapter and a USB 3.0 cable from a compatible riser kit.
• 6-pin power input - A 6-pin connector feeds the x16 slot directly from the power supply and reduces the load on the motherboard with multiple graphics cards.
• Solid capacitors - Solid capacitors stabilize the power supply to the graphics card.
• Retention clip - The clip makes it easier to install and remove the graphics card and stops it from falling out of the slot.
