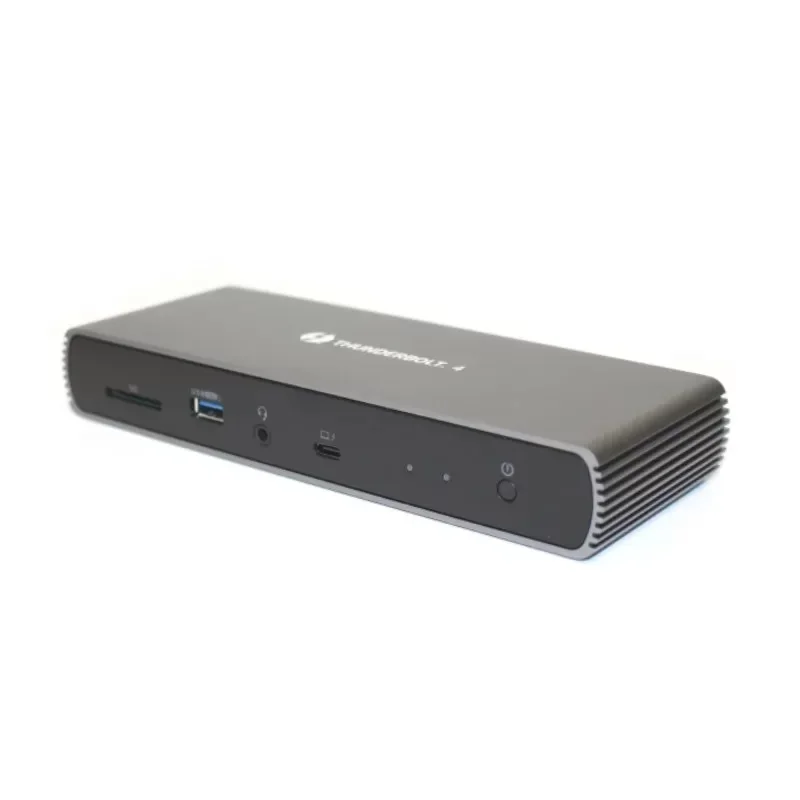

Dock Station Gold Touch Thunderbolt 4 USB4 Dock Pro UDS-THN4

תחנת העגינה Thunderbolt 4 היא פתרון מתקדם המיועד לסביבות עבודה מקצועיות ולשיפור
פרודוקטיביות מקסימלית. המוצר מבוסס בקר Intel Thunderbolt 4 ומציע תאימות רחבה גם
ל־Thunderbolt 3, USB4 ו־USB 2.0, עם תמיכה מלאה במערכות Windows ו-Mac.
התחנה מספקת טעינה עוצמתית עד 96W למחשב הנייד, לצד חיבור מהיר במיוחד במהירות
של עד ‎40Gbps‎, תמיכה בתצוגה באיכות גבוהה עד ‎8K‎, חיבור רשת מהיר ופתרונות קישוריות
מגוונים ועוד, כל אלו הופכים אותה לבחירה אידיאלית עבור אנשי מקצוע ויוצרים המחפשים
ביצועים גבוהים.

Thunderbolt™ 4 – USB4 Dock Pro

Overview:

The Thunderbolt™ 4 / USB4 Dock Pro Aluminum Casing is a pro-level docking station
designed for demanding high-productivity workflow needs based on Intel Thunderbolt 4
Goshen Ridge controller. It is not only for Thunderbolt™ 4 users, this versatile device is
backwards compatible with Thunderbolt™ 3, USB 2.0, VESA Alternate mode (MFDP)
and USB4, also working on both Windows and Mac systems.

Maximize Productivity with Thunderbolt 4 Technology

Harnessing the power of Thunderbolt 4, this docking station delivers dynamic PD up to 96W,
ensuring efficient laptop charging while supporting high-speed data transfers up to 40Gbps.
Its robust video output capabilities include single-display resolutions up to 8K30Hz via HDMI
2.1, making it ideal for professionals requiring seamless multitasking and enhanced productivity.

Comprehensive Connectivity with Customization Options

The docking station is equipped with diverse ports, including 3× USB-A 10G, 1× USB-A 10G with
BC1.2 (5V/1.5A) and Apple Charge 2.1A, 2x Thunderbolt4/ USB-C port , Hi-Res audio for headsets,
and a 2.5GbE Ethernet port, ensuring maximum connectivity and efficiency. Additionally, its support
for professional OEM and ODM services enables tailored solutions to meet specific customer needs.

Features

• The Thunderbolt 4/USB-C upstream port supplies 96W of laptop power, and two
  Thunderbolt 4/USB-C downstream ports
• The HDMI with DSC pass through supports up to 4K120HZ/8K30Hz resolution as
  specified in HDMI 2.1
• Supports up to two 4K-resolution displays or one 8K-resolution displays for content extension
• Conveniently connect USB devices with 3× USB-A 10G and 2× USB-C 10G ports
• Built-in 2.5Gbe Ethernet enhance networking stability
• The audio combo jack to headphone for conferencing or video-watching applications

Connection Technology: HDMI, USB2, USB3, USB4, Thunderbolt 3, Thunderbolt 4, USB-C

Data Port: USB-A, USB-C

Hubs by Connection to Host: USB-C

Input port: USB-A, USB-C

Video Output: USB-C, HDMI

Ethernet Port: 2.5Gbps

Max Display: 2

Max Resolution: 2K@60 , 4K@30 , 4K@60 , 4K@120 , 4K@144 , 8K@30

Max Power Output: 96W

Power Mode: Bus-Power, Self-Power, Dual-Power

Power Delivery: Yes

Audio in: Yes

SD Card Reader: Yes

Ports for Charging: USB-C

Package Contents:

• Thunderbolt 4 / USB4 Dock Pro x1
• Thunderbolt Cable x1
• Power Adapter x1
• User Manual x1

System Requirements:

Supported Operating Systems
– Windows 10
– Mac OS Big Sur 11.2 or later
